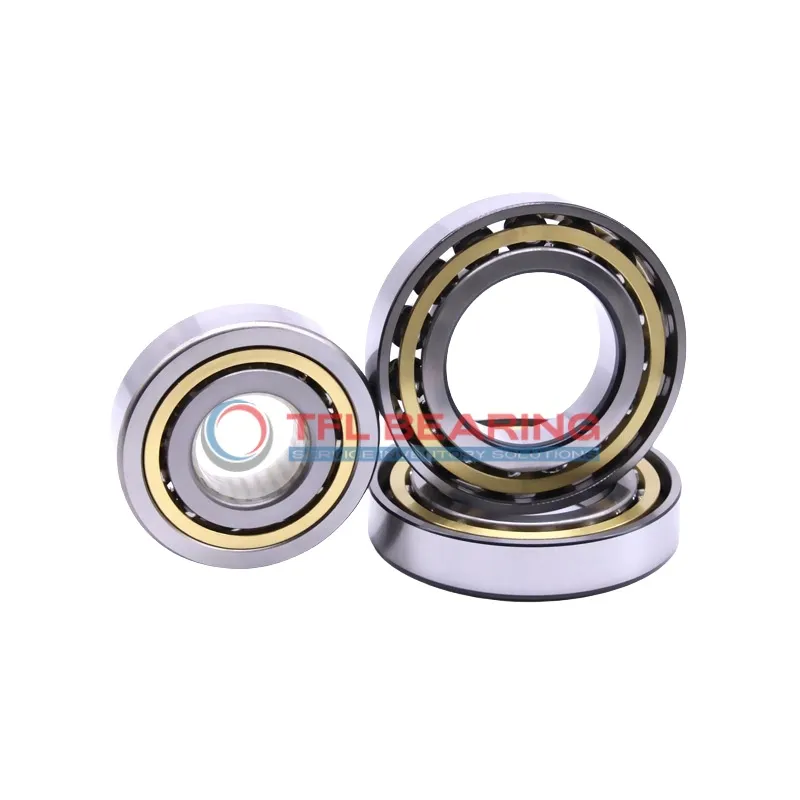

The 7205 BEY is a single-row angular contact ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads.
This bearing supports dynamic radial loads up to 3330 lbf and spins smoothly at speeds up to 15,000 RPM. The brass cage enhances durability while reducing friction during operation.
Its open design simplifies lubrication and maintenance. With a compact width of 15mm, it fits neatly into tight spaces without compromising performance.
Ideal for applications like pumps or gearboxes where angular loads are present. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial use. Weighing just 0.13kg, it balances strength and lightweight design.
"*" indicates required fields
How Does 7205 BEY Bearing Reduce Friction?
7205 BEY Bearing features a 40° contact angle, optimised for handling combined radial and axial loads smoothly.
Its chrome steel rings and balls work together to minimise friction, ensuring efficient operation.
The brass cage maintains proper ball alignment, reducing wear and extending the bearing’s lifespan.
With a maximum speed of 15,000 rpm, it delivers reliable performance in high-speed applications.
Performance Features of 7205 BEY Bearing
7205 BEY Bearing is precision-engineered with chrome steel components for durability and consistent performance.
The single row design and open seal type allow for easy lubrication and maintenance.
Its dynamic radial load capacity of 3330 lbf ensures it can handle demanding operational conditions.
Operating within a temperature range of -30° to 110°C, it performs reliably in various environments.
Why Choose 7205 BEY Bearing for Precision Tasks?
7205 BEY Bearing meets P6 (ABEC-3) tolerance standards, making it suitable for precision applications.
The brass cage design reduces vibration and noise, ideal for sensitive equipment.
With its 25 mm bore diameter and 52 mm outer diameter, it fits perfectly in compact spaces.
The bearing’s balanced design ensures smooth rotation even at high speeds.
Industrial Uses of 7205 BEY Bearing
7205 BEY Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even at higher speeds, making it suitable for precision equipment.
Where Is 7205 BEY Bearing Used?
You’ll often find 7205 BEY Bearing in automotive applications like wheel hubs and transmissions, thanks to its 40° contact angle for better load distribution. Its metric sizing and P6 tolerance make it a reliable choice for European and Asian vehicles.
Built for Heavy-Duty Use: 7205 BEY Bearing
7205 BEY Bearing works well in conveyor systems, where its chrome steel construction resists wear under constant motion. The open design allows for easy lubrication, extending its lifespan in demanding environments.
Automotive vs Aerospace: Applications of 7205 BEY Bearing
In automotive systems, 7205 BEY Bearing supports high-speed rotations in gearboxes, while its precision makes it useful in aerospace actuators. The temperature range of -30° to 110°C ensures performance in varied conditions.
Perfect Fit for Automation: 7205 BEY Bearing
7205 BEY Bearing is ideal for robotic arms, where its single-row design provides stability during repetitive movements. The lubricated setup reduces friction, ensuring consistent performance in automated production lines.
