Single Row Angular Contact Ball Bearings (General) 7205 BEP
Single Row Angular Contact Ball Bearings (General) 7205 BEP

Single Row Angular Contact Ball Bearings (General) 7205 BEP

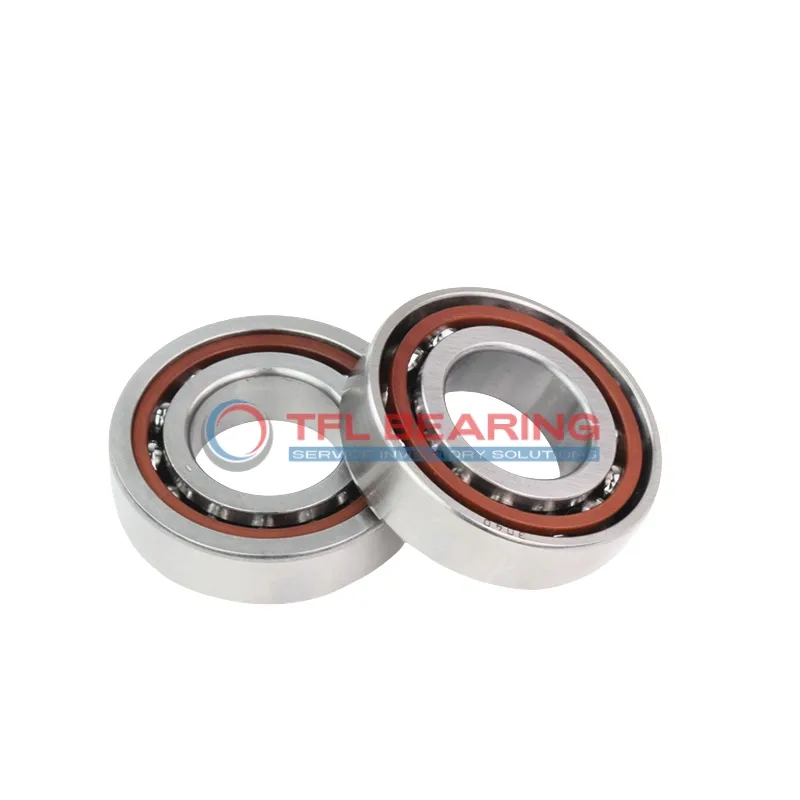

The 7205 BEP is a single-row angular contact ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, spinning smoothly at up to 15,000 RPM.

The open design allows for easy lubrication, while the nylon cage reduces friction and noise during operation. With a P6 tolerance class, it offers reliable precision for various applications.

This bearing suits machinery requiring high-speed performance, such as pumps or small electric motors. Its compact 15mm width and 0.13kg weight make it a practical choice for space-limited setups.

Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for hassle-free replacements. Ideal for moderate loads and temperatures ranging from -30°C to 110°C.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7205 BEP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 15 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 35.85 mm
  • External Diameter On Inner Ring (Small Side Face) 30.87 mm
  • Internal Diameter On Outer Ring 41.57 mm
  • Chamfer Dimension 1 mm
  • Distance Pressure Point (a) 24 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3330 lbf
  • Static Radial Load 2092 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.13 kg
  • Price($) 11.79

Features

How Is 7205 BEP Bearing Engineered for Reliability?

7205 BEP Bearing features a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 3330 lbf.

The nylon cage reduces friction and noise, making it suitable for high-speed operations up to 15,000 rpm.
With a P6 tolerance class, 7205 BEP Bearing ensures precision and consistent performance.

Designed for temperatures from -30° to 110°C, it performs reliably in varied environments.
The open seal type allows easy lubrication, extending maintenance intervals.

Application

Industrial Uses of 7205 BEP Bearing
7205 BEP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 7205 BEP Bearing is found in wheel hubs and transmissions, providing smooth performance under high-speed rotations. Its P6 tolerance class ensures precise alignment, crucial for vehicle safety and efficiency.

For automation systems, 7205 BEP Bearing supports robotic arms and conveyor belts, thanks to its nylon cage reducing friction and noise. The 40° contact angle offers stability during rapid directional changes.

In household appliances like washing machines, 7205 BEP Bearing’s chrome steel construction resists wear from constant use. The lubricated design ensures quiet operation, making it ideal for domestic environments.

Medical devices such as dental drills benefit from 7205 BEP Bearing’s high-speed capabilities and reliable load handling. Its compact size fits neatly into precision instruments without compromising performance.
