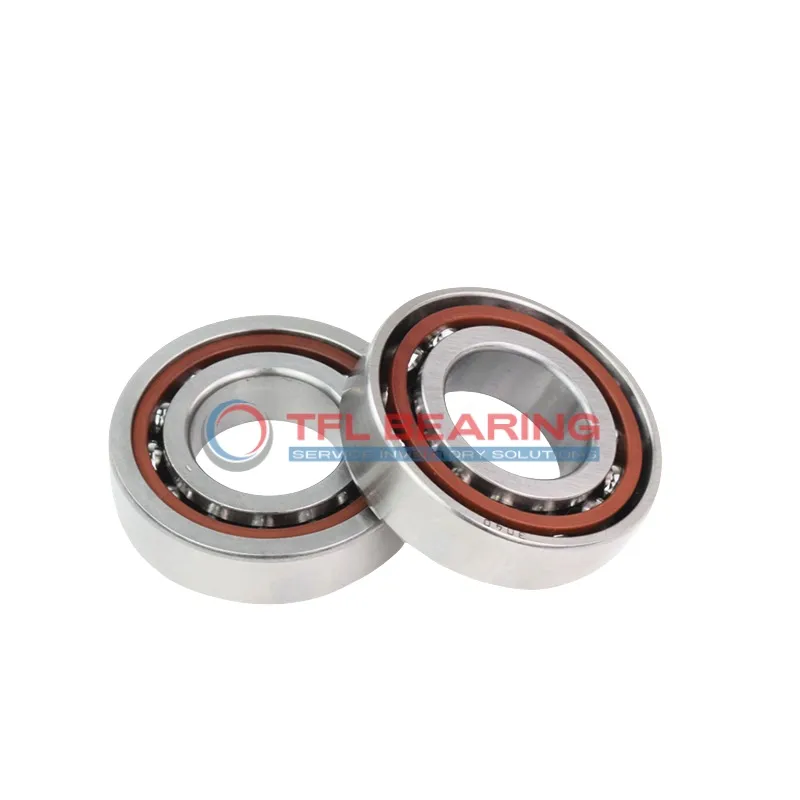

The 7205 BECBPH is a single-row angular contact ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It features a 40° contact angle, handling both radial and axial loads efficiently.
With a dynamic radial load capacity of 3510 lbf, it spins smoothly at speeds up to 17000 RPM. The open design and nylon cage ensure low friction and easy maintenance.
This bearing suits applications requiring precise angular contact, such as pumps or small gearboxes. Its P6 tolerance class (ABEC-3) offers reliable performance for industrial use.
Weighing just 0.13kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a practical choice for replacements, interchangeable with SKF bearings.
"*" indicates required fields
Performance Features of 7205 BECBPH Bearing
7205 BECBPH Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The nylon cage in 7205 BECBPH Bearing reduces friction and noise, making it suitable for high-speed operations.
With a maximum speed of 17,000 rpm, it delivers reliable performance in various industrial settings.
7205 BECBPH Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class ensures precision and consistency in performance.
Designed for easy installation, 7205 BECBPH Bearing reduces maintenance requirements.
The lubricated design further enhances its longevity and smooth operation.
Industrial Uses of 7205 BECBPH Bearing
7205 BECBPH Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations up to 17,000 rpm.
In automotive applications, 7205 BECBPH Bearing fits well in gearboxes and wheel hubs, offering reliable performance under angular loads. Its metric dimensions ensure compatibility with a variety of vehicle designs.
For robotics, 7205 BECBPH Bearing provides smooth motion in robotic arms and joints, thanks to its precise P6 tolerance class. The chrome steel construction ensures durability in continuous operation.
Where Is 7205 BECBPH Bearing Used?
You’ll find 7205 BECBPH Bearing in conveyor systems, where its ability to manage angular loads keeps things running smoothly. The lubricated design reduces maintenance needs in dusty environments.
In household appliances like washing machines, 7205 BECBPH Bearing supports rotating parts with minimal noise. Its nylon cage helps absorb vibrations for quieter operation.
Built for Heavy-Duty Use: 7205 BECBPH Bearing
7205 BECBPH Bearing excels in industrial fans, handling high speeds and moderate loads with ease. The chrome steel rings and balls ensure long service life even in demanding conditions.
For precision equipment like 3D printers, 7205 BECBPH Bearing offers accurate positioning due to its ABEC-3 tolerance. The lightweight design also helps reduce moving part inertia.
Automotive vs Aerospace: Applications of 7205 BECBPH Bearing
In cars, 7205 BECBPH Bearing is often used in transmission systems, where its angular contact design manages shifting forces. The temperature range suits typical engine bay conditions.
For aerospace applications, 7205 BECBPH Bearing’s lightweight construction and high-speed capability make it suitable for auxiliary systems. However, it’s more commonly found in ground support equipment than in flight components.
