Single Row Angular Contact Ball Bearings (General) 7205 BE-2RZP
Single Row Angular Contact Ball Bearings (General) 7205 BE-2RZP

Single Row Angular Contact Ball Bearings (General) 7205 BE-2RZP

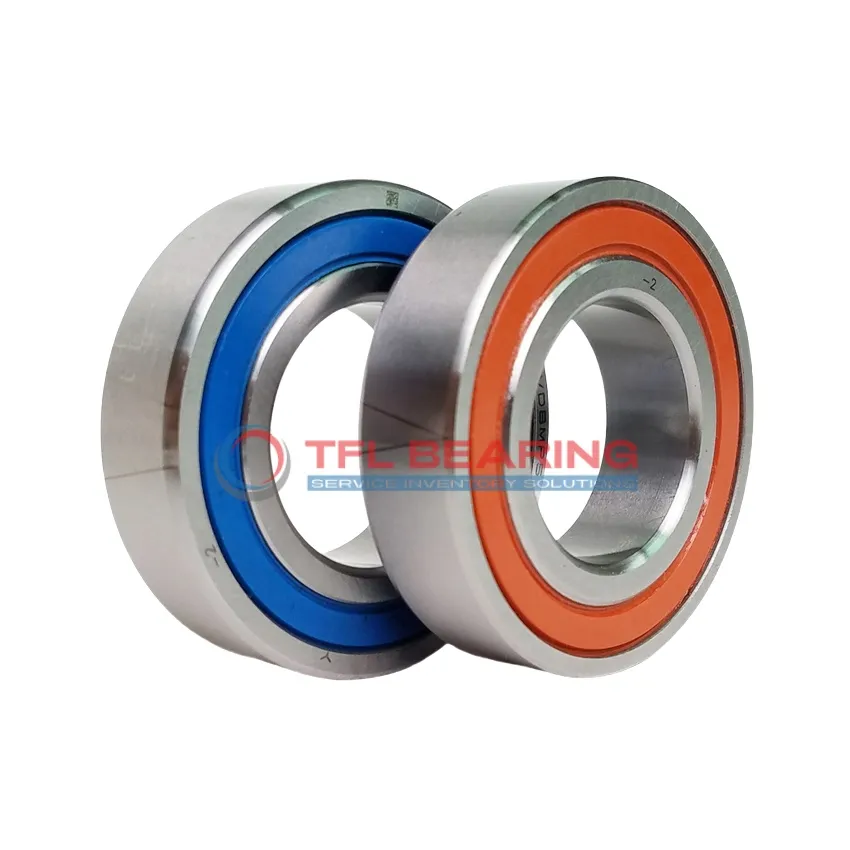

The 7205 BE-2RZP is a single-row angular contact ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3330 lbf and operates smoothly at speeds up to 12,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The 40° contact angle helps it handle combined radial and axial loads effectively.

This bearing suits applications like electric motors or pumps where precise alignment is needed. With a temperature range of -30°C to 110°C, it performs reliably in various environments.

Weighing just 0.13kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7205 BE-2RZP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 15 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 35.85 mm
  • External Diameter On Inner Ring (Small Side Face) 30.87 mm
  • Chamfer Dimension 1 mm
  • Distance Pressure Point (a) 24 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3330 lbf
  • Static Radial Load 2092 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.13 kg
  • Price($) 14.39

Features

Why Choose 7205 BE-2RZP Bearing for Precision Tasks?

7205 BE-2RZP Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and smooth operation under dynamic radial loads up to 3330 lbf.
The sealed design and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 12,000 rpm, it offers reliable performance in high-speed applications.

Application

Industrial Uses of 7205 BE-2RZP Bearing
7205 BE-2RZP Bearing is commonly used in machine tools, where its 40° contact angle helps manage combined radial and axial loads efficiently. The sealed design keeps contaminants out, ensuring longer service life in dusty workshop conditions.

In automotive applications, 7205 BE-2RZP Bearing works well in wheel hubs and transmissions due to its nylon cage reducing friction at high speeds. Its metric sizing makes it a straightforward replacement for many European car models.

For robotics, 7205 BE-2RZP Bearing’s P6 tolerance provides the precision needed for smooth joint movements in articulated arms. The lubricated seals maintain performance without frequent maintenance.

Where Is 7205 BE-2RZP Bearing Used?
You’ll find 7205 BE-2RZP Bearing in conveyor systems, where its angular contact design handles shifting loads during material transport. The chrome steel construction withstands continuous operation in manufacturing plants.

In household appliances like washing machines, 7205 BE-2RZP Bearing supports spinning drums reliably. The sealed protection prevents detergent ingress, making it a durable choice for daily use.

Built for Heavy-Duty Use: 7205 BE-2RZP Bearing
7205 BE-2RZP Bearing excels in pump systems, where its 12,000 rpm rating and lubricated seals suit demanding fluid transfer tasks. The chrome steel balls resist wear even with constant directional changes.

For small electric motors, 7205 BE-2RZP Bearing’s compact 25mm bore fits neatly into space-constrained designs. The nylon cage dampens vibration, contributing to quieter operation in fans and power tools.
