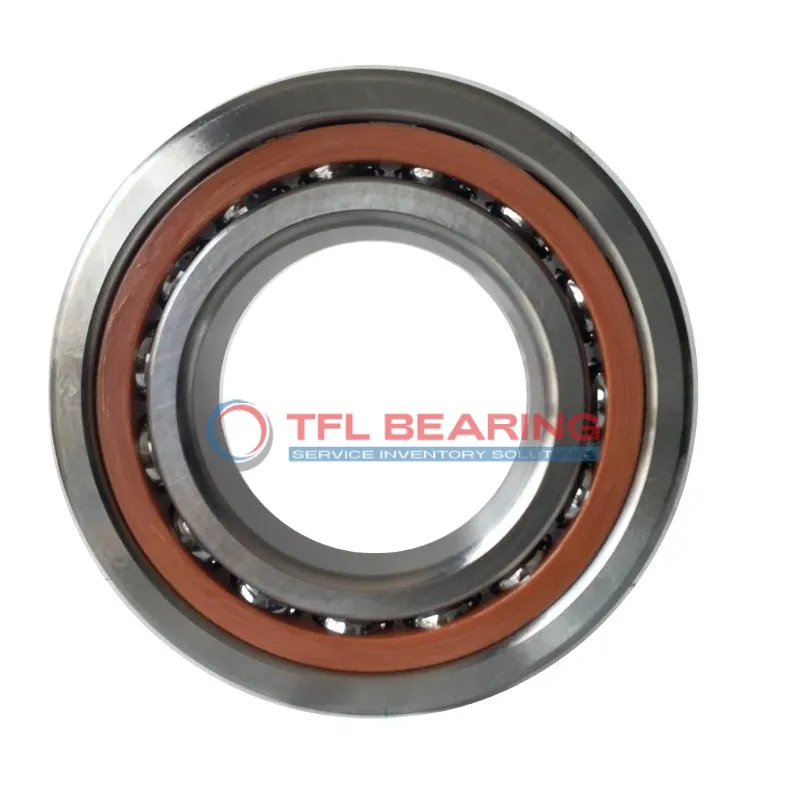

The 7204 BEGAP is a single-row angular contact ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 3218 lbf and operates smoothly at speeds up to 19,000 RPM.
With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design and nylon cage ensure low friction and easy maintenance.
This bearing is interchangeable with SKF models, making it a versatile replacement option. It performs well in temperatures ranging from -30°C to 110°C.
Ideal for applications like pumps or small gearboxes where precision and durability are needed. Weighing just 0.11kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.
"*" indicates required fields
How Does 7204 BEGAP Bearing Reduce Friction?
7204 BEGAP Bearing features a 40° contact angle, optimising load distribution and minimising friction.
The chrome steel construction ensures smooth operation, even at high speeds up to 19,000 rpm.
Its nylon cage reduces vibration and noise, making it suitable for precision applications.
With a dynamic radial load capacity of 3218 lbf, it balances performance and durability.
Engineered for Precision: 7204 BEGAP Bearing
7204 BEGAP Bearing is designed with a single-row construction, ideal for angular contact loads.
The P6 tolerance class ensures high precision, meeting ABEC-3 standards for consistent performance.
Its open seal type allows for easy lubrication, maintaining smooth operation over time.
The 1 mm chamfer dimension simplifies installation, reducing setup time.
Material Composition of 7204 BEGAP Bearing
7204 BEGAP Bearing uses chrome steel for both rings and balls, enhancing durability and wear resistance.
The nylon cage material reduces weight and friction, improving efficiency in high-speed applications.
With a temperature range of -30° to 110°C, it performs reliably in various environments.
Its compliant RoHS and REACH status ensures it meets international environmental standards.
Why Choose 7204 BEGAP Bearing for Precision Tasks?
7204 BEGAP Bearing’s precise P6 tolerance class makes it ideal for high-accuracy applications.
The 40° contact angle efficiently handles combined radial and axial loads.
Its lightweight nylon cage minimises inertia, enhancing performance at speeds up to 19,000 rpm.
The open design allows for easy maintenance, ensuring long-term reliability.
Reliability Factors of 7204 BEGAP Bearing
7204 BEGAP Bearing’s chrome steel construction provides excellent resistance to wear and fatigue.
With a static radial load capacity of 1834 lbf, it ensures stability under heavy loads.
The lubricated design reduces friction, extending the bearing’s service life.
Its compact 20 mm×47 mm×14 mm size makes it suitable for space-constrained applications.
Industrial Uses of 7204 BEGAP Bearing
7204 BEGAP Bearing is commonly used in machine tools, where its angular contact design helps manage both radial and axial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
In automotive applications, 7204 BEGAP Bearing fits well in wheel hubs and transmissions, thanks to its 40° contact angle. The chrome steel construction ensures durability even under high-speed rotations.
For automation systems, 7204 BEGAP Bearing is a reliable choice for robotic arms and conveyor belts. Its nylon cage reduces friction, making it suitable for smooth, continuous operations.
Where Is 7204 BEGAP Bearing Used?
You’ll often find 7204 BEGAP Bearing in electric motors, where its precision handling of angular loads is essential. The P6 tolerance class ensures consistent performance in various industrial settings.
In household appliances like washing machines, 7204 BEGAP Bearing provides quiet and efficient operation. Its lubricated design helps maintain performance over long periods with minimal maintenance.
Built for Heavy-Duty Use: 7204 BEGAP Bearing
7204 BEGAP Bearing excels in pump systems, handling both radial and thrust loads with ease. The chrome steel balls and rings offer excellent wear resistance in harsh environments.
For precision equipment like dental drills, 7204 BEGAP Bearing’s low friction and high-speed capability are key advantages. The nylon cage further enhances its smooth operation.
