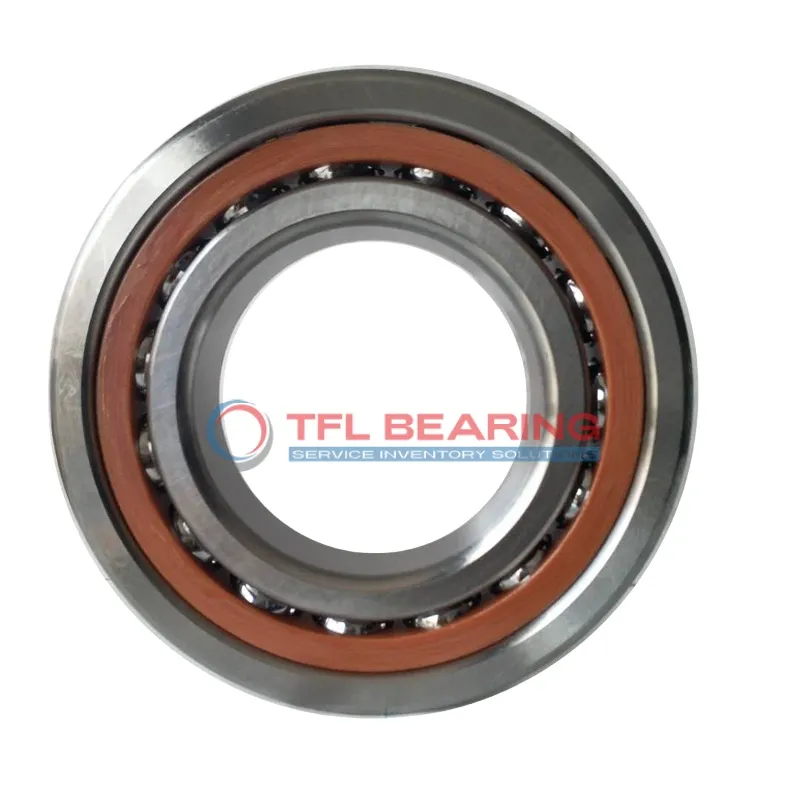

The 7204 BECBP is a single-row angular contact ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3218 lbf and spins smoothly at speeds up to 19,000 RPM.
With a 40° contact angle, it efficiently manages combined radial and axial loads. The open design and nylon cage ensure durability while allowing easy lubrication.
This bearing suits applications like pumps or small gearboxes where precise load handling is needed. Its compact 14mm width and 0.11kg weight make it ideal for space-conscious setups.
Compliant with RoHS and REACH standards, it operates reliably in temperatures from -30°C to 110°C. Interchangeable with SKF bearings, it offers a practical replacement option.
"*" indicates required fields
How Does 7204 BECBP Bearing Reduce Friction?
7204 BECBP Bearing features a 40° contact angle, optimising load distribution and minimising friction.
Its chrome steel construction ensures smooth operation, even at high speeds up to 19,000 rpm.
The nylon cage reduces vibration and noise, enhancing performance in precision applications.
With a dynamic radial load capacity of 3218 lbf, it delivers reliable performance under stress.
What Makes 7204 BECBP Bearing Suitable for High-Temperature Applications?
7204 BECBP Bearing operates efficiently within a temperature range of -30° to 110°C.
Its chrome steel rings and balls maintain structural integrity in demanding conditions.
The open design allows for effective lubrication, reducing heat buildup during operation.
This makes it ideal for applications where temperature fluctuations are common.
Engineered for Precision: 7204 BECBP Bearing
7204 BECBP Bearing is designed with a P6 tolerance class, ensuring high precision.
The single-row construction and 40° contact angle provide accurate load handling.
Its nylon cage enhances stability, making it suitable for sensitive machinery.
With a static radial load of 1834 lbf, it balances precision and durability.
Common Applications of 7204 BECBP Bearing
7204 BECBP Bearing is widely used in industrial machinery, especially in spindle assemblies and gearboxes where angular contact support is needed. Its 40° contact angle helps manage combined radial and axial loads efficiently.
In automotive applications, 7204 BECBP Bearing fits well in wheel hubs and transmission systems, offering smooth performance under high-speed conditions. The nylon cage reduces friction, making it a quiet option for vehicle components.
For automation equipment like robotic arms, 7204 BECBP Bearing provides precise movement due to its P6 tolerance class. The open design allows for easy lubrication, ensuring long service life in continuous operations.
You’ll also find 7204 BECBP Bearing in household appliances such as washing machines, where its durability handles frequent start-stop cycles. The chrome steel construction resists wear, even in damp environments.
