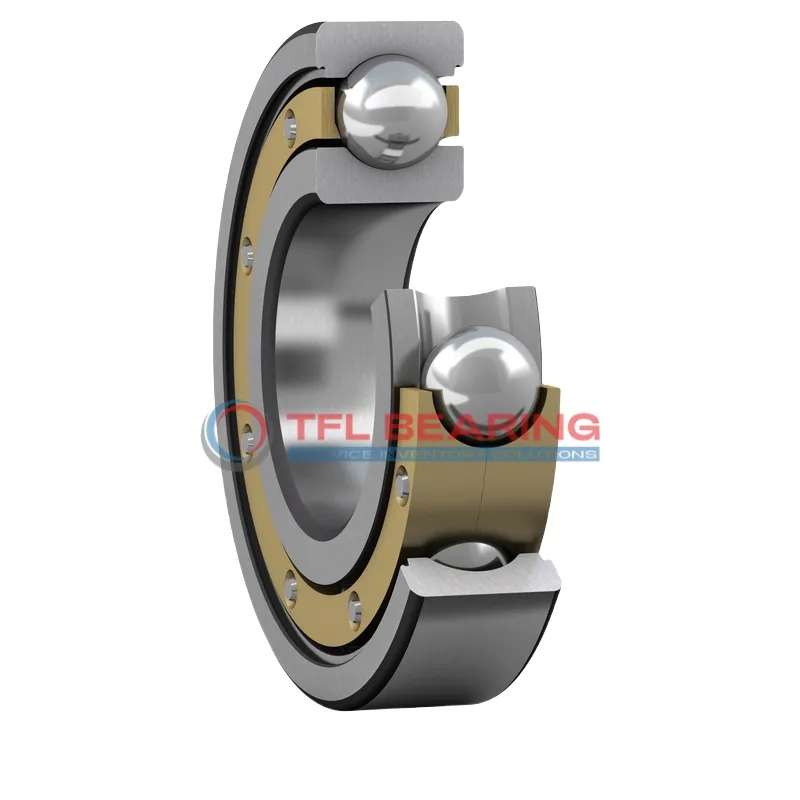

The 7204 ACCBM is a single-row angular contact ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3600 lbf and operates smoothly at speeds up to 30,000 RPM.
Its 25° contact angle efficiently manages combined radial and axial loads, while the brass cage enhances durability. The open design allows for easy lubrication and maintenance.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or electric motors where precise load handling is needed.
Weighing just 0.11kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it performs reliably in temperatures from -30°C to 110°C.
"*" indicates required fields
Why Choose 7204 ACCBM Bearing for Precision Tasks?
7204 ACCBM Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation at high speeds.
With a dynamic radial load capacity of 3600 lbf, it performs reliably in demanding applications.
The P6 tolerance class guarantees consistent accuracy, making it suitable for precision machinery.
Operating at up to 30,000 rpm, 7204 ACCBM Bearing balances speed and stability.
Its open design allows easy lubrication, extending service life in varied conditions.
Industrial Uses of 7204 ACCBM Bearing
7204 ACCBM Bearing is commonly used in machine tools, where its 25° contact angle helps manage combined radial and axial loads efficiently. The brass cage ensures smooth operation even at high speeds, making it suitable for precision equipment.
Where Is 7204 ACCBM Bearing Used?
In automotive applications, 7204 ACCBM Bearing fits well in wheel hubs and transmissions, offering reliable performance under varying loads. Its metric dimensions and P6 tolerance class make it a versatile choice for many vehicle designs.
Built for Heavy-Duty Use: 7204 ACCBM Bearing
7204 ACCBM Bearing excels in conveyor systems, handling both radial and thrust loads with ease. The chrome steel construction provides durability, while the open design allows for easy lubrication and maintenance.
Automotive vs Aerospace: Applications of 7204 ACCBM Bearing
7204 ACCBM Bearing is a go-to for automotive gearboxes, where its angular contact design supports high-speed rotations. In aerospace, it’s often found in auxiliary systems, thanks to its precision and reliability.
Key Fields for 7204 ACCBM Bearing
7204 ACCBM Bearing is ideal for robotics, particularly in joint mechanisms requiring precise movement. The lubricated design ensures long service life, even in continuous operation scenarios.
