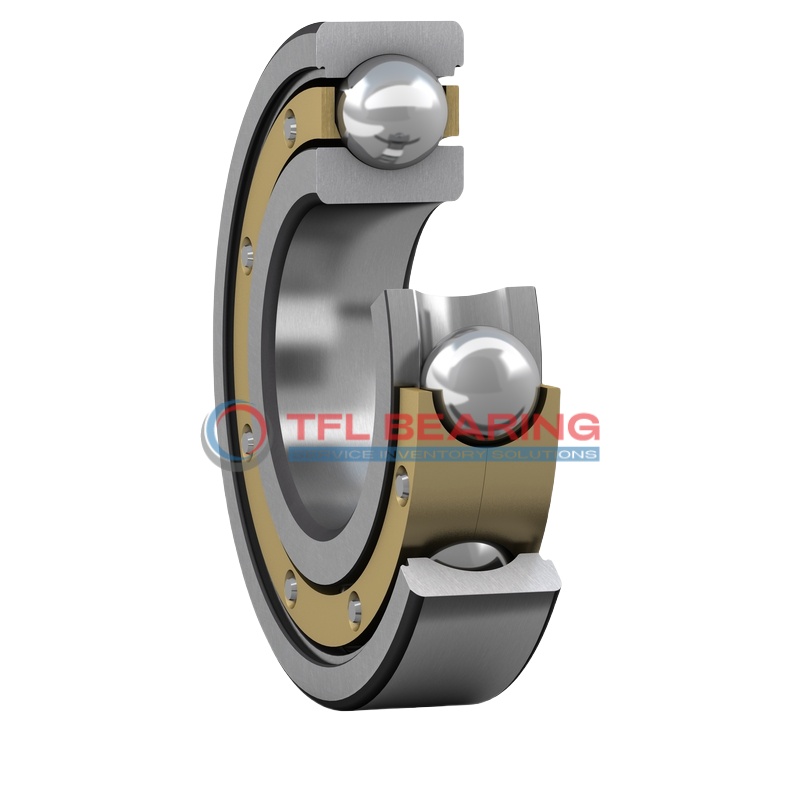

The 7202 ACCBM is a single-row angular contact ball bearing with a 15mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It features a 25° contact angle, ideal for handling combined radial and axial loads.
With a dynamic radial load capacity of 2295 lbf, it spins smoothly at speeds up to 40,000 RPM. The brass cage ensures durability, while the open design allows for easy lubrication.
Its compact width of 11mm makes it suitable for tight spaces. The bearing operates reliably in temperatures from -30°C to 110°C.
Perfect for applications like pumps or small gearboxes where precision and speed are key. Compliant with RoHS and REACH standards, it’s a versatile choice for various industrial needs.
"*" indicates required fields
Why Choose 7202 ACCBM Bearing for Precision Tasks?
7202 ACCBM Bearing features a 25° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the brass cage maintains precise ball alignment.
With a dynamic radial load capacity of 2295 lbf, it performs reliably in high-speed applications.
The P6 tolerance class guarantees consistent precision, making it suitable for demanding tasks.
Operating at up to 40,000 rpm, 7202 ACCBM Bearing balances speed and stability.
Its open design allows easy lubrication, extending service life in varied conditions.
Industrial Uses of 7202 ACCBM Bearing
7202 ACCBM Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation at high speeds, making it suitable for precision equipment.
Where Is 7202 ACCBM Bearing Used?
In automotive applications, 7202 ACCBM Bearing supports gearbox components, providing reliable performance under varying loads. Its 25° contact angle helps manage thrust forces effectively in compact spaces.
Built for Heavy-Duty Use: 7202 ACCBM Bearing
7202 ACCBM Bearing excels in conveyor systems, where its chrome steel construction withstands continuous operation. The P6 tolerance class ensures consistent performance in demanding industrial environments.
Automotive vs Aerospace: Applications of 7202 ACCBM Bearing
7202 ACCBM Bearing is versatile enough for both automotive transmissions and aerospace actuators. Its high-speed capability (up to 40,000 rpm) makes it a dependable choice for precision-driven systems.
Perfect Fit for Automation: 7202 ACCBM Bearing
7202 ACCBM Bearing is ideal for robotic arms, offering low friction and high accuracy. The lubricated design reduces maintenance needs, ensuring long service life in automated production lines.
