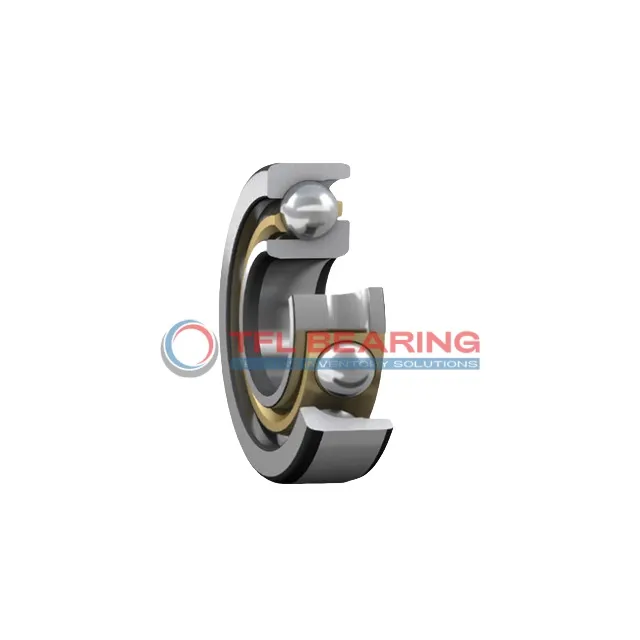

The 71972 AMB is a single-row angular contact ball bearing with a 360mm bore and 480mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 76050 lbf and operates smoothly at speeds up to 1500 RPM.
Its 30° contact angle efficiently handles combined loads, while the brass cage enhances durability. The open design simplifies lubrication, and it performs reliably in temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, offering a practical replacement option. Suitable for heavy-duty machinery like pumps or compressors where angular contact is needed.
Weighing 28.5kg, it’s built for robust performance in demanding settings. Compliant with RoHS and REACH standards for safe industrial use.
"*" indicates required fields
Performance Features of 71972 AMB Bearing
71972 AMB Bearing features a 30° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 76050 lbf, it performs reliably under heavy loads.
The P6 tolerance class guarantees precision, making it suitable for high-accuracy applications.
How Is 71972 AMB Bearing Engineered for Reliability?
71972 AMB Bearing is built with chrome steel components, offering durability and resistance to wear.
Its single-row design and open seal type allow for efficient lubrication and easy maintenance.
The bearing operates smoothly within a temperature range of -30° to 110°C, ensuring versatility.
With a maximum speed of 1,500 rpm, it balances performance and longevity.
Built for Reliability: 71972 AMB Bearing
71972 AMB Bearing’s brass cage maintains ball alignment, reducing friction and noise.
Its static radial load capacity of 137250 lbf ensures stability in demanding conditions.
The 3 mm chamfer dimension facilitates easier installation and integration.
Weighing 28.5 kg, it is robust yet designed for precision applications.
Industrial Uses of 71972 AMB Bearing
71972 AMB Bearing is commonly used in heavy machinery, such as large pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high stress.
In wind turbine applications, 71972 AMB Bearing supports the main shaft, providing stability and durability in demanding conditions. Its P6 tolerance class guarantees precision for long-term performance.
For industrial gearboxes, 71972 AMB Bearing’s chrome steel construction offers reliable performance in high-load scenarios. The 30° contact angle makes it suitable for applications requiring precise alignment and load distribution.
Automotive vs Aerospace: Applications of 71972 AMB Bearing
In automotive systems, 71972 AMB Bearing is found in large truck transmissions, where its robust design handles heavy loads. The metric sizing ensures compatibility with various global vehicle standards.
Aerospace applications benefit from 71972 AMB Bearing’s precision in components like landing gear systems. Its temperature range and lubrication make it ideal for both ground and flight conditions.
