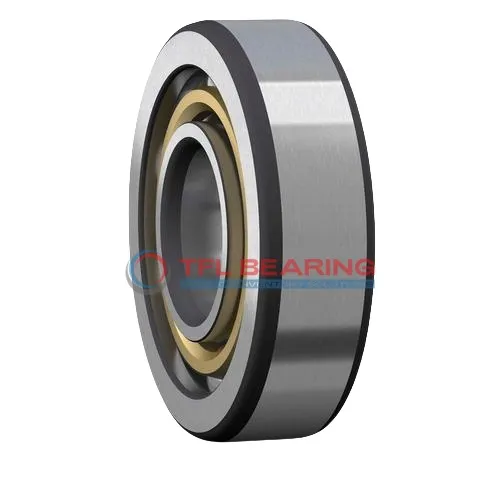

The 7096 BM is a single-row angular contact ball bearing with a 480mm bore and 700mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 140400 lbf and operates at speeds up to 900 RPM.
Its 40° contact angle efficiently handles combined loads, while the brass cage ensures smooth rotation. The open design allows easy lubrication, suitable for temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for heavy machinery or industrial equipment where angular loads are common.
Weighing 125kg, it’s designed for robust performance in demanding conditions. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
How Is 7096 BM Bearing Engineered for Reliability?
7096 BM Bearing features a 40° contact angle, optimised for handling both radial and axial loads efficiently.
Its chrome steel rings and balls provide strong resistance to wear, ensuring long-term performance.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a dynamic radial load capacity of 140,400 lbf, it excels in demanding applications.
Industrial Uses of 7096 BM Bearing
7096 BM Bearing is commonly used in large industrial machinery, such as heavy-duty gearboxes and large-scale conveyor systems, where its angular contact design efficiently handles combined loads. The brass cage ensures smooth operation even under high radial loads.
What Makes 7096 BM Bearing a Preferred Choice?
With a 40° contact angle, 7096 BM Bearing excels in applications requiring precise axial and radial load support, like wind turbine pitch control systems. Its chrome steel construction offers durability in demanding environments.
Built for Heavy-Duty Use: 7096 BM Bearing
7096 BM Bearing is ideal for large rotating equipment, such as mining machinery and industrial pumps, where its high static radial load capacity ensures reliable performance. The P6 tolerance class provides consistent precision.
Automotive vs Aerospace: Applications of 7096 BM Bearing
In automotive applications, 7096 BM Bearing supports large drivetrain components, while in aerospace, it’s used in landing gear systems due to its robust design. The metric sizing ensures compatibility across industries.
Perfect Fit for Automation: 7096 BM Bearing
7096 BM Bearing is well-suited for automated production lines, particularly in robotic arms and large CNC machines, where its angular contact design enhances stability. The lubricated construction reduces maintenance needs.
