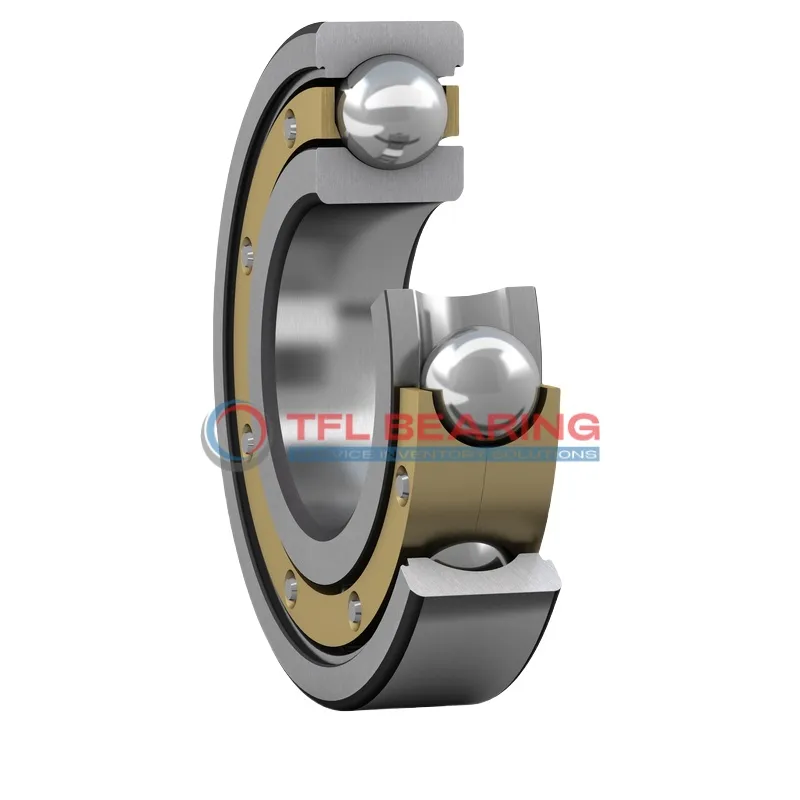

The 7080 AM is a single-row angular contact ball bearing with a 400mm bore and 600mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 136125 lbf and operates smoothly at speeds up to 1200 RPM.
With a 30° contact angle, it efficiently handles combined radial and axial loads. The open design and brass cage ensure durability and easy maintenance, even in demanding conditions.
This bearing suits heavy-duty applications like industrial gearboxes or large machinery, where precise load distribution is key. It works well in temperatures from -30°C to 110°C.
Weighing 90.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for convenient replacements.
"*" indicates required fields
Performance Features of 7080 AM Bearing
7080 AM Bearing features a 30° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 136125 lbf, it performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-accuracy applications.
How Is 7080 AM Bearing Engineered for Reliability?
7080 AM Bearing is built with chrome steel components, offering durability and resistance to wear.
The single-row design and open seal type allow for efficient lubrication and cooling.
It operates smoothly within a temperature range of -30° to 110°C, adapting to various environments.
Its maximum speed of 1,200 rpm balances performance and longevity.
Built for Reliability: 7080 AM Bearing
7080 AM Bearing’s large bore diameter of 400 mm accommodates heavy-duty shafts with ease.
The brass cage minimises friction, enhancing the bearing’s efficiency and lifespan.
Its static radial load capacity of 265500 lbf ensures stability in demanding conditions.
The 5 mm chamfer dimension facilitates easier installation and alignment.
Steel vs Ceramic Bearings: Strengths of 7080 AM Bearing
7080 AM Bearing uses chrome steel for both rings and balls, providing excellent load-bearing capacity.
Unlike ceramic bearings, it offers better impact resistance and cost-effectiveness for industrial use.
The brass cage further enhances its performance by reducing friction and noise.
With a weight of 90.5 kg, it is designed for robust applications requiring long-term reliability.
Industrial Uses of 7080 AM Bearing
The 7080 AM Bearing is commonly used in heavy industrial machinery, such as large pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. Its brass cage ensures smooth operation even under high stress.
In automotive applications, 7080 AM Bearing is ideal for large vehicle components like truck wheel hubs, providing reliable performance under heavy loads. The P6 tolerance class ensures precision fitment for demanding environments.
For wind turbine systems, 7080 AM Bearing’s robust construction and high load capacity make it suitable for main shaft support. The chrome steel rings and balls offer long-lasting durability in harsh weather conditions.
Where Is 7080 AM Bearing Used?
You’ll often find 7080 AM Bearing in construction equipment, such as crane slewing rings, where its large size and strength are essential. The open seal design allows for easy lubrication in dusty environments.
In railway applications, 7080 AM Bearing supports axle boxes, ensuring smooth movement under heavy loads. Its 30° contact angle provides optimal load distribution for long service life.
Built for Heavy-Duty Use: 7080 AM Bearing
The 7080 AM Bearing excels in mining machinery, handling extreme loads in crushers and conveyors. Its brass cage reduces friction, making it a reliable choice for continuous operation.
In marine applications, 7080 AM Bearing withstands corrosive environments while supporting propeller shafts. The lubricated design ensures consistent performance even in wet conditions.
Automotive vs Aerospace: Applications of 7080 AM Bearing
In automotive settings, 7080 AM Bearing is used in large drivetrain components, offering durability for heavy-duty vehicles. Its metric sizing ensures compatibility with global manufacturing standards.
For aerospace ground equipment, 7080 AM Bearing provides precision in aircraft loading systems. The high static radial load capacity makes it suitable for handling heavy cargo.
