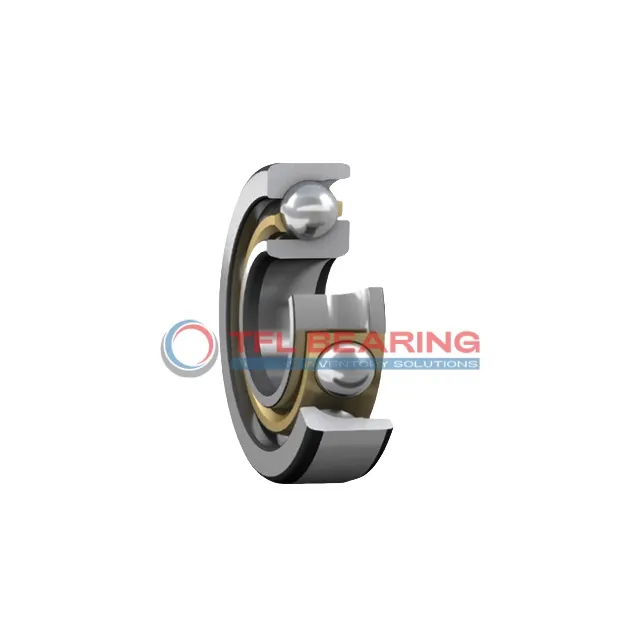

The 7076 BM is a single-row angular contact ball bearing with a 380mm bore and 560mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 105300 lbf and operates smoothly at speeds up to 1200 RPM.
Its 40° contact angle efficiently handles combined loads, while the brass cage enhances durability. The open design allows easy lubrication and maintenance.
With a P6 tolerance class, it offers reliable precision for demanding applications. Suitable for industrial machinery like pumps or compressors where angular contact is needed.
Weighing 64.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 7076 BM Bearing
7076 BM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls provide strong resistance to wear, ensuring reliable performance under heavy loads.
The brass cage maintains proper ball alignment, reducing friction and extending operational life.
With a dynamic radial load capacity of 105300 lbf, it excels in demanding industrial applications.
How Is 7076 BM Bearing Engineered for Reliability?
7076 BM Bearing features precise tolerances (P6 class), ensuring consistent performance in high-precision machinery.
The open design allows for easy lubrication, maintaining smooth operation even at speeds up to 1,200 rpm.
Its chrome steel construction resists wear, while the brass cage enhances durability.
The bearing operates reliably in temperatures ranging from -30° to 110°C, suitable for various environments.
Built for Durability: 7076 BM Bearing
7076 BM Bearing’s chrome steel components and brass cage ensure long-lasting performance under heavy loads.
Its 40° contact angle efficiently manages both radial and axial forces, reducing stress on the bearing.
The precise P6 tolerance class guarantees consistent operation in precision applications.
With a static radial load capacity of 191250 lbf, it is designed for robust industrial use.
Industrial Uses of 7076 BM Bearing
The 7076 BM Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads.
Its brass cage and chrome steel construction ensure durability in demanding environments, making it a reliable choice for continuous operation.
Where Is 7076 BM Bearing Used?
In wind turbines, the 7076 BM Bearing supports the main shaft, providing stability under varying loads and harsh weather conditions.
The P6 tolerance class ensures precise alignment, which is critical for maintaining performance in renewable energy applications.
Built for Heavy-Duty Use: 7076 BM Bearing
The 7076 BM Bearing excels in mining equipment, where its high dynamic radial load capacity withstands the stresses of heavy materials handling.
Lubrication compatibility further enhances its longevity, reducing maintenance needs in remote or challenging locations.
Automotive vs Aerospace: Applications of 7076 BM Bearing
In automotive testing rigs, the 7076 BM Bearing handles high-speed angular loads, ensuring accurate performance measurements.
For aerospace ground support equipment, its precision and robustness make it suitable for aligning and positioning heavy components.
Practical Applications of 7076 BM Bearing
The 7076 BM Bearing is ideal for large-scale automation systems, such as robotic welding arms, where its 40° contact angle improves movement accuracy.
Its metric dimensions and interchangeability with SKF bearings simplify integration into existing machinery designs.
