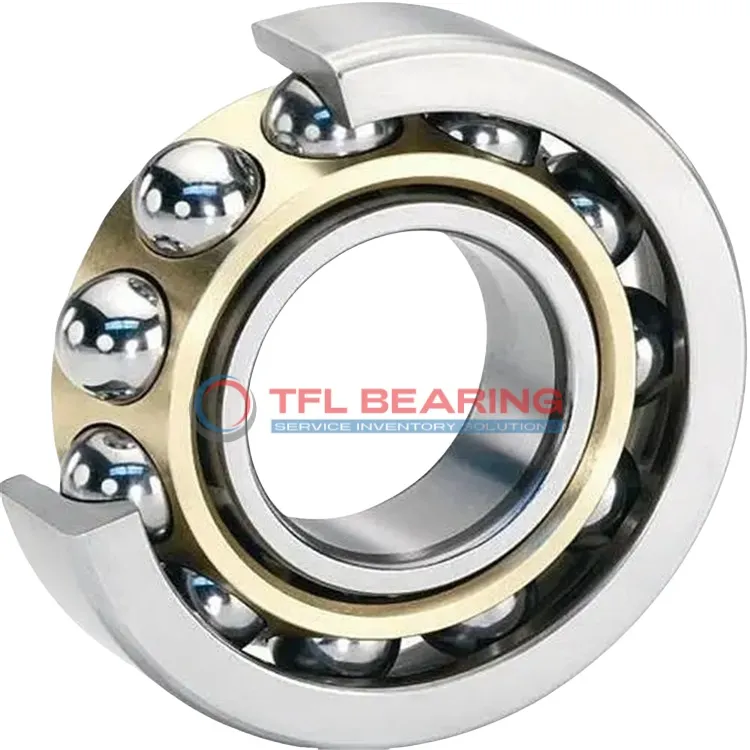

The 7072 AGM is a single-row angular contact ball bearing with a 360mm bore and 540mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 117000 lbf and operates smoothly at speeds up to 1300 RPM.
Its 30° contact angle efficiently handles combined loads, while the brass cage enhances durability. The open design simplifies lubrication, and it performs reliably in temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suited for heavy-duty applications like industrial gearboxes or large machinery where angular contact is needed.
Weighing 61.8kg, it’s built for robust performance. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.
"*" indicates required fields
Performance Features of 7072 AGM Bearing
7072 AGM Bearing is built with a 30° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
The dynamic radial load capacity of 117,000 lbf makes it suitable for heavy-duty applications.
With a maximum speed of 1,300 rpm, it balances performance and durability.
7072 AGM Bearing operates in temperatures from -30° to 110°C, adapting to various environments.
Its P6 tolerance class ensures precision, making it reliable for demanding tasks.
Industrial Uses of 7072 AGM Bearing
The 7072 AGM Bearing is commonly used in heavy industrial machinery, such as large pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently.
Its brass cage and chrome steel construction ensure durability in demanding environments, making it suitable for continuous operation.
Where Is 7072 AGM Bearing Used?
In wind turbines, the 7072 AGM Bearing supports the main shaft, providing stability under varying wind loads.
The P6 tolerance class ensures precise alignment, which is crucial for maintaining turbine efficiency over time.
Built for Heavy-Duty Use: 7072 AGM Bearing
The 7072 AGM Bearing excels in mining equipment, where its high dynamic radial load capacity withstands harsh conditions.
Its lubricated design reduces friction, extending service life even in dusty or high-temperature environments.
Automotive vs Aerospace: Applications of 7072 AGM Bearing
In automotive applications, the 7072 AGM Bearing is found in heavy-duty truck wheel hubs, offering reliable performance under heavy loads.
For aerospace, its precision and tolerance class make it suitable for auxiliary systems requiring consistent accuracy.
