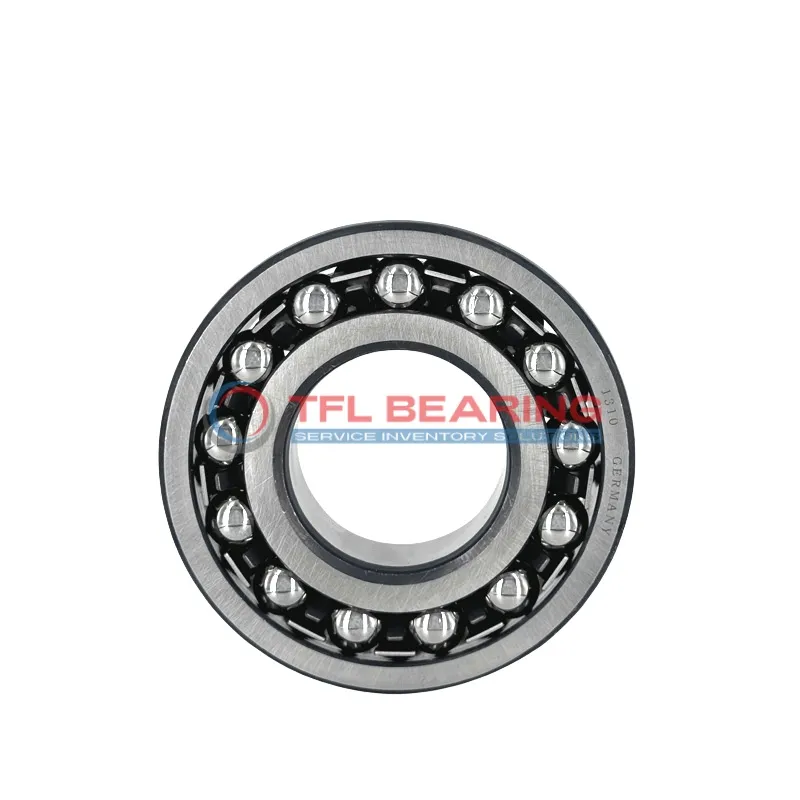

The 2316/C3 is a self-aligning ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 30375 lbf and runs smoothly at speeds up to 5300 RPM.
Its double-row design helps it handle misalignment, while the open seal allows for easy lubrication. The stainless steel cage adds durability, making it a reliable choice for heavy-duty use.
This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for industrial machinery or conveyor systems where alignment adjustments are needed.
Weighing 6.1kg, it’s built to last while maintaining performance. Compliant with RoHS and REACH standards for safe and eco-friendly operation.
"*" indicates required fields
Performance Features of 2316/C3 Bearing
2316/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 30375 lbf, ensuring dependable performance in various applications.
The double-row construction of 2316/C3 Bearing enhances load distribution, reducing stress on individual components.
With a maximum speed of 5,300 rpm, it balances durability and operational efficiency.
2316/C3 Bearing’s stainless steel cage maintains ball alignment, minimising wear and extending service life.
Its C3 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.
The open seal design of 2316/C3 Bearing simplifies maintenance while providing adequate protection.
Its wide temperature range of -30° to 110°C ensures reliable performance in diverse environments.
Industrial Uses of 2316/C3 Bearing
The 2316/C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial mixers, where its double-row design handles radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in demanding environments.
In automotive applications, 2316/C3 Bearing fits well in gearboxes and drivetrains, providing reliable performance under varying loads. The C3 radial clearance ensures smooth operation even with thermal expansion during long drives.
For robotics, 2316/C3 Bearing’s self-aligning feature compensates for minor misalignments in robotic arms, reducing wear. The chrome steel construction offers durability, making it suitable for high-precision automation tasks.
Where Is 2316/C3 Bearing Used?
You’ll often find 2316/C3 Bearing in wind turbines, where its ability to handle misalignment and heavy loads is crucial. The stainless steel cage adds corrosion resistance, ideal for outdoor installations.
In printing machinery, 2316/C3 Bearing ensures smooth paper feed and roller movement. Its metric sizing makes it compatible with a wide range of European-designed equipment.
Built for Heavy-Duty Use: 2316/C3 Bearing
The 2316/C3 Bearing excels in mining equipment, withstanding harsh conditions thanks to its chrome steel rings. Its dynamic radial load capacity of 30375 lbf makes it reliable for continuous operation.
In agricultural machinery, 2316/C3 Bearing handles dusty environments well, with easy relubrication keeping performance consistent. The C3 clearance accommodates shaft deflections common in field equipment.
Automotive vs Aerospace: Applications of 2316/C3 Bearing
In automotive systems, 2316/C3 Bearing supports heavy axles and transmissions, balancing load distribution. Its temperature range suits both cold starts and prolonged highway use.
For aerospace ground equipment, 2316/C3 Bearing’s precision ensures smooth operation in aircraft loaders. The 5.3 krpm speed rating meets the demands of high-cycle maintenance tools.
