Self Aligning Ball Bearings 2310E-K 2RS
Self Aligning Ball Bearings 2310E-K 2RS

Self Aligning Ball Bearings 2310E-K 2RS

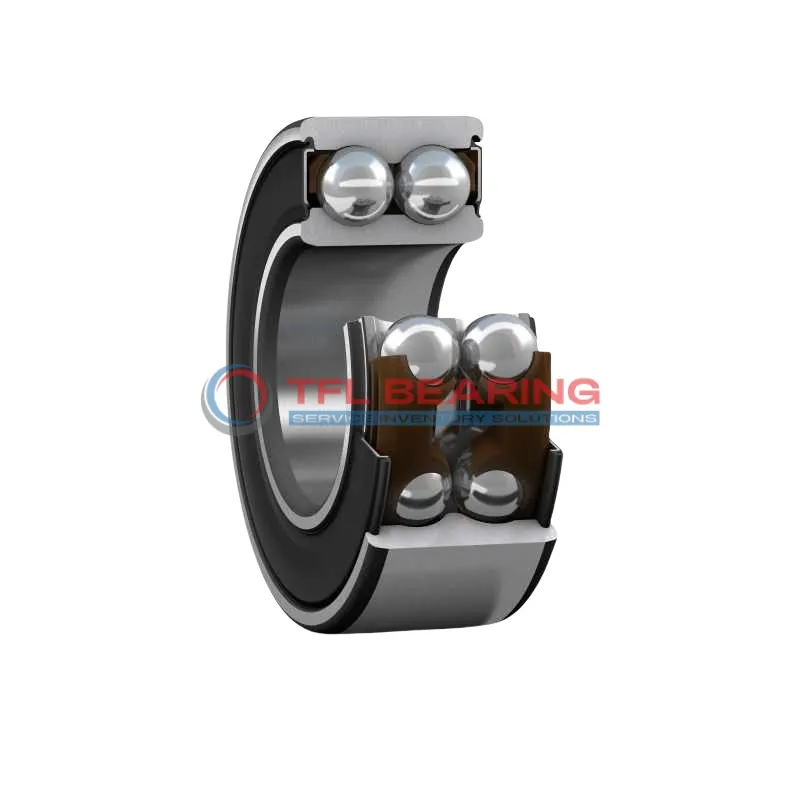

The 2310E-K 2RS is a self-aligning ball bearing with a 50mm bore and 110mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer durability and protection against contaminants.

Made from chrome steel with a nylon cage, it handles radial loads up to 9810 lbf and operates smoothly at speeds up to 4000 RPM. The bearing comes pre-lubricated for easy installation and maintenance.

Its self-aligning feature compensates for minor misalignments, making it ideal for applications like conveyor systems or agricultural machinery. The tapered bore ensures a secure fit on shafts.

Weighing 1.65kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial uses.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2310E-K 2RS
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 62.9 mm
  • Internal Diameter On Outer Ring 95.2 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 9810 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 1.65 kg
  • Price($) 135.52

Features

Why Choose 2310E-K 2RS Bearing for Precision Tasks?

2310E-K 2RS Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 9810 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage provide protection against contaminants while reducing noise.
This design enhances the bearing’s reliability in various operating conditions.

With a maximum speed of 4,000 rpm, 2310E-K 2RS Bearing balances performance and durability.
Its tapered bore ensures secure fitting, reducing the risk of slippage during operation.

The temperature range of -30° to 110°C allows 2310E-K 2RS Bearing to perform in diverse environments.
Its lubricated design minimises maintenance needs, saving time and costs.

Application

Industrial Uses of 2310E-K 2RS Bearing
2310E-K 2RS Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

Where Is 2310E-K 2RS Bearing Used?
You’ll often find 2310E-K 2RS Bearing in agricultural machinery, such as grain augers, where its radial load capacity handles uneven forces. The nylon cage reduces friction, making it quieter for farm equipment.

Built for Heavy-Duty Use: 2310E-K 2RS Bearing
2310E-K 2RS Bearing excels in industrial fans, supporting smooth rotation even under heavy loads. Its chrome steel construction ensures durability in high-temperature settings.

Automotive vs Aerospace: Applications of 2310E-K 2RS Bearing
In automotive applications, 2310E-K 2RS Bearing is ideal for wheel hubs, while in aerospace, it’s used in auxiliary systems. The metric taper bore ensures a secure fit in both sectors.

Perfect Fit for Automation: 2310E-K 2RS Bearing
2310E-K 2RS Bearing works well in robotic arms, where its double-row design provides stability. The lubricated seals reduce maintenance needs in continuous operation.
