Self Aligning Ball Bearings 2310 C/3
Self Aligning Ball Bearings 2310 C/3

Self Aligning Ball Bearings 2310 C/3

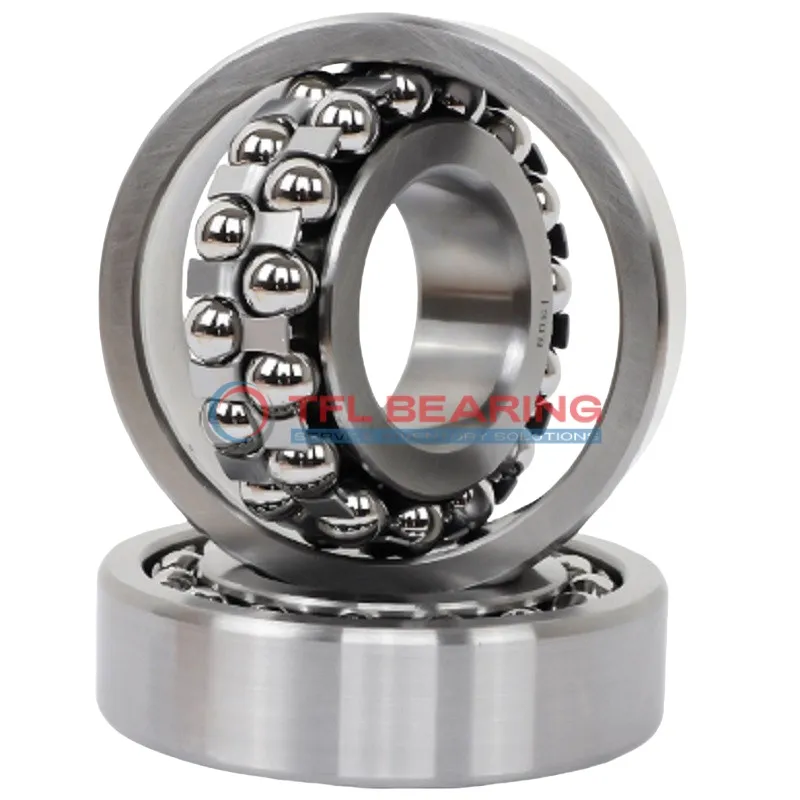

The 2310 C/3 is a self-aligning ball bearing with a 50mm bore and 110mm outer diameter, designed for radial loads. Its double-row construction and chrome steel components provide durability and smooth operation.

It handles dynamic radial loads up to 14332 lbf and can spin at speeds up to 8500 RPM, making it suitable for high-performance applications. The open design allows for easy lubrication and maintenance.

The bearing’s self-aligning feature compensates for minor misalignments, reducing wear and tear. It operates efficiently in temperatures ranging from -30°C to 110°C.

Ideal for use in industrial machinery or heavy equipment where radial loads and misalignment are common. Weighing 1.65kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2310 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 66 mm
  • Internal Diameter On Outer Ring 92.5 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 14332 lbf
  • Static Radial Load 4500 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8500 rpm
  • Weight 1.65 kg
  • Price($) 111.06

Features

Why Choose 2310 C/3 Bearing for Precision Tasks?

2310 C/3 Bearing features a double-row design, offering excellent radial load capacity up to 14332 lbf.
Its chrome steel rings and balls ensure durability and smooth operation in various applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 8,500 rpm, it delivers reliable performance for precision tasks.

Application

Industrial Uses of 2310 C/3 Bearing
2310 C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles misalignment effortlessly.
The open seal type allows for easy lubrication, ensuring long service life even in dusty environments.

Where Is 2310 C/3 Bearing Used?
You’ll often find 2310 C/3 Bearing in automotive applications, particularly in gearboxes and wheel hubs, where radial load capacity is key.
Its chrome steel construction provides durability, making it a reliable choice for high-speed operations.

Built for Heavy-Duty Use: 2310 C/3 Bearing
2310 C/3 Bearing excels in construction equipment like cranes and excavators, thanks to its robust design and high dynamic radial load rating.
The stainless steel cage adds extra resistance to wear, even under constant stress.

Automotive vs Aerospace: Applications of 2310 C/3 Bearing
In automotive systems, 2310 C/3 Bearing supports smooth rotation in drivetrains, while its precision makes it suitable for aerospace auxiliary systems.
The metric sizing ensures compatibility with a wide range of international machinery standards.

Perfect Fit for Automation: 2310 C/3 Bearing
2310 C/3 Bearing is ideal for robotic arms and automated assembly lines, where its self-aligning feature reduces downtime.
The lubricated design ensures consistent performance, even in high-cycle applications.
