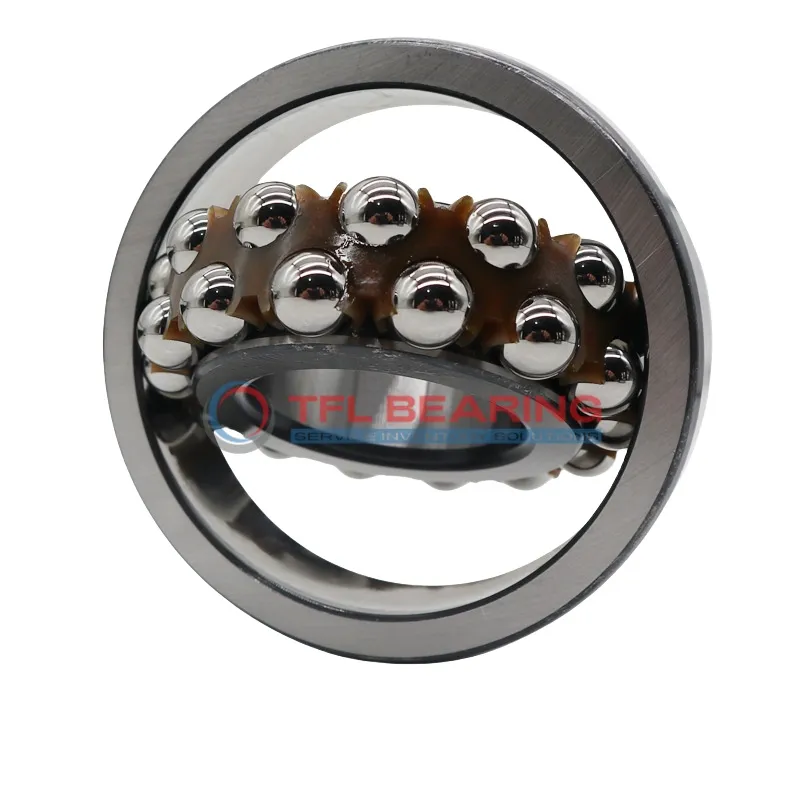

The 2309 C/2 is a self-aligning ball bearing with a 45mm bore and 100mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer reliable performance in various conditions.
Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 8775 lbf and operates smoothly at speeds up to 4300 RPM. The bearing is pre-lubricated for easy installation and maintenance.
Its self-aligning feature compensates for minor misalignments, making it suitable for applications like conveyor systems or agricultural machinery. The bearing works in temperatures from -30°C to 110°C.
Weighing 1.3kg, it’s a sturdy choice for heavy-duty use. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for convenient replacements.
"*" indicates required fields
Performance Features of 2309 C/2 Bearing
2309 C/2 Bearing is designed with double-row chrome steel balls, providing reliable radial load support.
Its dynamic radial load capacity reaches 8775 lbf, ensuring stable performance in various applications.
The nylon cage keeps the balls aligned, reducing friction and extending service life.
With a maximum speed of 4,300 rpm, it offers a balance of durability and efficiency.
2309 C/2 Bearing’s sealed design protects against contaminants, making it suitable for harsh environments.
The chrome steel construction resists wear, maintaining performance over time.
Its cylindrical bore ensures easy installation, saving time and effort.
The bearing operates smoothly within a temperature range of -30° to 110°C.
Industrial Uses of 2309 C/2 Bearing
2309 C/2 Bearing works well in conveyor systems, where its self-aligning feature helps handle minor shaft misalignments. The sealed design keeps contaminants out, extending bearing life in dusty environments.
In automotive applications, 2309 C/2 Bearing supports components like alternators and water pumps, thanks to its radial load capacity. The nylon cage reduces vibration, making it quieter for vehicle use.
For automation equipment, 2309 C/2 Bearing ensures smooth operation in robotic arms and assembly lines. Its double-row construction provides stability under varying loads, while the lubricated design minimises maintenance needs.
In household appliances like washing machines, 2309 C/2 Bearing handles unbalanced loads with ease. The chrome steel rings and balls offer durability, even with frequent use.
Medical devices benefit from 2309 C/2 Bearing’s precision in equipment like centrifuges. The consistent performance and low noise make it suitable for sensitive environments.
