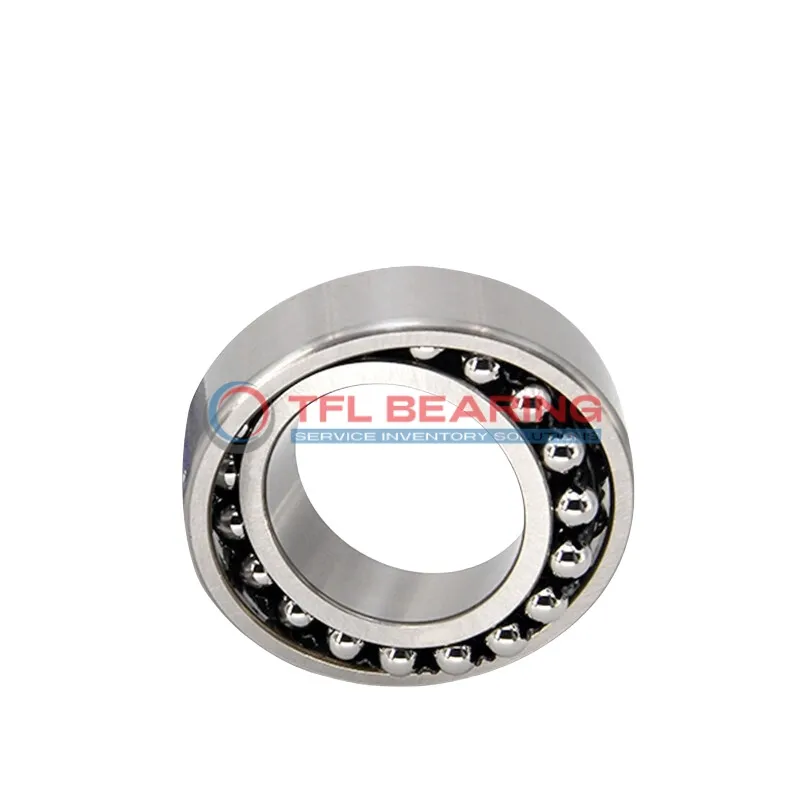

Self Aligning Ball Bearings 2306KC3
Self Aligning Ball Bearings 2306KC3

Self Aligning Ball Bearings 2306KC3

The 2306KC3 is a self-aligning ball bearing with a 30mm tapered bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7020 lbf and runs smoothly at speeds reaching 13,000 RPM.

Its double-row design and open seal allow for easy lubrication and alignment adjustments, while the stainless steel cage enhances durability. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 0.5kg, it’s a robust yet manageable choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2306KC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 41.9 mm
  • Internal Diameter On Outer Ring 59.8 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 1980 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.5 kg
  • Price($) 46.93

Features

Why Choose 2306KC3 Bearing for Precision Tasks?

2306KC3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 7020 lbf makes it suitable for demanding applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 13,000 rpm, it delivers smooth and efficient performance.

2306KC3 Bearing operates reliably in temperatures from -30° to 110°C.
Its C3 radial clearance provides optimal performance under varying load conditions.

Application

Industrial Uses of 2306KC3 Bearing
2306KC3 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for heavy-duty applications.

In automotive applications, 2306KC3 Bearing supports components such as gearboxes and drive shafts, where its tapered bore provides a secure fit. The chrome steel construction enhances durability, even in high-speed scenarios.

For automation equipment, 2306KC3 Bearing’s open design allows for easy lubrication, ensuring smooth operation in robotic arms and assembly lines. The C3 radial clearance offers flexibility in varying temperature conditions.

Where Is 2306KC3 Bearing Used?
You’ll find 2306KC3 Bearing in household appliances like washing machines, where its self-aligning capability reduces wear and tear. The stainless steel cage adds longevity, making it a cost-effective choice for frequent use.

Built for Heavy-Duty Use: 2306KC3 Bearing
2306KC3 Bearing excels in construction equipment, handling radial loads in machinery like cranes and excavators. Its lubricated design minimises friction, ensuring consistent performance in demanding environments.
