Self Aligning Ball Bearings 2222
Self Aligning Ball Bearings 2222

Self Aligning Ball Bearings 2222

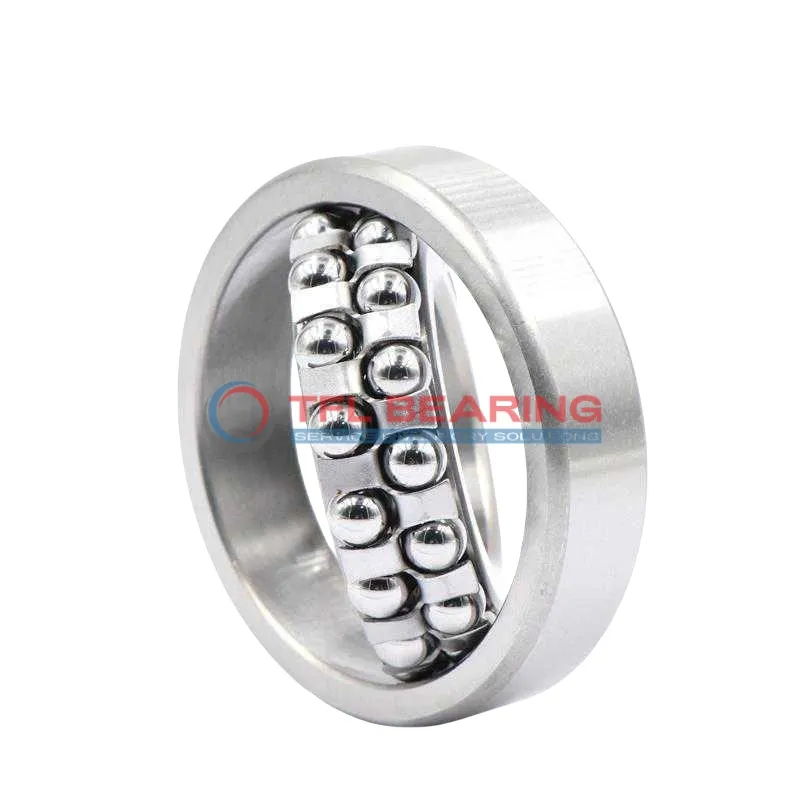

The 2222 is a self-aligning ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 27900 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and open construction allow for slight misalignments, reducing wear and tear. The stainless steel cage adds durability, while the lubricated setup ensures smooth running.

This bearing suits environments with temperatures ranging from -30°C to 110°C. It’s interchangeable with SKF models, making replacements straightforward.

Weighing 7.1kg, it’s a robust choice for heavy-duty applications like industrial machinery or conveyor systems. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2222
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 53 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 138.5 mm
  • Internal Diameter On Outer Ring 174.3 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 27900 lbf
  • Static Radial Load 11700 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 7.1 kg
  • Price($) 365.16

Features

Why Choose 2222 Bearing for Precision Tasks?

2222 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 27900 lbf, making it suitable for demanding industrial applications.

The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 4,300 rpm, it balances performance and reliability.

2222 Bearing operates efficiently in temperatures from -30° to 110°C, adapting to various environments.
Its open design allows for easy lubrication, ensuring smooth operation over time.

The precise tolerances of 2222 Bearing guarantee consistent performance in radial load applications.
Its robust construction minimises maintenance needs, lowering long-term costs.

Application

Industrial Uses of 2222 Bearing
2222 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles misalignment effortlessly. The chrome steel construction ensures durability even in demanding environments.

What Makes 2222 Bearing a Preferred Choice?
In automotive applications, 2222 Bearing supports components like wheel hubs and transmissions, offering reliable performance under radial loads. Its metric sizing makes it a versatile fit for various vehicle designs.

Built for Heavy-Duty Use: 2222 Bearing
For automation equipment, 2222 Bearing’s self-aligning feature is ideal for robotic arms and assembly lines, reducing wear from slight misalignments. The stainless steel cage adds longevity in high-speed operations.

Medical vs Industrial: Where 2222 Bearing Excels
While 2222 Bearing isn’t typically used in medical devices, it shines in industrial settings like pulp and paper machinery. Its robust design handles heavy loads without compromising smooth operation.
