Self Aligning Ball Bearings 2212J
Self Aligning Ball Bearings 2212J

Self Aligning Ball Bearings 2212J

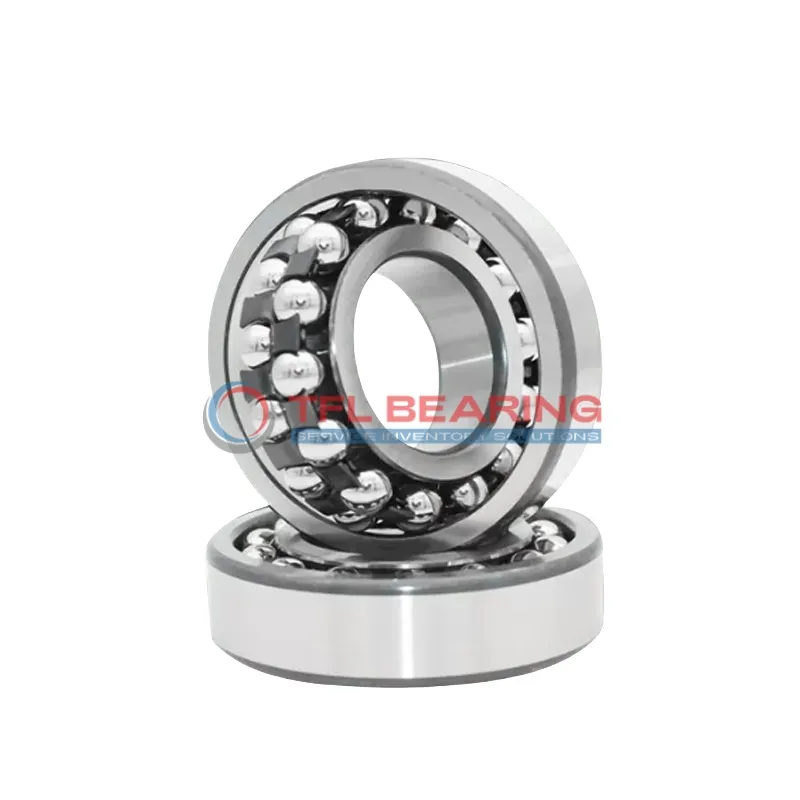

The 2212J is a self-aligning ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 7020 lbf and operates smoothly at speeds up to 3800 RPM.

Its double-row design and sealed construction help it handle misalignment while keeping dirt out, reducing maintenance needs. The steel cage adds durability, making it a reliable choice for tough conditions.

This bearing comes pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, ideal for replacements in machinery like conveyors or fans.

Weighing 1.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2212J
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 73.2 mm
  • Internal Diameter On Outer Ring 97 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 2745 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3800 rpm
  • Weight 1.05 kg
  • Price($) 85.56

Features

Why Choose 2212J Bearing for Precision Tasks?

2212J Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 7020 lbf makes it suitable for demanding applications.
The sealed construction keeps contaminants out, maintaining smooth operation over time.
With a maximum speed of 3,800 rpm, it balances performance and durability in various conditions.

How Is 2212J Bearing Engineered for Reliability?

2212J Bearing’s cylindrical bore design ensures a secure fit, reducing misalignment risks.
The steel cage maintains ball alignment, enhancing stability and extending service life.
Its lubricated construction minimises friction, promoting efficient operation.
Operating between -30° to 110°C, it performs reliably in diverse environments.

Built for Durability: 2212J Bearing

2212J Bearing’s chrome steel construction resists wear, ensuring long-lasting performance.
The sealed design protects against dust and moisture, reducing maintenance needs.
With a static radial load capacity of 2745 lbf, it handles heavy loads with ease.
Its compact size (60 mm×110 mm×28 mm) makes it ideal for space-constrained applications.

Steel vs Ceramic Bearings: Strengths of 2212J Bearing

2212J Bearing uses chrome steel for both rings and balls, offering excellent strength and durability.
The steel cage provides reliable ball alignment, ensuring consistent performance.
Its sealed design and lubrication reduce wear, extending operational life.
Suitable for radial loads, it excels in applications requiring precision and reliability.

Application

Industrial Uses of 2212J Bearing
2212J Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is 2212J Bearing Used?
You’ll find 2212J Bearing in agricultural machinery like harvesters, where its double-row construction handles heavy radial loads effortlessly. The lubricated design ensures smooth operation even in demanding field conditions.

Built for Heavy-Duty Use: 2212J Bearing
2212J Bearing excels in industrial fans and blowers, thanks to its chrome steel rings and steel cage for durability. Its wide temperature range makes it suitable for both hot and cold operating environments.

Automotive vs Industrial: Applications of 2212J Bearing
In automotive applications, 2212J Bearing supports auxiliary components like alternators, while in industrial settings, it’s ideal for pumps and compressors. The metric sizing ensures easy integration with European and Asian machinery.

Perfect Fit for Automation: 2212J Bearing
2212J Bearing works well in robotic arms and assembly line equipment, where its self-aligning capability reduces wear from shaft deflection. The CN radial clearance provides a balance between precision and load capacity.
