Self Aligning Ball Bearings 2210KJ
Self Aligning Ball Bearings 2210KJ

Self Aligning Ball Bearings 2210KJ

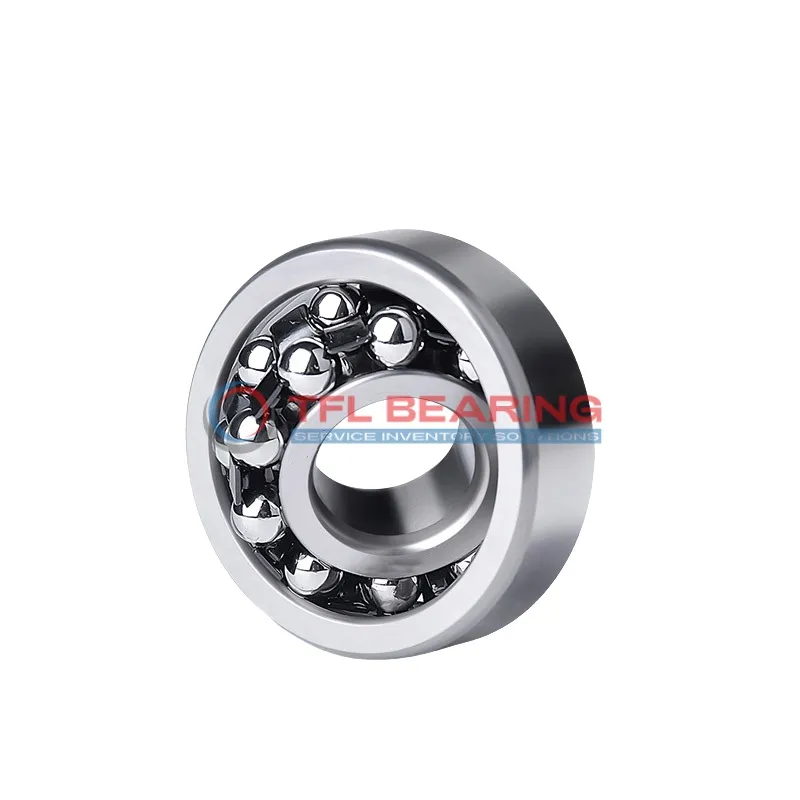

The 2210KJ is a self-aligning ball bearing with a 50mm tapered bore and 90mm outer diameter, built to handle radial loads. Its double-row design and sealed construction offer smooth operation and protection against dust.

Made from chrome steel with a steel cage, it supports dynamic loads up to 5152 lbf and speeds of 4800 RPM. The tapered bore ensures a secure fit on shafts, reducing slippage during use.

Pre-lubricated for easy installation, it works in temperatures from -30°C to 110°C. Ideal for machinery with misalignment issues, like conveyor systems or agricultural equipment.

Weighing 0.57kg, it’s a sturdy yet manageable choice. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for hassle-free replacements.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2210KJ
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.7 mm
  • Internal Diameter On Outer Ring 79.4 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1834 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.57 kg
  • Price($) 41.25

Features

Why Choose 2210KJ Bearing for Precision Tasks?

2210KJ Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 5152 lbf makes it suitable for demanding applications.

The sealed construction of 2210KJ Bearing keeps contaminants out, enhancing its durability.
With a maximum speed of 4,800 rpm, it offers reliable performance in various conditions.

2210KJ Bearing’s taper bore design simplifies installation and ensures secure fitting.
Its steel cage maintains ball alignment, reducing wear and extending service life.

The lubricated design of 2210KJ Bearing minimises maintenance needs while ensuring smooth operation.
It operates efficiently within a temperature range of -30° to 110°C, adapting to diverse environments.

Application

Industrial Uses of 2210KJ Bearing
2210KJ Bearing is commonly used in industrial machinery where misalignment compensation is needed, such as conveyor systems and heavy-duty gearboxes. Its double-row design helps distribute loads evenly, ensuring smoother operation.

What Makes 2210KJ Bearing a Preferred Choice?
In automotive applications, 2210KJ Bearing fits well in suspension systems and drivetrains, thanks to its tapered bore for secure mounting. The sealed design keeps contaminants out, extending its lifespan.

Perfect Fit for Automation: 2210KJ Bearing
For robotics and automation, 2210KJ Bearing offers reliable performance in robotic arms and assembly lines. The chrome steel construction provides durability under continuous use.

Medical vs Industrial: Where 2210KJ Bearing Excels
In medical devices like imaging equipment, 2210KJ Bearing ensures precision and quiet operation. Its lubricated design reduces friction, making it suitable for high-use scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 2210KJ Bearing
For household appliances like washing machines, 2210KJ Bearing handles radial loads effectively. The steel cage adds strength, making it a dependable choice for everyday use.
