Self Aligning Ball Bearings 2209KC3
Self Aligning Ball Bearings 2209KC3

Self Aligning Ball Bearings 2209KC3

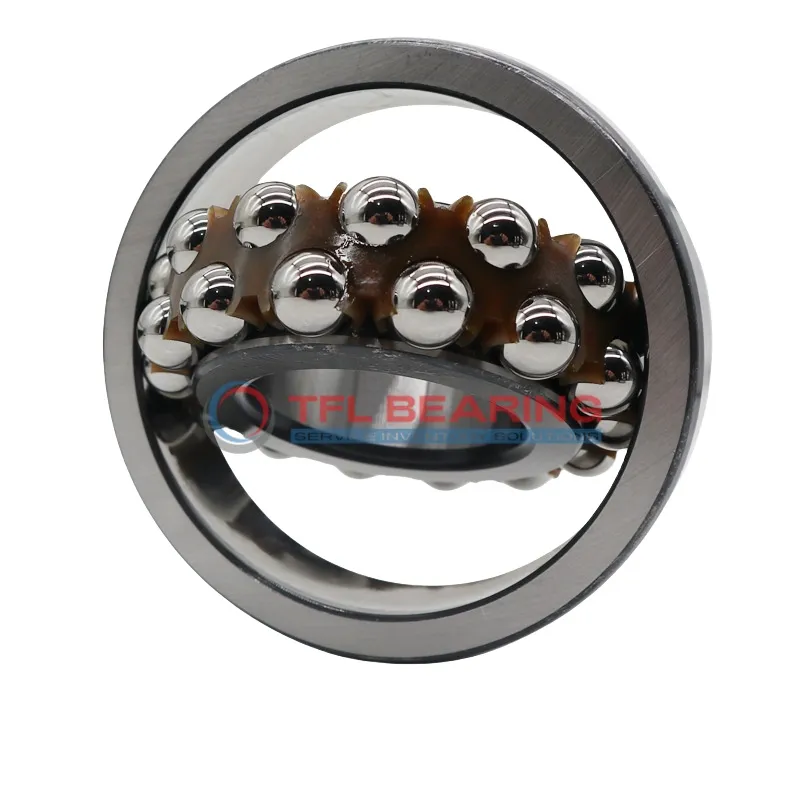

The 2209KC3 is a self-aligning ball bearing with a 45mm tapered bore and 85mm outer diameter, crafted from durable chrome steel. It manages radial loads up to 5152 lbf and runs smoothly at speeds up to 5300 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing operates well in temperatures from -30°C to 110°C.

Pre-lubricated for easy use, it’s ideal for applications like conveyor systems or agricultural machinery where misalignment might occur. Weighing 0.53kg, it’s sturdy yet manageable for its size.

Compliant with RoHS and REACH standards, this model is interchangeable with SKF bearings, making it a practical choice for replacements. The C3 radial clearance ensures flexibility in various operating conditions.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2209KC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 52.9 mm
  • Internal Diameter On Outer Ring 75.25 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 0.53 kg
  • Price($) 51.37

Features

Performance Features of 2209KC3 Bearing

2209KC3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 5152 lbf, ensuring reliable performance in various applications.

The double-row design and sealed construction of 2209KC3 Bearing enhance its durability and protection against contaminants.
With a maximum speed of 5,300 rpm, it balances efficiency and longevity.

2209KC3 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its nylon cage reduces friction and noise, making it suitable for precision machinery.

Application

Industrial Uses of 2209KC3 Bearing
2209KC3 Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2209KC3 Bearing fits well in wheel hubs and transmission systems, thanks to its double-row construction for handling radial loads. The taper bore design also simplifies installation in vehicle assemblies.

For automation equipment like robotic arms, 2209KC3 Bearing offers smooth movement with its nylon cage reducing friction. Its C3 radial clearance provides flexibility in high-speed operations without compromising stability.

Where Is 2209KC3 Bearing Used?
You’ll often find 2209KC3 Bearing in industrial fans and blowers, where its sealed design protects against dust and moisture. The chrome steel rings ensure durability even in continuous operation.

In household appliances like washing machines, 2209KC3 Bearing reduces vibration and noise during spin cycles. The lubricated design means less maintenance, making it ideal for everyday use.

Built for Heavy-Duty Use: 2209KC3 Bearing
2209KC3 Bearing handles heavy radial loads in construction equipment like compactors and mixers. Its self-aligning capability is perfect for uneven load distributions common on job sites.

The bearing’s nylon cage and chrome steel balls work together in agricultural machinery, resisting wear from repetitive motion. It’s a reliable choice for tractors and harvesters.
