Self Aligning Ball Bearings 2206-K C/3
Self Aligning Ball Bearings 2206-K C/3

Self Aligning Ball Bearings 2206-K C/3

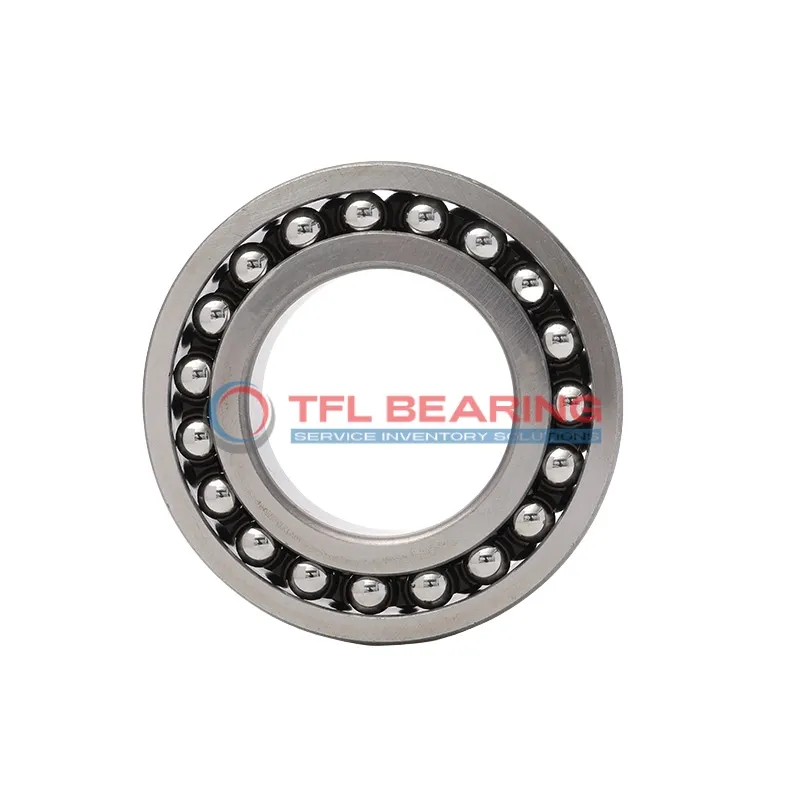

The 2206-K C/3 is a self-aligning ball bearing with a 30mm tapered bore and 62mm outer diameter, crafted from robust chrome steel. It manages radial loads up to 3510 lbf and runs smoothly at speeds up to 7500 RPM.

Its double-row design and sealed construction help maintain alignment and keep dirt out, while the nylon cage reduces friction. Pre-lubricated for easy use, it operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for machinery where misalignment might occur, such as conveyor systems or agricultural equipment.

Weighing 0.26kg, it’s a sturdy yet manageable choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2206-K C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price($) 25.65

Features

Why Choose 2206-K C/3 Bearing for Precision Tasks?

2206-K C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 3510 lbf makes it suitable for demanding applications.

The nylon cage in 2206-K C/3 Bearing helps reduce friction and noise during operation.
This design also enhances durability, making it ideal for precision tasks.

With a maximum speed of 7,500 rpm, 2206-K C/3 Bearing balances performance and efficiency.
Its sealed construction keeps lubrication intact, reducing maintenance needs.

2206-K C/3 Bearing operates smoothly in temperatures ranging from -30° to 110 °C.
This adaptability ensures reliable performance in various environments.

Application

Industrial Uses of 2206-K C/3 Bearing
2206-K C/3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

Where Is 2206-K C/3 Bearing Used?
You’ll find 2206-K C/3 Bearing in agricultural machinery, such as harvesters, where its radial load capacity handles uneven forces. The nylon cage reduces friction, making it efficient for continuous operation.

Built for Heavy-Duty Use: 2206-K C/3 Bearing
2206-K C/3 Bearing excels in construction equipment like compactors, thanks to its double-row design. The chrome steel construction provides durability under heavy loads and harsh conditions.

Automotive vs Aerospace: Applications of 2206-K C/3 Bearing
In automotive applications, 2206-K C/3 Bearing supports wheel hubs, offering smooth rotation. For aerospace, its precision and reliability make it suitable for auxiliary systems.

Perfect Fit for Automation: 2206-K C/3 Bearing
2206-K C/3 Bearing is ideal for robotic arms, where its self-aligning capability ensures accurate movement. The lubricated design minimises maintenance, perfect for high-use automation setups.
