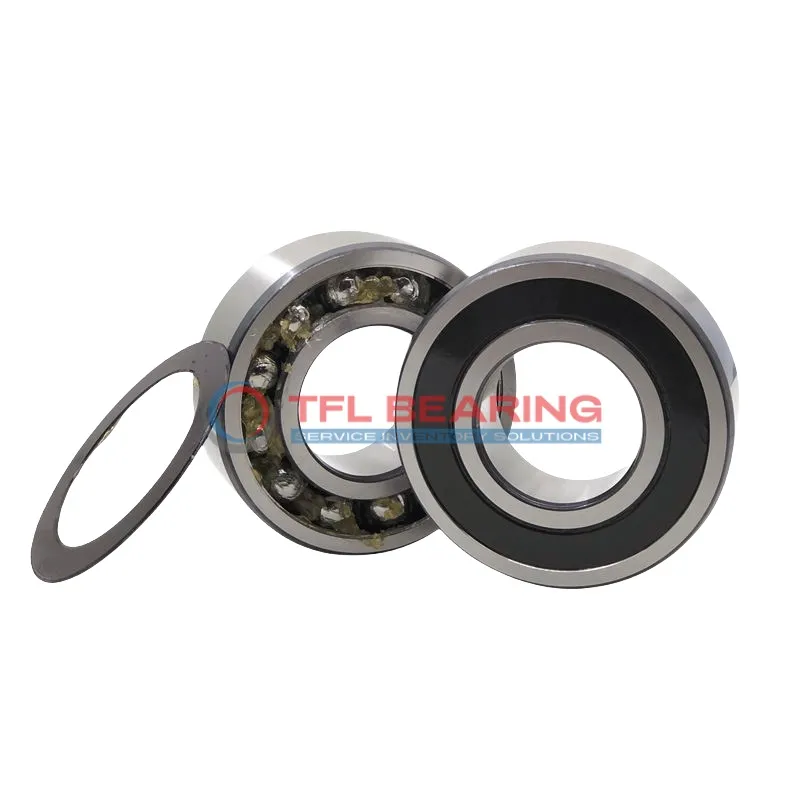

Self Aligning Ball Bearings 2205-K-2RS-TVH-C3
Self Aligning Ball Bearings 2205-K-2RS-TVH-C3

Self Aligning Ball Bearings 2205-K-2RS-TVH-C3

The 2205-K-2RS-TVH-C3 is a self-aligning ball bearing with a 25mm tapered bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3218 lbf and operates smoothly at speeds up to 9000 RPM.

Its double-row design and sealed construction help maintain alignment and keep contaminants out, while the nylon cage reduces friction. The bearing comes pre-lubricated for easy installation.

This model suits applications with slight misalignment, such as conveyor systems or agricultural machinery. It performs reliably in temperatures from -30°C to 110°C.

Weighing just 0.16kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for hassle-free replacements.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2205-K-2RS-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 31 mm
  • Internal Diameter On Outer Ring 46.21 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.16 kg
  • Price($) 37.53

Features

Why Choose 2205-K-2RS-TVH-C3 Bearing for Precision Tasks?

2205-K-2RS-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3218 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage provide protection against contaminants while reducing noise.
This design ensures smooth operation and extends the bearing’s service life.

With a maximum speed of 9,000 rpm, 2205-K-2RS-TVH-C3 Bearing balances performance and durability.
Its C3 radial clearance allows for thermal expansion, making it reliable in varying temperatures.

The taper bore design simplifies installation, ensuring a secure fit on shafts.
This feature reduces maintenance needs and enhances operational efficiency.

Application

Industrial Uses of 2205-K-2RS-TVH-C3 Bearing
2205-K-2RS-TVH-C3 Bearing is commonly used in industrial machinery like conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2205-K-2RS-TVH-C3 Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. Its nylon cage reduces noise, making it suitable for passenger vehicles.

For automation equipment, 2205-K-2RS-TVH-C3 Bearing’s double-row construction handles radial loads efficiently in robotic arms. The C3 clearance allows for thermal expansion, ideal for high-speed operations.

Where Is 2205-K-2RS-TVH-C3 Bearing Used?
You’ll find 2205-K-2RS-TVH-C3 Bearing in household appliances like washing machines, where its sealed design prevents water damage. The chrome steel rings provide durability for daily use.

In medical devices, 2205-K-2RS-TVH-C3 Bearing offers smooth rotation in imaging equipment. Its lubricated design ensures quiet operation, crucial for sensitive environments.

Built for Heavy-Duty Use: 2205-K-2RS-TVH-C3 Bearing
2205-K-2RS-TVH-C3 Bearing excels in construction equipment, handling heavy radial loads with ease. The tapered bore ensures a tight fit, reducing slippage under stress.

For agricultural machinery, 2205-K-2RS-TVH-C3 Bearing’s self-aligning capability adapts to uneven loads. The nylon cage resists corrosion, perfect for outdoor use.

Automotive vs Aerospace: Applications of 2205-K-2RS-TVH-C3 Bearing
In automotive systems, 2205-K-2RS-TVH-C3 Bearing supports wheel hubs, balancing load and speed. Its metric sizing fits standard vehicle designs.

For aerospace components, 2205-K-2RS-TVH-C3 Bearing’s lightweight construction and reliability make it suitable for auxiliary systems. The temperature range ensures performance in varying conditions.
