Self Aligning Ball Bearings 2205
Self Aligning Ball Bearings 2205

Self Aligning Ball Bearings 2205

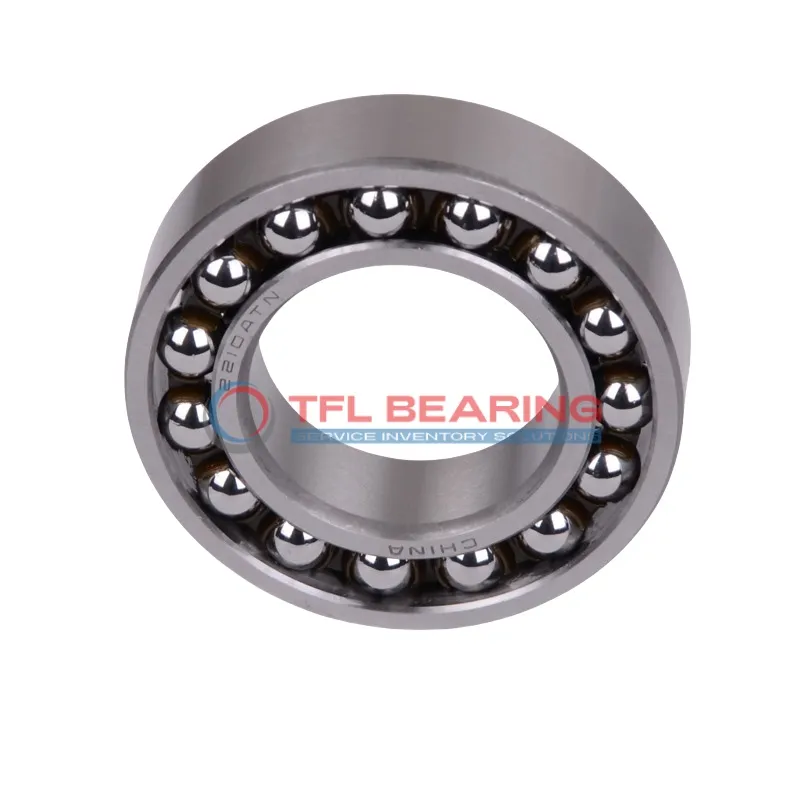

The 2205 is a self-aligning ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 3218 lbf while spinning smoothly at 9000 RPM.

The nylon cage reduces friction, and the pre-lubrication ensures quiet operation. It works in temperatures from -30°C to 110°C, making it versatile for various environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for applications like conveyor systems or electric motors where slight misalignment might occur.

Weighing just 0.16kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 2205
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 31 mm
  • Internal Diameter On Outer Ring 46.21 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.16 kg
  • Price($) 18.12

Features

Why Choose 2205 Bearing for Precision Tasks?

2205 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3218 lbf makes it suitable for high-performance applications.

The nylon cage in 2205 Bearing reduces friction and noise, enhancing operational smoothness.
With a maximum speed of 9,000 rpm, it delivers reliable performance in various conditions.

2205 Bearing’s sealed construction protects against contaminants, extending its service life.
Its temperature range of -30° to 110°C ensures adaptability in diverse environments.

Application

Industrial Uses of 2205 Bearing
2205 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design provides added stability, making it suitable for continuous operation in factories.

Where Is 2205 Bearing Used?
In automotive applications, 2205 Bearing fits well in wheel hubs and transmissions due to its radial load capacity. The sealed design keeps contaminants out, extending its lifespan even in dusty conditions.

Built for Heavy-Duty Use: 2205 Bearing
For agricultural machinery, 2205 Bearing handles uneven loads effortlessly, thanks to its chrome steel construction. The nylon cage reduces friction, ensuring smoother performance in demanding environments.

Automotive vs Industrial: Applications of 2205 Bearing
In industrial pumps, 2205 Bearing’s lubricated design minimises wear during high-speed rotations. Meanwhile, in automotive fans, its temperature resilience keeps systems running efficiently.

Perfect Fit for Automation: 2205 Bearing
2205 Bearing works seamlessly in robotic arms, where precise movement is essential. The metric sizing ensures compatibility with a variety of automated equipment across different industries.
