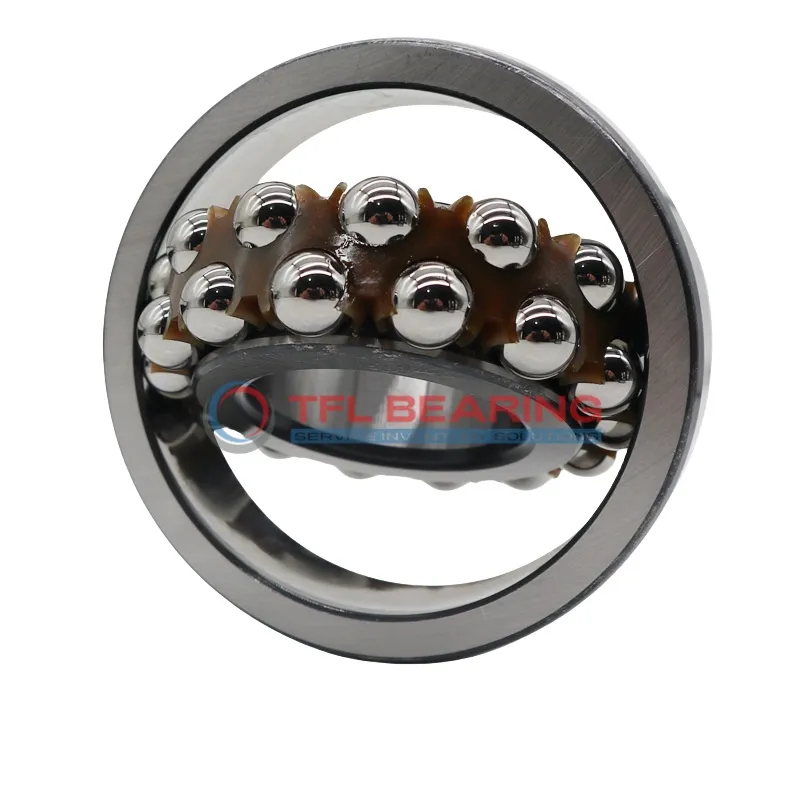

Self Aligning Ball Bearings 1210 ETN9/C3
Self Aligning Ball Bearings 1210 ETN9/C3

Self Aligning Ball Bearings 1210 ETN9/C3

The 1210 ETN9/C3 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 5962 lbf and operates smoothly at speeds up to 10,000 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments. The nylon cage reduces friction, enhancing durability.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery with misalignment issues, like conveyor systems or agricultural equipment.

Weighing 0.53kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1210 ETN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 61.7 mm
  • Internal Diameter On Outer Ring 78.1 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 2059 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.53 kg
  • Price($) 37.89

Features

How Does 1210 ETN9/C3 Bearing Reduce Friction?

1210 ETN9/C3 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction and wear, contributing to quieter operation.
With a dynamic radial load capacity of 5962 lbf, it handles demanding applications efficiently.
Its C3 radial clearance allows for better thermal expansion management, enhancing performance.

Application

Common Applications of 1210 ETN9/C3 Bearing
In industrial settings, 1210 ETN9/C3 Bearing is widely used in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, even in demanding environments.

Where Is 1210 ETN9/C3 Bearing Used?
You’ll often find 1210 ETN9/C3 Bearing in automotive applications like electric motors and pumps, where its nylon cage reduces friction and noise. The C3 radial clearance also makes it suitable for high-speed operations.

Perfect Fit for Automation: 1210 ETN9/C3 Bearing
This bearing works well in robotic arms and assembly lines, thanks to its ability to handle slight shaft deflections. The chrome steel construction ensures durability, while the lubricated design minimises maintenance needs.

Industrial vs Automotive: Performance of 1210 ETN9/C3 Bearing
In heavy machinery, 1210 ETN9/C3 Bearing handles radial loads efficiently, while in vehicles, it supports smooth rotation in transmission systems. Its metric sizing ensures compatibility across various equipment types.

Essential Roles of 1210 ETN9/C3 Bearing
For household appliances like washing machines, 1210 ETN9/C3 Bearing provides quiet and reliable operation. The open seal design allows for easy lubrication, extending its service life in everyday use.
