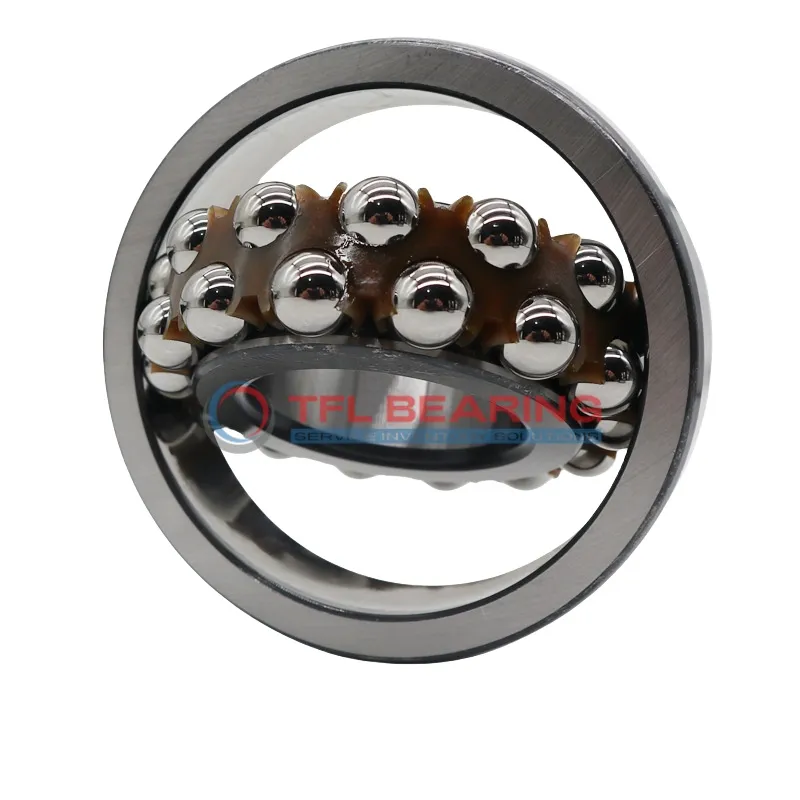

The 1210 EKTN9/C3 is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5962 lbf and operates smoothly at speeds up to 10,000 RPM.
Its double-row design and open seal type allow for easy lubrication and maintenance, while the nylon cage reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.
Weighing 0.53kg, it offers a good balance of strength and weight. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Why Choose 1210 EKTN9/C3 Bearing for Precision Tasks?
1210 EKTN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 5962 lbf makes it suitable for demanding applications.
The nylon cage maintains ball alignment, reducing friction and noise during operation.
With a maximum speed of 10,000 rpm, it offers both durability and efficiency.
1210 EKTN9/C3 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its C3 radial clearance provides optimal performance under varying thermal conditions.
The tapered bore design simplifies installation and ensures secure fitting.
This makes 1210 EKTN9/C3 Bearing a practical choice for precision machinery.
Industrial Uses of 1210 EKTN9/C3 Bearing
1210 EKTN9/C3 Bearing is commonly used in industrial machinery, especially in applications where misalignment might occur, such as conveyor systems and textile equipment. Its double-row design helps accommodate slight shaft deflections without compromising performance.
In automotive applications, 1210 EKTN9/C3 Bearing can be found in gearboxes and drivetrains, where its radial load capacity ensures smooth operation. The tapered bore also provides a secure fit, reducing the risk of slippage under heavy loads.
For automation systems, 1210 EKTN9/C3 Bearing supports robotic arms and assembly line equipment, thanks to its nylon cage reducing friction. The C3 radial clearance further enhances its ability to handle varying thermal expansions.
Where Is 1210 EKTN9/C3 Bearing Used?
1210 EKTN9/C3 Bearing is ideal for fans and blowers, where its self-aligning feature compensates for minor mounting inaccuracies. The chrome steel construction ensures durability even in dusty environments.
In household appliances like washing machines, 1210 EKTN9/C3 Bearing provides reliable performance with its lubricated design. The metric sizing makes it easy to replace in European and Asian models.
Built for Heavy-Duty Use: 1210 EKTN9/C3 Bearing
1210 EKTN9/C3 Bearing excels in construction equipment, handling radial loads in mixers and compactors. Its open seal type allows for easy re-lubrication, extending service life.
For agricultural machinery, 1210 EKTN9/C3 Bearing withstands harsh conditions while maintaining alignment. The nylon cage reduces noise, making it suitable for equipment operating near workers.
