Self Aligning Ball Bearings 1209 EKTN9
Self Aligning Ball Bearings 1209 EKTN9

Self Aligning Ball Bearings 1209 EKTN9

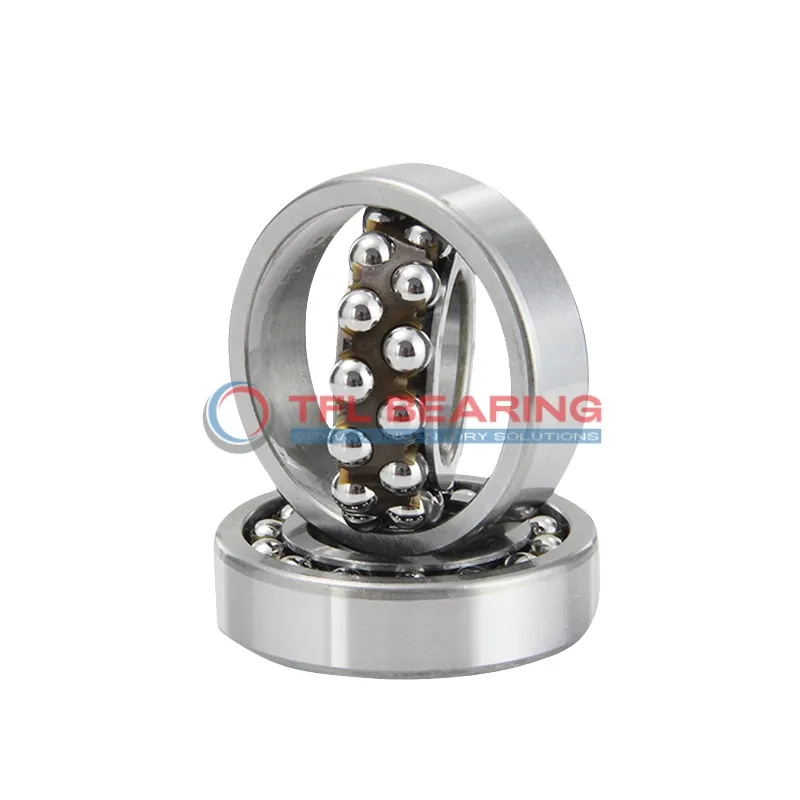

The 1209 EKTN9 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5152 lbf and operates smoothly at speeds up to 11000 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.47kg, it offers a balance of strength and lightness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1209 EKTN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.51 mm
  • Internal Diameter On Outer Ring 72.5 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.47 kg
  • Price($) 20.04

Features

Why Choose 1209 EKTN9 Bearing for Precision Tasks?

1209 EKTN9 Bearing features a double-row design, enhancing its radial load capacity up to 5152 lbf.

The chrome steel rings and balls ensure durability, while the nylon cage reduces friction for smoother operation.

With a maximum speed of 11,000 rpm, it delivers efficient performance in various applications.

Its self-aligning capability allows for slight misalignments, ensuring reliable operation even in imperfect conditions.

Application

Industrial Uses of 1209 EKTN9 Bearing
The 1209 EKTN9 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. Its double-row design ensures stable performance even under heavy radial loads.

In automotive applications, 1209 EKTN9 Bearing fits well in wheel hubs and transmissions, thanks to its durable chrome steel construction. The open seal design allows for easy lubrication, extending its service life.

For robotics, 1209 EKTN9 Bearing provides smooth movement in joint mechanisms, where precision is key. The nylon cage reduces friction, making it ideal for high-speed operations.

In household appliances like washing machines, 1209 EKTN9 Bearing handles vibrations effectively. Its metric sizing ensures compatibility with a variety of European and Asian models.

Medical devices such as centrifuges benefit from 1209 EKTN9 Bearing’s reliable performance. The lubricated design ensures quiet operation, crucial for sensitive environments.
