Self Aligning Ball Bearings 1206 P/6
Self Aligning Ball Bearings 1206 P/6

Self Aligning Ball Bearings 1206 P/6

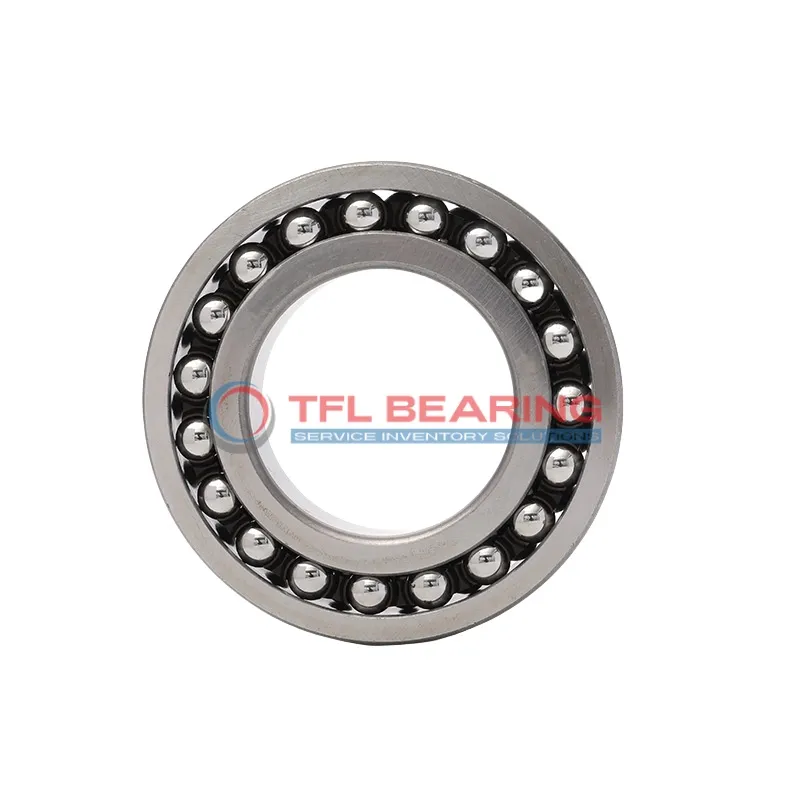

The 1206 P/6 is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. Its compact 16mm width makes it suitable for tight spaces, while the chrome steel construction ensures durability.

This double-row bearing handles dynamic radial loads up to 3510 lbf and spins smoothly at speeds up to 15,000 RPM. The nylon cage reduces friction and noise, ideal for high-speed applications.

Its open design allows easy lubrication, and the self-aligning feature compensates for minor misalignments. The bearing operates reliably in temperatures from -30°C to 110°C.

Weighing just 0.22kg, it’s a lightweight yet robust choice for machinery like conveyor systems or electric motors. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1206 P/6
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 40.3 mm
  • Internal Diameter On Outer Ring 51.9 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.22 kg
  • Price($) 23.3

Features

How Does 1206 P/6 Bearing Reduce Friction?

1206 P/6 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, allowing for quieter operation and reduced energy consumption.
The bearing’s optimised geometry enhances lubrication efficiency, further lowering friction during high-speed rotation.
With a maximum speed of 15,000 rpm, it delivers reliable performance in various applications.

Application

Common Applications of 1206 P/6 Bearing
In industrial settings, 1206 P/6 Bearing is a go-to for conveyor systems and fans, thanks to its self-aligning feature that compensates for minor misalignments. The double-row design ensures stable performance even under radial loads.

Where Is 1206 P/6 Bearing Used?
You’ll often spot 1206 P/6 Bearing in automotive applications like electric motors, where its nylon cage reduces friction and noise. Its metric sizing makes it a seamless fit for various vehicle models.

Ideal for Precision: 1206 P/6 Bearing
For medical devices like lab equipment, 1206 P/6 Bearing’s chrome steel construction offers reliable, long-lasting performance. The lubricated design ensures smooth operation in high-speed scenarios.

Automotive vs Industrial: Applications of 1206 P/6 Bearing
While 1206 P/6 Bearing excels in car transmissions, it’s equally handy in factory machinery like pumps. Its wide temperature range (-30° to 110°C) suits diverse environments.

What Makes 1206 P/6 Bearing a Preferred Choice?
In robotics, 1206 P/6 Bearing’s self-aligning capability is a game-changer for joint movements. The open seal type allows easy lubrication, extending its service life.
