Self Aligning Ball Bearings 1206 EM
Self Aligning Ball Bearings 1206 EM

Self Aligning Ball Bearings 1206 EM

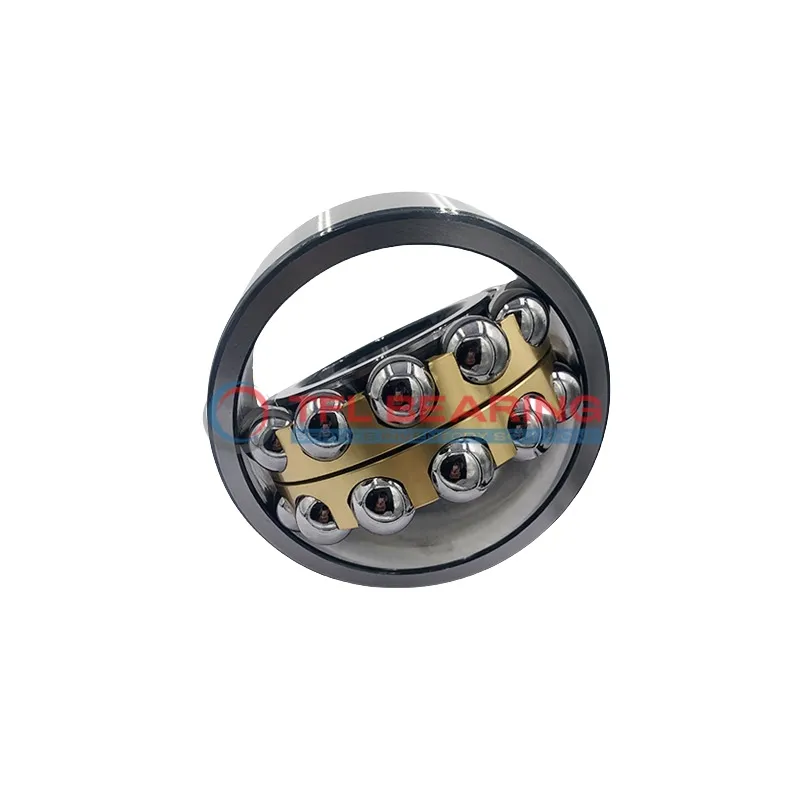

The 1206 EM is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3510 lbf and can spin at speeds of 15,000 RPM.

Its double-row design helps it adjust to slight misalignments, while the brass cage ensures smooth operation. The open seal type makes lubrication straightforward.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. It’s a great fit for machinery where alignment might shift, like conveyor systems or agricultural equipment.

Weighing 0.24kg, it’s a reliable choice for medium-duty applications. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1206 EM
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 40.3 mm
  • Internal Diameter On Outer Ring 51.9 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.24 kg
  • Price($) 13.39

Features

Why Choose 1206 EM Bearing for Precision Tasks?

1206 EM Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 3510 lbf makes it suitable for high-performance applications.

The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 15,000 rpm, it offers both durability and efficiency in demanding conditions.

1206 EM Bearing operates effectively within a temperature range of -30° to 110°C, adapting to various environments.
Its open seal type allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1206 EM Bearing
The 1206 EM Bearing is commonly used in conveyor systems and industrial fans, where its self-aligning feature helps accommodate minor misalignments. Its double-row design provides stable radial load support, making it suitable for continuous operation.

In automotive applications, 1206 EM Bearing fits well in gearboxes and wheel hubs, offering reliable performance under varying loads. The brass cage enhances durability, ensuring smooth rotation even in high-temperature conditions.

For automation equipment like robotic arms, 1206 EM Bearing’s open design allows easy lubrication, reducing maintenance downtime. Its metric sizing ensures compatibility with a wide range of machinery components.

Where Is 1206 EM Bearing Used?
You’ll often find 1206 EM Bearing in household appliances like washing machines, where its radial load capacity handles constant motion. The chrome steel construction ensures long-lasting performance in everyday use.

In medical devices such as lab centrifuges, 1206 EM Bearing provides precise rotation with minimal vibration. Its lubricated design keeps operations quiet, which is essential in sensitive environments.
