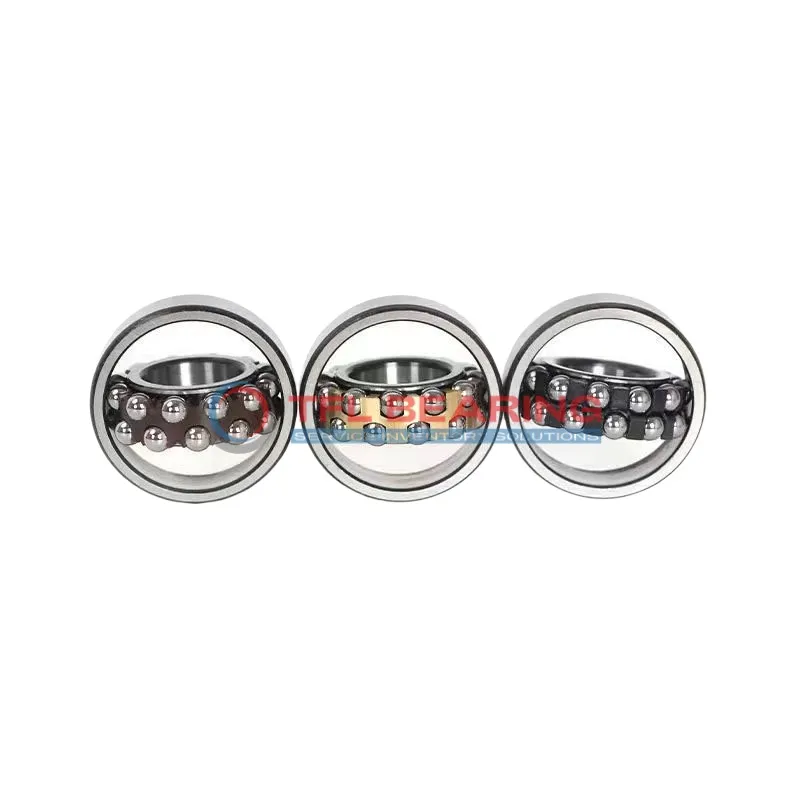

Self Aligning Ball Bearings 1205T2C4
Self Aligning Ball Bearings 1205T2C4

Self Aligning Ball Bearings 1205T2C4

The 1205T2C4 is a self-aligning ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. Its double-row design helps manage radial loads up to 3218 lbf, while allowing smooth rotation at speeds up to 18,000 RPM.

The open seal type and nylon cage make maintenance straightforward, and the bearing stays reliable in temperatures from -30°C to 110°C. Its C4 radial clearance ensures flexibility in slightly misaligned setups.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like conveyors or fans where alignment adjustments might be needed.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1205T2C4
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 33.3 mm
  • Internal Diameter On Outer Ring 44.6 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C4
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18000 rpm
  • Weight 0.14 kg
  • Price($) 19.44

Features

How Is 1205T2C4 Bearing Engineered for Reliability?

1205T2C4 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 3218 lbf, making it suitable for various industrial applications.
The nylon cage helps reduce friction and noise, enhancing smooth operation.
With a maximum speed of 18,000 rpm, it offers both durability and high-speed performance.

Application

Common Applications of 1205T2C4 Bearing
1205T2C4 Bearing is widely used in industrial machinery, especially in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design provides stable radial load support, making it suitable for continuous operation.

In automotive applications, 1205T2C4 Bearing can be found in auxiliary components like alternators and water pumps, where its nylon cage reduces noise and vibration. The C4 radial clearance ensures smooth performance even under varying temperatures.

For automation equipment, 1205T2C4 Bearing’s high-speed capability makes it ideal for robotic arms and precision assembly lines. The chrome steel construction offers durability, while the open seal allows for easy lubrication maintenance.

In household appliances like washing machines, 1205T2C4 Bearing’s self-aligning property helps handle unbalanced loads quietly. Its compact size and metric dimensions make it a versatile choice for various European and Asian models.
