Self Aligning Ball Bearings 1205J
Self Aligning Ball Bearings 1205J

Self Aligning Ball Bearings 1205J

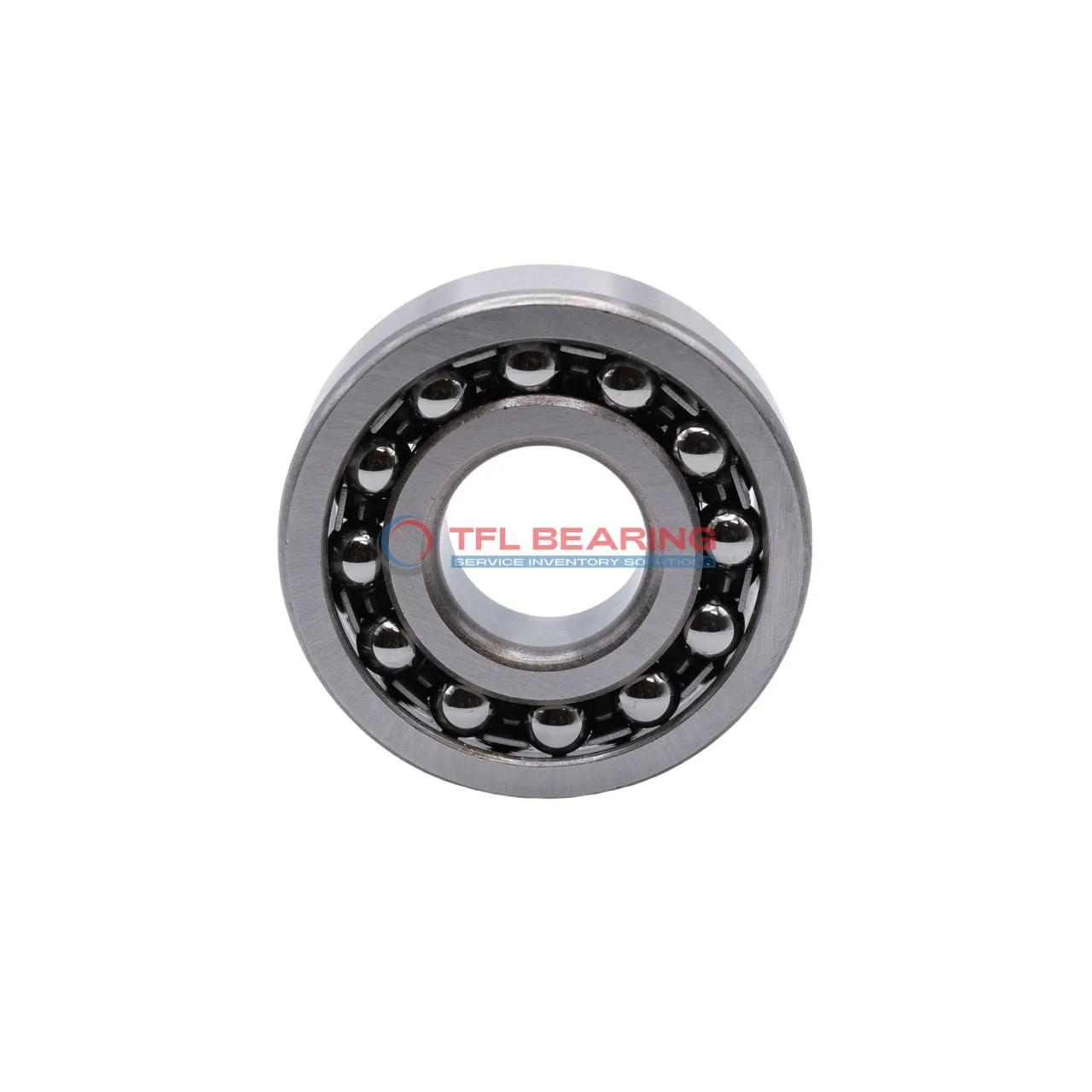

The 1205J is a self-aligning ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 3218 lbf and spins smoothly at speeds up to 18,000 RPM.

Its double-row design and open seal type make it adaptable to minor misalignments, while the steel cage ensures durability. The bearing comes pre-lubricated and operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for applications like conveyor systems or electric motors where radial loads and slight misalignments are common.

Weighing just 0.14kg, it’s a lightweight yet robust choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1205J
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 33.3 mm
  • Internal Diameter On Outer Ring 44.6 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18000 rpm
  • Weight 0.14 kg

Features

Why Choose 1205J Bearing for Precision Tasks?

1205J Bearing features a double-row design, providing excellent radial load capacity up to 3218 lbf.
Its chrome steel construction ensures durability and smooth operation in various applications.

The cylindrical bore design simplifies installation, making it user-friendly for different setups.
With a maximum speed of 18,000 rpm, it delivers reliable performance for high-speed operations.

1205J Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal type allows for easy lubrication, enhancing its longevity and reducing maintenance needs.

Application

Industrial Uses of 1205J Bearing
1205J Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design also helps distribute radial loads evenly, extending equipment life.

In automotive applications, 1205J Bearing fits well in gearboxes and pumps, handling moderate speeds with reliability. Its chrome steel construction ensures durability even under continuous operation.

For automation equipment like robotic arms, 1205J Bearing offers smooth movement thanks to its low friction design. The open seal type allows for easy relubrication, reducing maintenance downtime.

Where Is 1205J Bearing Used?
You’ll find 1205J Bearing in household appliances like washing machines, where its radial load capacity handles spinning motions effectively. The metric sizing makes it compatible with many European-made devices.

In industrial fans, 1205J Bearing’s self-aligning capability prevents premature wear from shaft deflection. Its steel cage provides added strength, making it suitable for long-running applications.

Built for Heavy-Duty Use: 1205J Bearing
1205J Bearing works well in agricultural machinery, tolerating dust and slight misalignments common in fieldwork. The lubricated design ensures consistent performance even in harsh conditions.

For small electric motors, 1205J Bearing’s compact size and radial load capacity make it a reliable choice. Its temperature range allows stable operation in both hot and cold environments.

Light-Duty vs Heavy-Duty: Best Uses for 1205J Bearing
In light-duty applications like office printers, 1205J Bearing ensures quiet operation with minimal vibration. The chrome steel balls contribute to its smooth rotation over time.

For heavier tasks like packaging machinery, 1205J Bearing’s dynamic load rating handles intermittent high forces. Its cylindrical bore simplifies installation on standard shafts.
