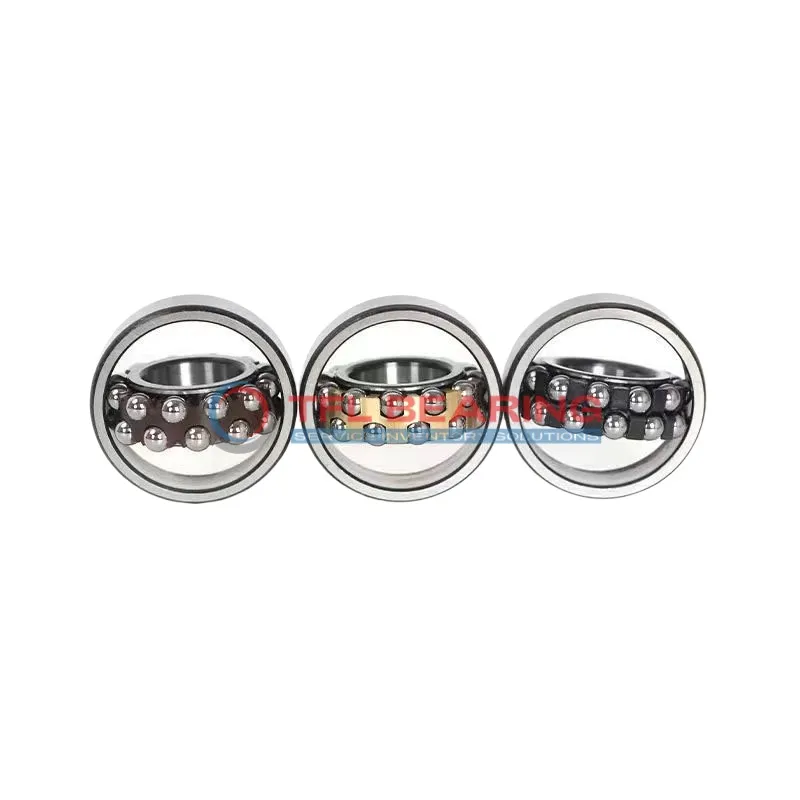

Self Aligning Ball Bearings 1205 KC3
Self Aligning Ball Bearings 1205 KC3

Self Aligning Ball Bearings 1205 KC3

The 1205 KC3 is a self-aligning ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3218 lbf and operates smoothly at speeds up to 18000 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the nylon cage reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe and efficient choice for various industrial applications.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1205 KC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 33.3 mm
  • Internal Diameter On Outer Ring 44.6 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18000 rpm
  • Weight 0.14 kg
  • Price($) 21.36

Features

How Does 1205 KC3 Bearing Reduce Friction?

1205 KC3 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The nylon cage minimises friction and noise, making it suitable for high-speed applications up to 18,000 rpm.
With a C3 radial clearance, it accommodates slight misalignments while maintaining performance.
Its tapered bore design simplifies installation, reducing downtime and maintenance efforts.

Application

Industrial Uses of 1205 KC3 Bearing
The 1205 KC3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor shaft misalignments.
Its double-row design provides stable radial load support, making it suitable for continuous operation in manufacturing plants.

Where Is 1205 KC3 Bearing Used?
You’ll often find 1205 KC3 Bearing in agricultural machinery, such as grain augers, where dust and vibration are common.
The nylon cage reduces friction, ensuring smooth rotation even in harsh outdoor conditions.

Built for Heavy-Duty Use: 1205 KC3 Bearing
In construction equipment like compactors, 1205 KC3 Bearing handles heavy radial loads with ease.
The C3 clearance allows for thermal expansion, making it reliable in high-temperature environments.

Automotive vs Aerospace: Applications of 1205 KC3 Bearing
In automotive wheel hubs, 1205 KC3 Bearing offers durability for everyday driving.
For aerospace applications, its precision ensures smooth operation in auxiliary flight systems.

Perfect Fit for Automation: 1205 KC3 Bearing
Robotic arms benefit from 1205 KC3 Bearing’s ability to maintain alignment during repetitive movements.
The lubricated design reduces maintenance needs, ideal for automated production lines.
