Self Aligning Ball Bearings 1205 ETN9/W64
Self Aligning Ball Bearings 1205 ETN9/W64

Self Aligning Ball Bearings 1205 ETN9/W64

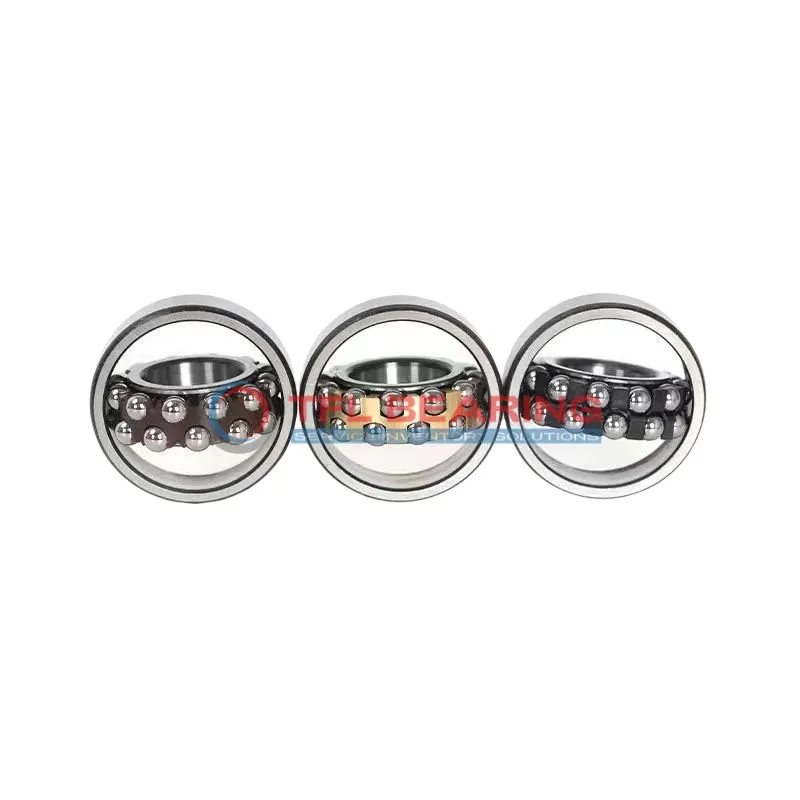

The 1205 ETN9/W64 is a self-aligning ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3218 lbf and operates smoothly at speeds up to 18,000 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or electric motors where slight misalignment may occur.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1205 ETN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 33.3 mm
  • Internal Diameter On Outer Ring 44.6 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18000 rpm
  • Weight 0.14 kg
  • Price($) 37.36

Features

Why Choose 1205 ETN9/W64 Bearing for Precision Tasks?

1205 ETN9/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, contributing to quieter operation and extended service life.

With a dynamic radial load capacity of 3218 lbf, it handles demanding applications efficiently.
The bearing’s maximum speed of 18,000 rpm makes it suitable for high-speed machinery.

1205 ETN9/W64 Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its lubricated design reduces maintenance needs while maintaining consistent performance.

The cylindrical bore and precise tolerances ensure easy installation and alignment.
This makes 1205 ETN9/W64 Bearing a practical choice for various industrial applications.

Application

Industrial Uses of 1205 ETN9/W64 Bearing
1205 ETN9/W64 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance even under heavy radial loads.

In automotive applications, 1205 ETN9/W64 Bearing fits well in gearboxes and wheel hubs, thanks to its durable chrome steel construction. The nylon cage reduces friction, making it suitable for high-speed operations.

For automation equipment like robotic arms, 1205 ETN9/W64 Bearing offers smooth movement and low maintenance. Its open seal design allows for easy re-lubrication, extending service life in continuous-use scenarios.

What Makes 1205 ETN9/W64 Bearing a Preferred Choice?
1205 ETN9/W64 Bearing is ideal for industrial fans, where its self-aligning capability handles shaft deflections effortlessly. The metric sizing ensures compatibility with a wide range of machinery.

In household appliances like washing machines, 1205 ETN9/W64 Bearing provides quiet and efficient operation. The lubricated design reduces wear, making it a cost-effective solution for daily use.

For medical imaging devices, 1205 ETN9/W64 Bearing’s precision and reliability are crucial. The chrome steel rings and balls ensure consistent performance in sensitive environments.

Built for Heavy-Duty Use: 1205 ETN9/W64 Bearing
1205 ETN9/W64 Bearing excels in construction equipment, where its robust design handles dust and debris. The wide temperature range makes it adaptable to various working conditions.

In agricultural machinery, 1205 ETN9/W64 Bearing’s self-aligning feature is invaluable for uneven loads. The nylon cage also resists corrosion, ideal for outdoor applications.

For packaging machines, 1205 ETN9/W64 Bearing ensures smooth operation at high speeds. Its low maintenance requirements reduce downtime, boosting productivity.

Automotive vs Aerospace: Applications of 1205 ETN9/W64 Bearing
In automotive systems, 1205 ETN9/W64 Bearing is often found in transmissions, where its radial load capacity is essential. The lubricated design ensures longevity even under constant stress.

For aerospace components, 1205 ETN9/W64 Bearing’s lightweight and precision are key advantages. The chrome steel construction meets the stringent demands of high-performance environments.

In both sectors, 1205 ETN9/W64 Bearing’s versatility and reliability make it a trusted choice. The self-aligning feature adds an extra layer of adaptability for complex installations.
