Self Aligning Ball Bearings 1204JC3
Self Aligning Ball Bearings 1204JC3

Self Aligning Ball Bearings 1204JC3

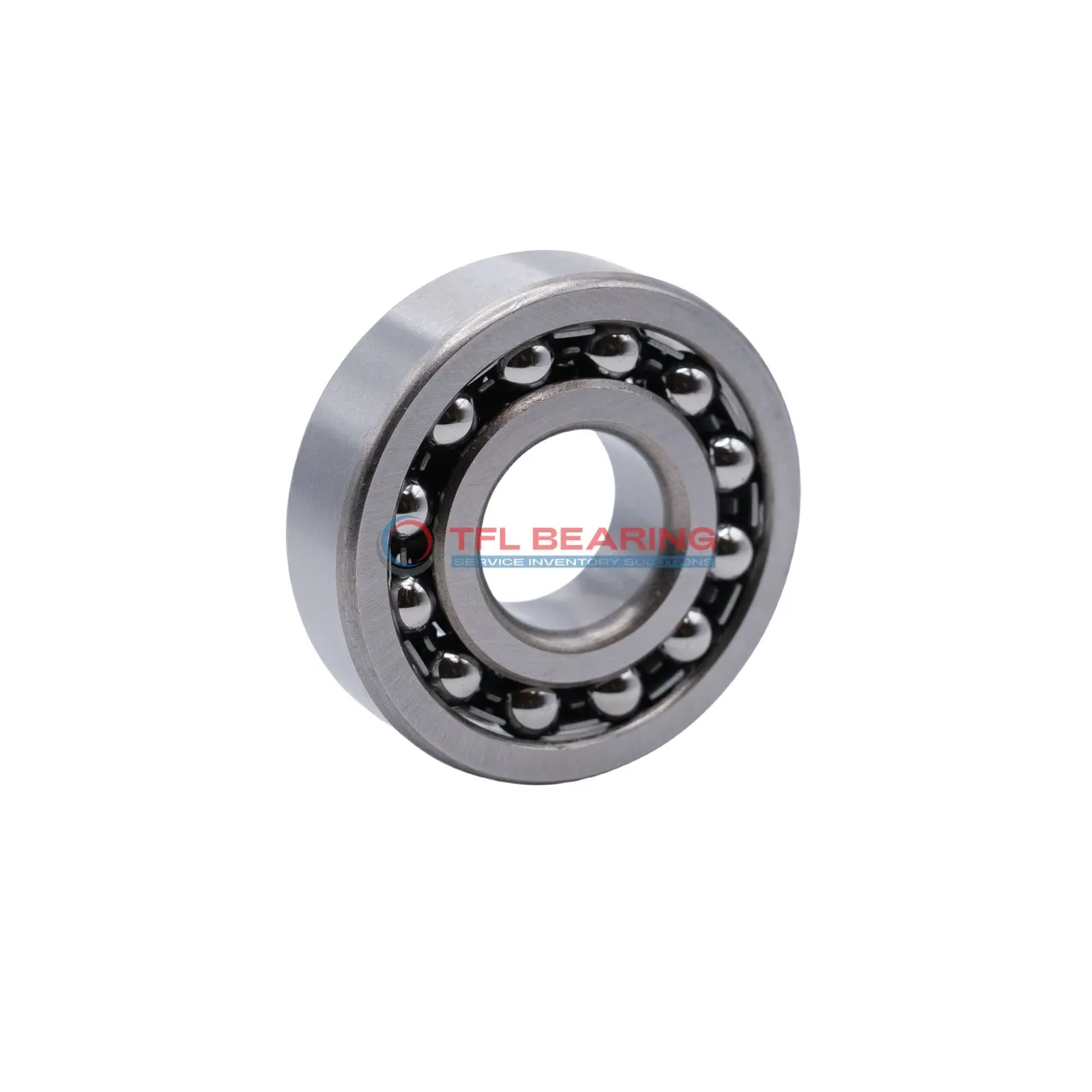

The 1204JC3 is a self-aligning ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2858 lbf and operates smoothly at speeds up to 20,000 RPM.

Its double-row design allows slight misalignment adjustments, reducing wear and tear. The open seal type makes lubrication straightforward, while the steel cage ensures durability.

This bearing suits environments with temperatures ranging from -30°C to 110°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing only 0.12kg, it’s lightweight yet robust. Ideal for applications like conveyor systems or electric motors where alignment flexibility is needed. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 1204JC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 28.88 mm
  • Internal Diameter On Outer Ring 40 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 2858 lbf
  • Static Radial Load 765 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.12 kg
  • Price($) 20.29

Features

How Does 1204JC3 Bearing Reduce Friction?

1204JC3 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The cylindrical bore and precise tolerances enhance alignment, reducing friction during operation.

Its dynamic radial load capacity of 2858 lbf makes it suitable for various applications.
The steel cage maintains ball positioning, minimising wear and extending service life.

With a maximum speed of 20,000 rpm, it offers efficient performance.
The C3 radial clearance allows for thermal expansion, ensuring reliability in diverse conditions.

Open seal design simplifies maintenance while the lubricated construction reduces operational friction.
Its compact size (20 mm×47 mm×14 mm) makes it versatile for different machinery needs.

Application

Industrial Uses of 1204JC3 Bearing
1204JC3 Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads in demanding environments.

Where Is 1204JC3 Bearing Used?
In automotive applications, 1204JC3 Bearing fits well in gearboxes and transmission systems, providing smooth operation even under varying loads. Its metric sizing makes it a versatile choice for both domestic and international vehicle models.

Built for Heavy-Duty Use: 1204JC3 Bearing
For industrial fans and blowers, 1204JC3 Bearing offers durability and low maintenance, thanks to its chrome steel construction. The open seal design allows for easy lubrication, extending its service life in continuous operation.

Automotive vs Industrial: Applications of 1204JC3 Bearing
While 1204JC3 Bearing excels in automotive transmissions, it’s equally effective in industrial pumps and compressors. Its C3 radial clearance ensures optimal performance under thermal expansion and heavy loads.

Perfect Fit for Automation: 1204JC3 Bearing
In robotic arms and automated assembly lines, 1204JC3 Bearing provides precise movement and alignment. The steel cage enhances stability, making it suitable for high-speed operations in manufacturing settings.
