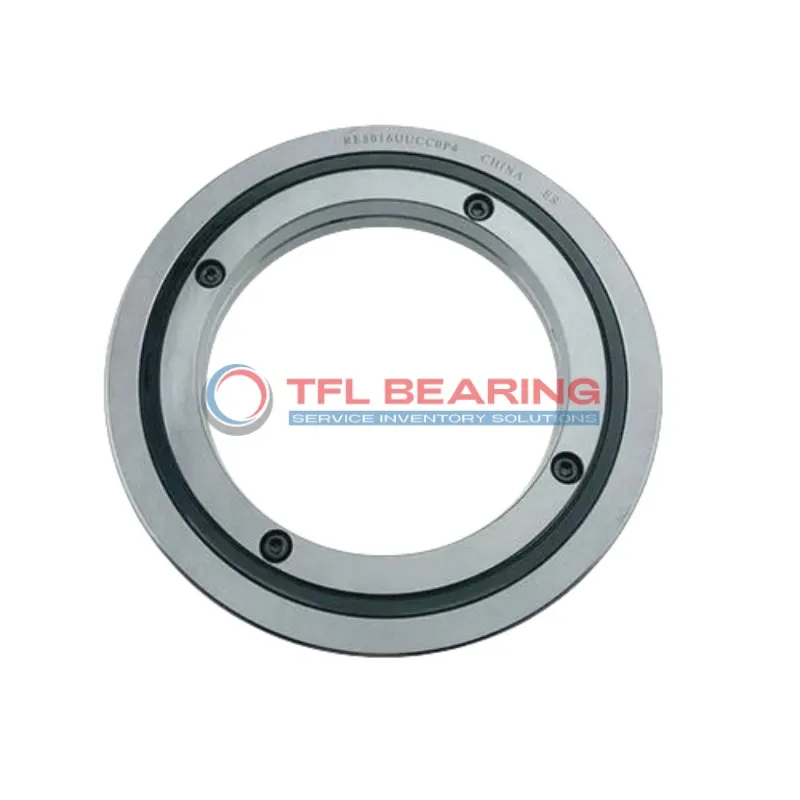

The RE9016UU is a crossed roller bearing with a 90mm bore and 130mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 31.4 kN and is designed for precision applications.
Its double-seal construction keeps contaminants out while retaining lubrication, ensuring smooth operation. The bearing features a compact 16mm width, making it suitable for space-constrained setups.
With a press-fit shaft mount, installation is straightforward, and the greasing holes (3mm and 1.6mm) simplify maintenance. It operates efficiently in temperatures from 0°C to 110°C.
Ideal for rotary tables or industrial automation, this ABEC5-rated bearing is also available in higher precision grades. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding environments.
Weighing 0.75kg, it balances durability with manageable handling. The 1mm chamfer and shoulder height specifications ensure compatibility with standard fittings.
"*" indicates required fields
How Does RE9016UU Bearing Handle Combined Loads?
RE9016UU Bearing features a crossed roller design, providing excellent stability under combined loads.
Its steel rings and rollers ensure high load capacity, with a basic load rating of 31.4 kN.
The double seal design protects against contaminants, enhancing durability in harsh environments.
With a temperature range of 0-230°F, it performs reliably in various industrial applications.
Industrial Uses of RE9016UU Bearing
RE9016UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables and indexing heads. The double seal helps keep contaminants out, ensuring long service life in dusty workshop conditions.
Where Is RE9016UU Bearing Used?
You’ll often find RE9016UU Bearing in robotics, particularly in articulated arms that require smooth, precise movement. Its press-fit shaft mounting makes installation straightforward, while the steel construction handles combined loads effortlessly.
Built for Heavy-Duty Use: RE9016UU Bearing
RE9016UU Bearing works well in packaging machinery, where its ABEC5 precision rating maintains consistent performance under rapid cycling. The grease holes allow for easy re-lubrication during routine maintenance checks.
Medical vs Industrial: Where RE9016UU Bearing Excels
In medical imaging devices, RE9016UU Bearing offers quiet operation crucial for patient comfort, while its industrial applications include conveyor systems needing high radial and axial load capacity. The temperature range suits most operating environments.
Perfect Fit for Automation: RE9016UU Bearing
RE9016UU Bearing integrates seamlessly into CNC equipment, where its compact 16mm width saves space without sacrificing load capacity. The steel rollers distribute stress evenly, preventing premature wear during continuous operation.
