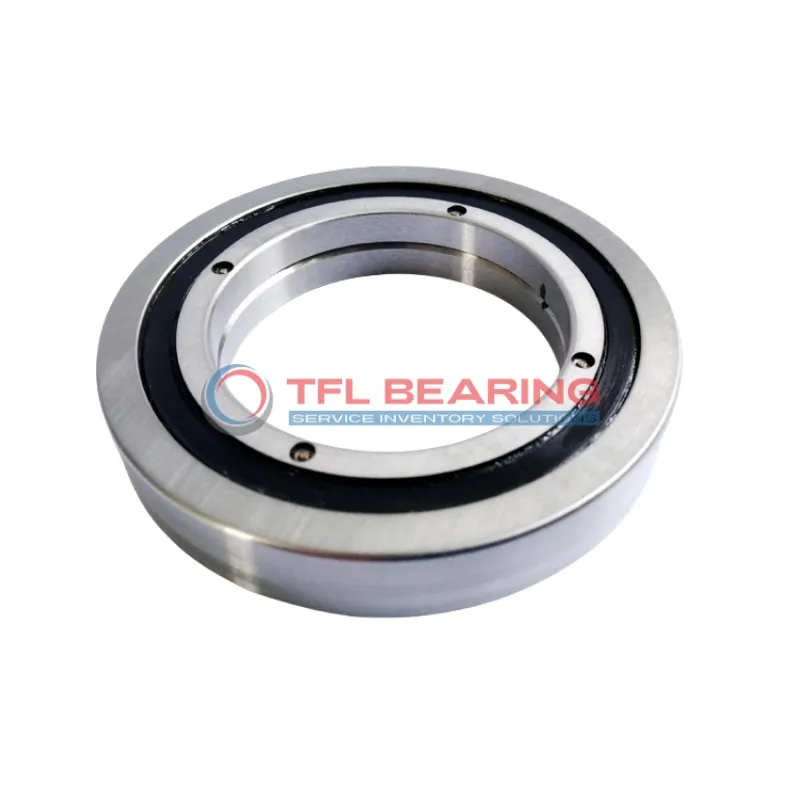

The RE45025UU is a crossed roller bearing measuring 450mm in bore diameter and 500mm in outer diameter, with a compact width of 25mm. Made from sturdy steel, it handles combined loads up to 61.7 kN and is designed for high precision.
Its double-seal construction keeps contaminants out while maintaining smooth operation. The bearing requires lubrication and features greasing holes for easy maintenance, ensuring long service life.
With a press-fit shaft mount, it stays securely in place during operation. Suitable for temperatures from 0°C to 110°C, it meets ABEC5 standards (higher grades available).
Ideal for precision machinery like robotics or CNC equipment, where accuracy and durability are key. Compliant with RoHS and REACH regulations, it’s a reliable choice for industrial applications. Weighing 6.6kg, it balances strength and manageability.
"*" indicates required fields
How Does RE45025UU Bearing Handle Combined Loads?
RE45025UU Bearing features a crossed roller design, providing stability under combined loads.
Its steel rings and rollers ensure durability, with a basic load rating of 61.7 kN.
The double seal design protects against contaminants, extending the bearing’s service life.
With a temperature range of 0-230°F, it performs reliably in various conditions.
RE45025UU Bearing’s press-fit shaft mount simplifies installation, reducing setup time.
Its ABEC5 rating ensures precision, with options for higher ABEC7/9 grades.
The greasing holes allow easy lubrication, maintaining smooth operation.
Weighing 6.6 kg, it balances strength and manageability for industrial use.
Industrial Uses of RE45025UU Bearing
RE45025UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The double seal helps keep contaminants out, ensuring long service life in demanding environments.
Where Is RE45025UU Bearing Used?
You’ll often find RE45025UU Bearing in robotics, particularly in articulated arms that require precise movement under combined loads. Its press-fit mounting makes installation straightforward, saving time during assembly.
Built for Heavy-Duty Use: RE45025UU Bearing
This bearing handles heavy loads in applications like industrial turntables, thanks to its steel construction and ABEC5 precision rating. The grease holes allow for easy maintenance, extending its operational lifespan.
Automotive vs Aerospace: Applications of RE45025UU Bearing
In automotive testing equipment, RE45025UU Bearing supports precise measurement devices, while in aerospace, it’s used in satellite antenna positioning systems. Its wide temperature range makes it versatile for different environments.
Perfect Fit for Automation: RE45025UU Bearing
RE45025UU Bearing works well in automated production lines, particularly in pick-and-place systems where smooth rotation is essential. The compact width of 25mm helps save space in tight machine designs.
