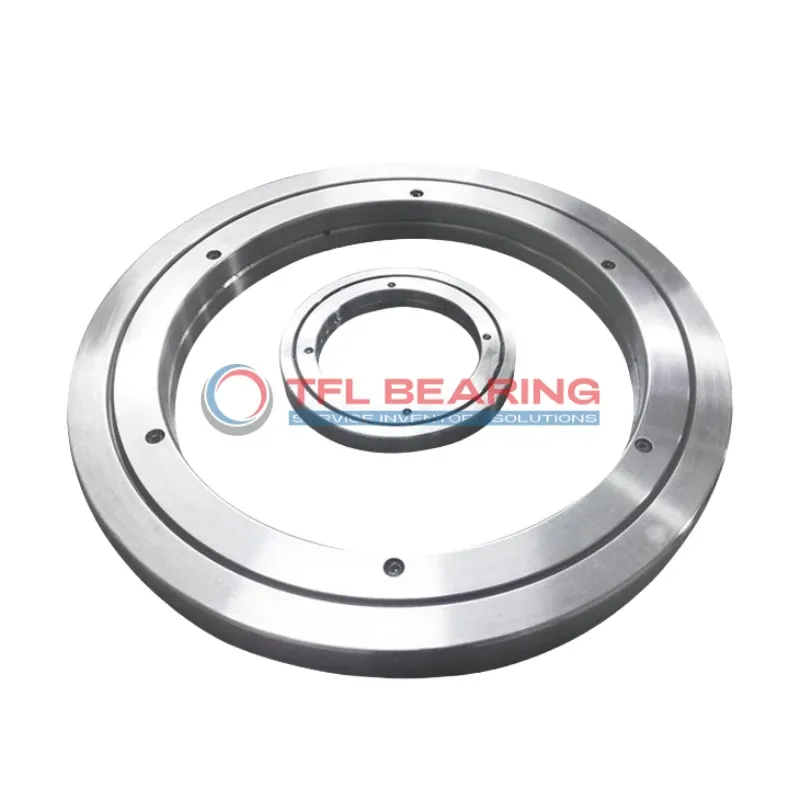

RE Crossed Roller Bearings RE15030

The RE15030 is a crossed roller bearing measuring 150mm by 230mm by 30mm, designed for combined loads. Made from sturdy steel, it handles loads up to 100 kN and operates smoothly in temperatures from 0°F to 230°F.

Its open design allows easy lubrication, with greasing holes of 4.5mm and 3mm for convenient maintenance. The press-fit shaft mount ensures a secure installation.

This single-row bearing is ABEC5 rated, with options for higher precision (ABEC7/9). It’s ideal for applications requiring precise rotation, such as robotics or machine tools.

Weighing 5.3kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial use.

Get A Free Quote

"*" indicates required fields

Description

Features

Application

Q&A

Product Parameters

Part Number RE15030
Brand TFL
Size 150 mm x 230 mm x 30 mm
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined
Construction Single Row
Seal Type Open
Bore Dia 150 mm
Outer Dia 230 mm
Width 30 mm
Greasing Hole(a) 4.5 mm
Greasing Hole(b) 3 mm
R(min) 1.5 mm
Shoulder Height Ds(max) 173 mm
Shoulder Height Dh(min) 210 mm
Holes Without Holes
Ring Material Steel
Roller Material Steel
Basic Load Rating C 100 kN
Basic Load Rating Co 156 kN
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230 °F
ABEC Rating ABEC5(Available in ABEC7/9)
RoHS Compliant
REACH Compliant
Weight 5.3 Kg

Features

How Is RE15030 Bearing Engineered for Reliability?

RE15030 Bearing features a single-row crossed roller design, ideal for handling combined loads with precision.
Its steel rings and rollers provide a basic load rating of 100 kN, ensuring strength in demanding applications.

The open construction allows for easy lubrication, maintaining smooth operation over time.
With a temperature range of 0-230°F, RE15030 Bearing performs reliably in varied conditions.

Press-fit shaft mounting simplifies installation, reducing downtime and maintenance efforts.
Its ABEC5 rating (with options for ABEC7/9) ensures high precision for industrial use.

Application

Industrial Uses of RE15030 Bearing
RE15030 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables and indexing heads. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes RE15030 Bearing a Preferred Choice?
In robotics, RE15030 Bearing supports articulated arms and joints, offering smooth movement under combined loads. Its steel construction and ABEC5 rating make it reliable for high-precision applications.

Built for Heavy-Duty Use: RE15030 Bearing
This bearing excels in industrial automation systems, such as CNC machines, where its press-fit mounting ensures stability. The wide temperature range also makes it suitable for various operating environments.

Automotive vs Aerospace: Applications of RE15030 Bearing
In automotive testing equipment, RE15030 Bearing handles combined loads with ease, while in aerospace, its precision supports satellite positioning systems. The metric sizing ensures compatibility with global standards.

Perfect Fit for Automation: RE15030 Bearing
RE15030 Bearing is ideal for 3D printers and robotic arms, where its low friction and high accuracy are crucial. The steel rollers and rings provide durability even in continuous operation.
