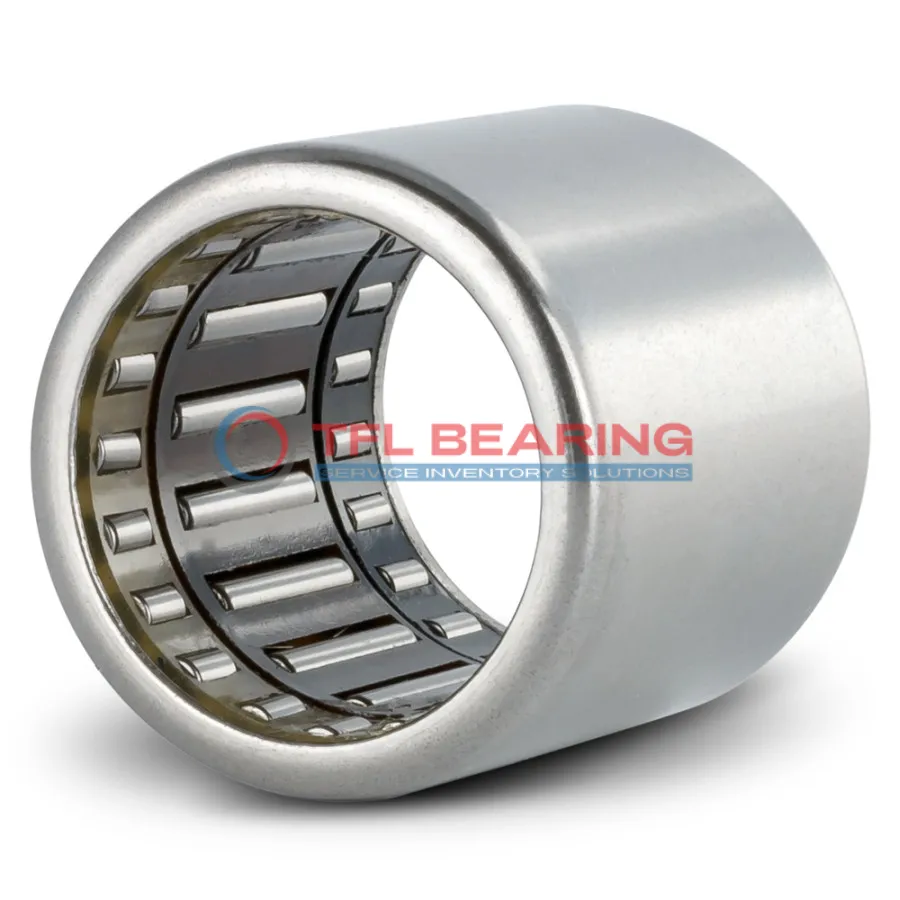

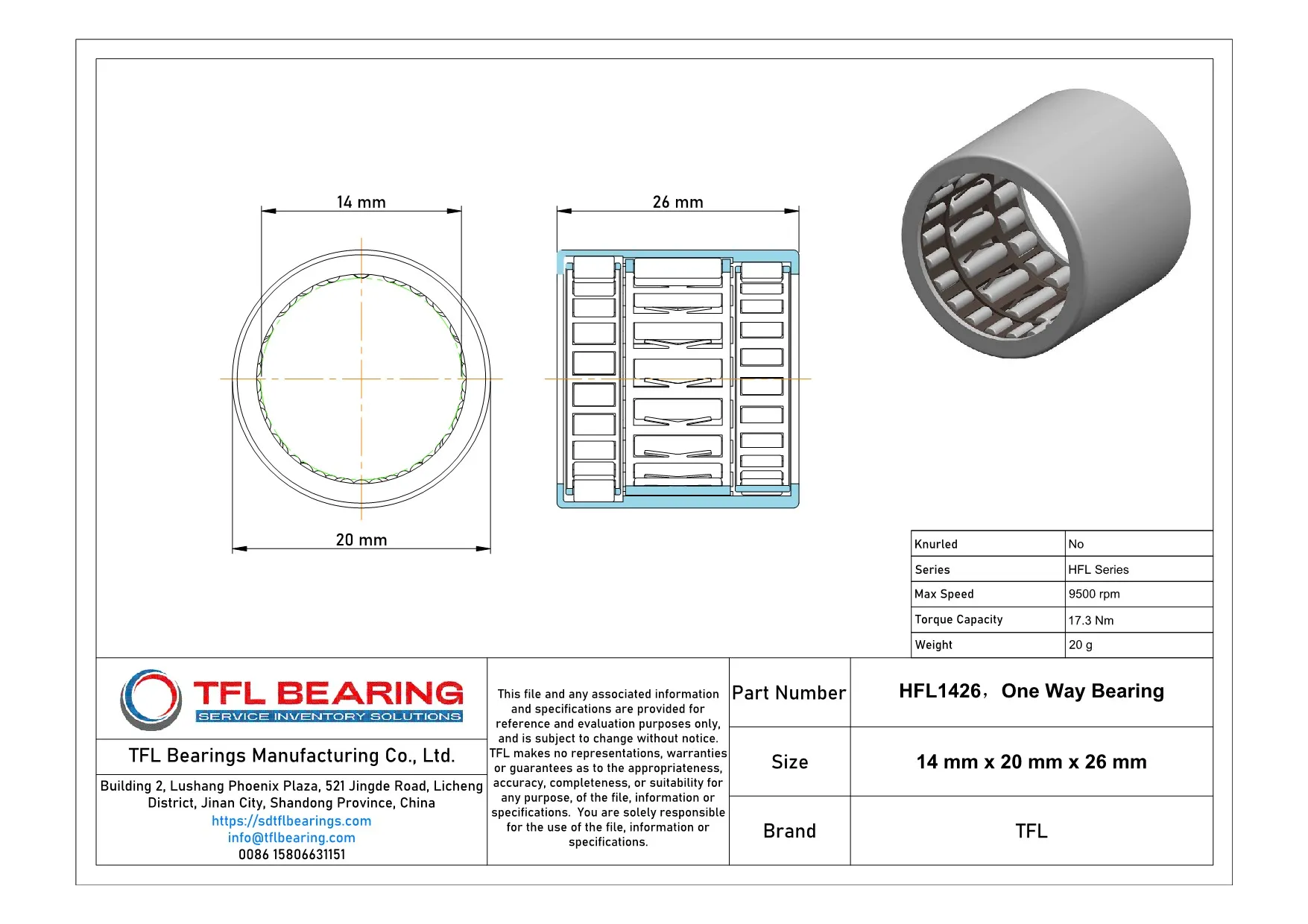

The HFL1426 is a one-way needle roller bearing with a 14mm bore and 20mm outer diameter, crafted from sturdy steel. It supports torque up to 17.3 Nm and spins smoothly at speeds up to 9500 RPM.
Its triple-row needle design ensures reliable one-directional movement, while the open construction allows for easy lubrication. The press-fit shaft mount provides a secure installation.
This bearing is interchangeable with INA models, making it a practical choice for replacements. It performs well in temperatures from -30°C to 110°C, suitable for industrial or automotive applications.
Weighing just 20g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does HFL1426 Bearing Handle High-Speed Applications?
HFL1426 Bearing is built with a triple-row needle design, offering efficient torque transmission up to 17.3 Nm.
Its steel construction ensures durability and reliability even at high speeds of 9,500 rpm.
The open seal design allows for easy lubrication, maintaining smooth operation over time.
With a temperature range of -30° to 110°C, it performs well in various environments.
Why Choose HFL1426 Bearing for Precision Tasks?
HFL1426 Bearing’s press-fit shaft mount ensures secure and precise installation every time.
The steel cage and needles provide consistent performance, reducing wear in demanding applications.
Its lubricated design minimises friction, enhancing efficiency and extending service life.
Suitable for a wide temperature range, it adapts to different working conditions effortlessly.
Engineered for Reliability: HFL1426 Bearing
HFL1426 Bearing features a robust steel construction, capable of handling high torque and speed.
The triple-row needle design distributes loads evenly, improving overall performance.
Its open seal type simplifies maintenance, ensuring long-term reliability.
With a compact weight of 20g, it’s ideal for applications where space and weight matter.
Steel vs Ceramic Bearings: Strengths of HFL1426 Bearing
HFL1426 Bearing’s all-steel construction provides excellent strength and durability for heavy-duty use.
The triple-row needle design enhances load distribution, making it suitable for high-torque applications.
Its press-fit mounting ensures a secure connection, reducing slippage under stress.
With a broad temperature tolerance, it performs reliably in various industrial settings.
Key Fields for HFL1426 Bearing
HFL1426 Bearing is commonly used in industrial machinery, especially in conveyor systems where its one-way rotation feature ensures smooth operation. The open design allows for easy lubrication, extending its service life in demanding environments.
In automotive applications, HFL1426 Bearing fits well in gearboxes and starter motors, providing reliable torque transmission. Its press-fit mounting makes installation straightforward, even in tight spaces.
For automation equipment, HFL1426 Bearing’s needle roller design offers high load capacity in compact assemblies like robotic arms. The steel construction ensures durability under frequent use.
In consumer electronics, HFL1426 Bearing can be found in printers and power tools, where its precise rotation control enhances performance. The lightweight design also helps reduce overall device weight.
