One Way Bearing HFL1226
One Way Bearing HFL1226

One Way Bearing HFL1226

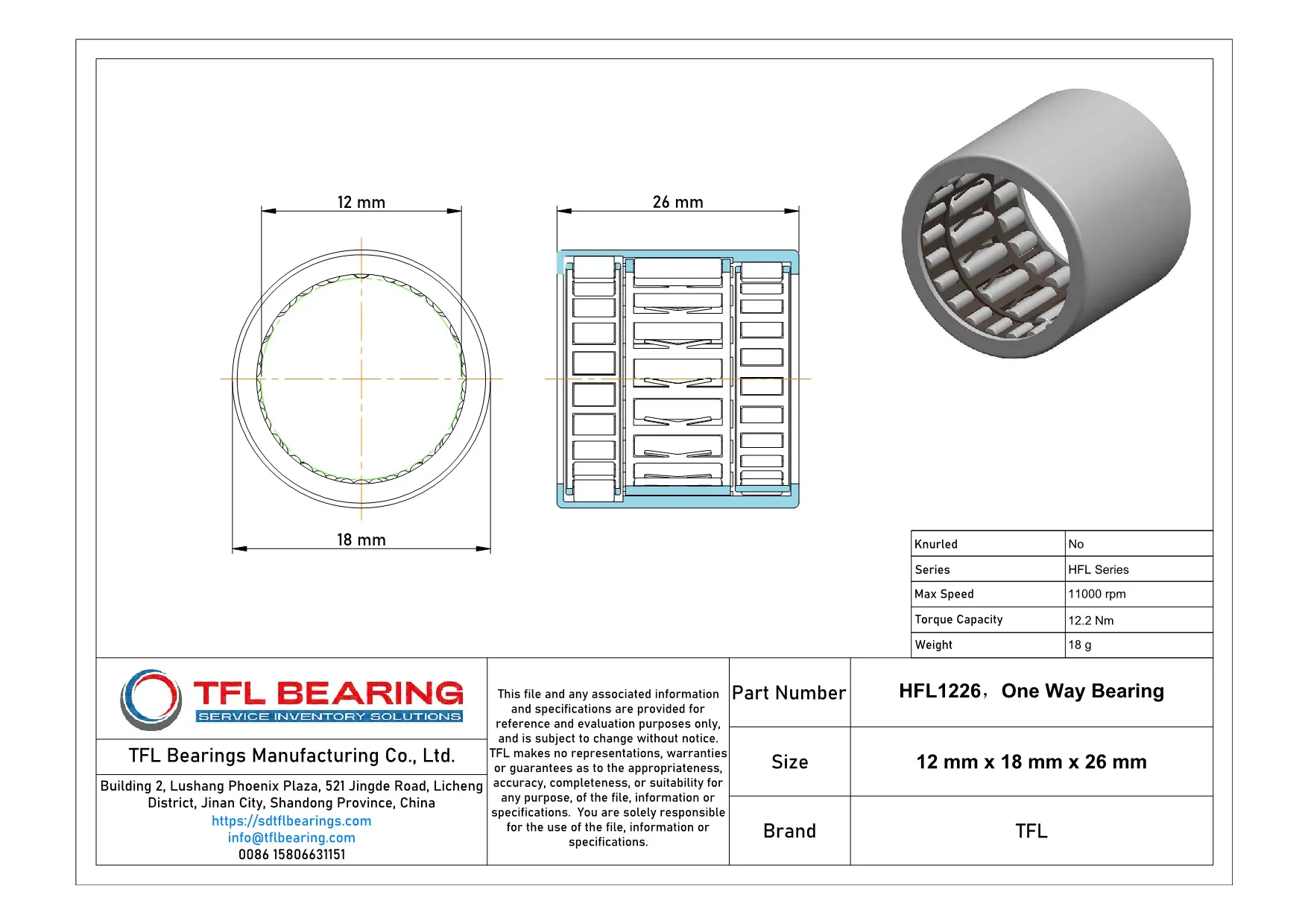

The HFL1226 is a one-way needle bearing with a 12mm bore and 18mm outer diameter, built from sturdy steel for reliable performance. It supports high speeds up to 11000 RPM and handles torque up to 12.2 Nm, making it suitable for demanding applications.
Its triple-row needle design ensures smooth operation, while the open seal allows for easy lubrication. The press-fit shaft mount provides a secure installation, reducing slippage during use.
This bearing works well in temperatures ranging from -30°C to 110°C, adapting to various environments. It’s interchangeable with INA bearings, offering flexibility for replacements.
Weighing just 18g, it’s lightweight yet durable. Ideal for machinery where one-directional rotation is needed, such as conveyor systems or automotive components. Compliant with RoHS standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number HFL1226
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Outer Dia 18 mm
  • Width 26 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Triple Row
  • Knurled No
  • Seal Type Open
  • Series HFL Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 11000 rpm
  • Torque Capacity 12.2 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 18 g

Features

Why Choose HFL1226 Bearing for Precision Tasks?
HFL1226 Bearing features a triple-row needle design, ensuring precise operation in compact spaces.
Its steel construction provides durability and reliable performance under high-speed conditions.
With a maximum speed of 11,000 rpm, HFL1226 Bearing excels in demanding applications.
The press-fit shaft mount simplifies installation, saving time and effort.
HFL1226 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its lubricated design reduces friction, enhancing efficiency and longevity.

Application

Key Fields for HFL1226 Bearing
HFL1226 Bearing is commonly used in industrial machinery, especially in conveyor systems where its one-way rotation feature prevents backdriving. The open design allows for easy lubrication, extending its service life in demanding conditions.
In automotive applications, HFL1226 Bearing fits well in gearbox mechanisms, ensuring smooth one-directional movement. Its press-fit mounting makes installation straightforward, even in compact spaces.
For automation equipment, HFL1226 Bearing’s triple-row needle design provides reliable performance in robotic arms. The steel construction ensures durability, even under high-speed operations up to 11,000 rpm.
Where Is HFL1226 Bearing Used?
You’ll often spot HFL1226 Bearing in printers, where its one-way function helps control paper feed mechanisms. The lubricated design keeps it running quietly, ideal for office environments.
In power tools, HFL1226 Bearing’s torque capacity of 12.2 Nm handles the stress of frequent start-stop cycles. Its metric sizing makes it compatible with various European and Asian tool brands.
Built for Heavy-Duty Use: HFL1226 Bearing
HFL1226 Bearing shines in packaging machines, where its steel needles withstand constant rotational stress. The temperature range from -30° to 110°C ensures reliability in both hot and cold settings.
For fitness equipment like treadmills, HFL1226 Bearing’s one-way action keeps belts moving smoothly. Its lightweight design (just 18g) doesn’t add unnecessary bulk to compact devices.
Automotive vs Aerospace: Applications of HFL1226 Bearing
In cars, HFL1226 Bearing often appears in starter motors, where its press-fit design simplifies assembly. The steel construction resists wear from frequent engine starts.
For drones, HFL1226 Bearing’s low weight helps maintain flight efficiency. Its high-speed capability suits the rapid rotations of propeller mechanisms.
