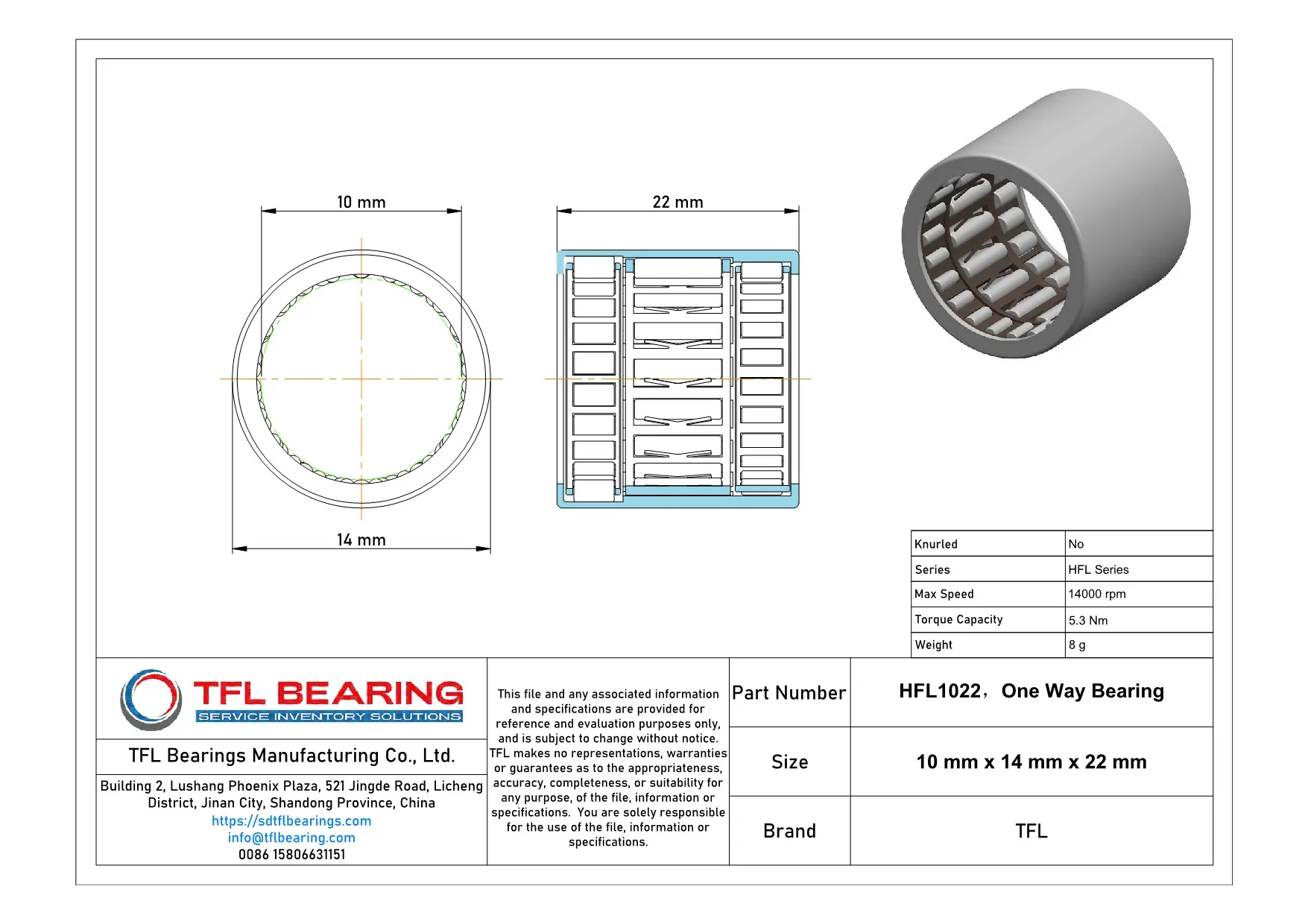

The HFL1022 is a one-way needle bearing with a 10mm bore and 14mm outer diameter, crafted from sturdy steel for reliable performance. It supports high speeds up to 14000 RPM and handles torque up to 5.3 Nm, making it suitable for demanding applications.
Its triple-row needle design ensures smooth operation, while the open seal allows for easy lubrication. The press-fit shaft mount provides a secure installation, reducing slippage during use.
This bearing works well in temperatures ranging from -30°C to 110°C, offering versatility in various environments. It’s interchangeable with INA bearings, simplifying replacements.
Weighing just 8 grams, it’s lightweight yet durable. Ideal for machinery where one-way rotation is needed, such as conveyor systems or automotive components. Compliant with RoHS standards for safe use.
"*" indicates required fields
Performance Features of HFL1022 Bearing
HFL1022 Bearing is constructed with triple-row needle rollers, offering high torque capacity up to 5.3 Nm.
Its steel components provide durability and reliable performance in various applications.
The open design allows for easy lubrication, ensuring smooth operation at speeds up to 14,000 rpm.
HFL1022 Bearing operates efficiently within a temperature range of -30° to 110°C.
With its press-fit shaft mount, installation is straightforward and secure.
The lightweight design at just 8 grams makes it suitable for compact applications.
Industrial Uses of HFL1022 Bearing
HFL1022 Bearing is commonly used in conveyor systems, where its one-way rotation feature ensures smooth material handling. The triple-row needle design provides reliable support for high-speed operations.
Where Is HFL1022 Bearing Used?
You’ll often find HFL1022 Bearing in automotive transmissions, where it helps manage torque efficiently. Its press-fit design makes installation straightforward, even in tight spaces.
Perfect Fit for Automation: HFL1022 Bearing
In robotic arms, HFL1022 Bearing’s low weight and high-speed capability make it ideal for precise movements. The steel construction ensures durability in continuous operation.
Light-Duty vs Heavy-Duty: Best Uses for HFL1022 Bearing
For light-duty applications like printers, HFL1022 Bearing offers quiet and efficient performance. In heavier machinery, its torque capacity handles demanding loads without issue.
Medical vs Industrial: Where HFL1022 Bearing Excels
In medical devices like centrifuges, HFL1022 Bearing’s precision is key. Industrial applications benefit from its robust design and ease of maintenance.
