One Way Bearing HFL0822-KF
One Way Bearing HFL0822-KF

One Way Bearing HFL0822-KF

The HFL0822-KF is a one-way needle roller bearing with an 8mm bore and 12mm outer diameter, crafted from sturdy steel for reliable performance. It supports high speeds up to 17000 RPM and handles torque up to 3.15 Nm.
Its triple-row needle design ensures smooth operation, while the open seal allows easy lubrication. The press-fit shaft mount provides a secure fit for hassle-free installation.
This bearing is ideal for applications like small motors or machinery where one-directional movement is needed. It works well in temperatures ranging from -30°C to 110°C.
Weighing just 7g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a safe choice for various industrial uses. Interchangeable with INA bearings for easy replacement.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

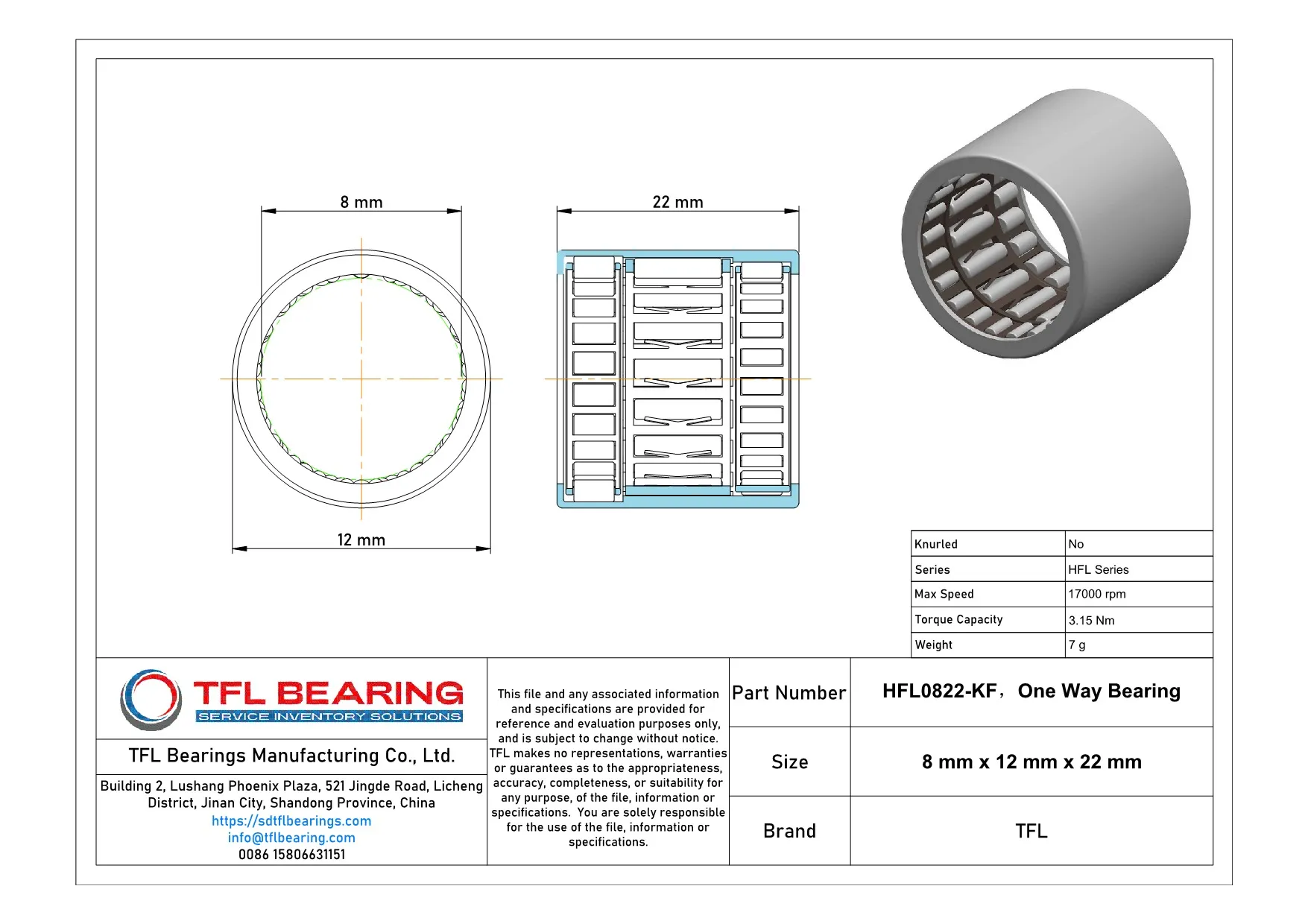

Product Parameters

  • Part Number HFL0822-KF
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 8 mm
  • Outer Dia 12 mm
  • Width 22 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Triple Row
  • Knurled No
  • Seal Type Open
  • Series HFL Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Plastic
  • Max Speed 17000 rpm
  • Torque Capacity 3.15 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 7 g

Features

How Does HFL0822-KF Bearing Achieve High-Speed Performance?
HFL0822-KF Bearing is built with a triple-row needle design, ensuring stability even at high speeds.
Its steel construction provides durability, while the plastic spring enhances smooth operation.
With a maximum speed of 17,000 rpm, it is suitable for demanding applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
What Makes HFL0822-KF Bearing Suitable for Precision Tasks?
HFL0822-KF Bearing’s needle roller design offers precise motion control, ideal for intricate mechanisms.
The open seal type allows easy lubrication, maintaining performance over time.
Its torque capacity of 3.15 Nm ensures reliable operation in various settings.
The compact size and lightweight design make it versatile for different applications.
Engineered for Efficiency: HFL0822-KF Bearing
HFL0822-KF Bearing features a steel cage and needles, providing strength and reducing wear.
Its lubricated design ensures smooth operation, even under continuous use.
The temperature range of -30° to 110°C allows it to perform in diverse environments.
Weighing just 7 grams, it is perfect for applications where weight is a concern.
Steel vs Plastic Bearings: Strengths of HFL0822-KF Bearing
HFL0822-KF Bearing combines steel rings and needles with a plastic spring for balanced performance.
This mix of materials ensures durability while maintaining smooth operation.
The press-fit mounting type offers secure attachment, reducing the risk of slippage.
Its compliance with RoHS standards makes it an environmentally friendly choice.

Application

Industrial Uses of HFL0822-KF Bearing
HFL0822-KF Bearing is commonly used in industrial machinery, especially in conveyor systems where its one-way rotation feature prevents backdriving. The triple-row needle design ensures smooth operation even under high radial loads.
Where Is HFL0822-KF Bearing Used?
You’ll often spot HFL0822-KF Bearing in automotive applications like starter motors, where its press-fit design provides a secure hold. Its lubricated construction helps maintain performance over long periods.
Built for Heavy-Duty Use: HFL0822-KF Bearing
HFL0822-KF Bearing handles high-speed operations up to 17,000 rpm, making it suitable for power tools and small engines. The steel construction offers durability without adding unnecessary weight.
Automotive vs Industrial: Applications of HFL0822-KF Bearing
In automotive settings, HFL0822-KF Bearing works well in gearbox mechanisms, while industrial uses include packaging machines. Its compact size and metric dimensions make it versatile for various equipment.
Perfect Fit for Automation: HFL0822-KF Bearing
HFL0822-KF Bearing is a reliable choice for robotic arms and automated assembly lines, thanks to its precise one-way motion control. The open seal design allows for easy lubrication when needed.
