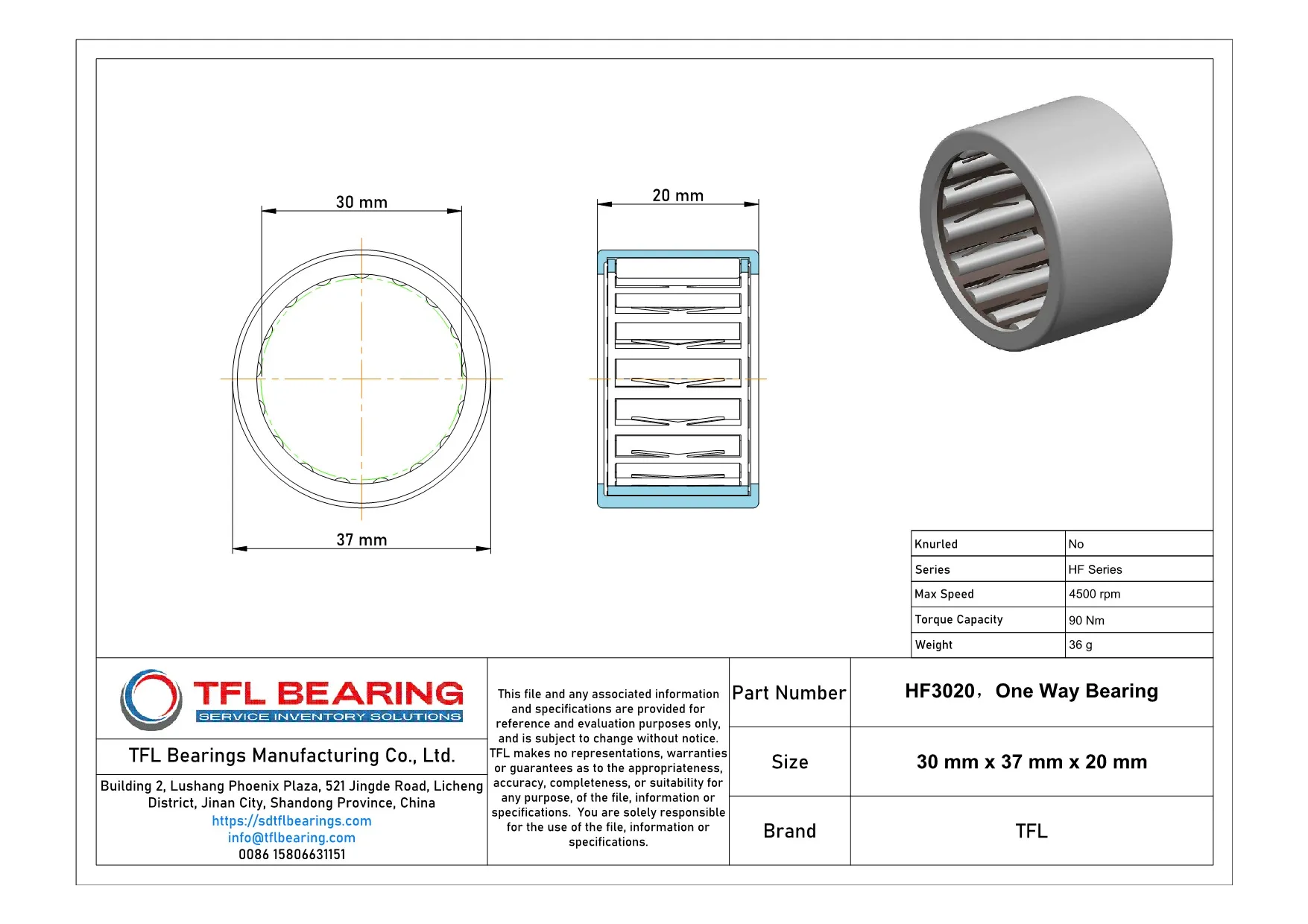

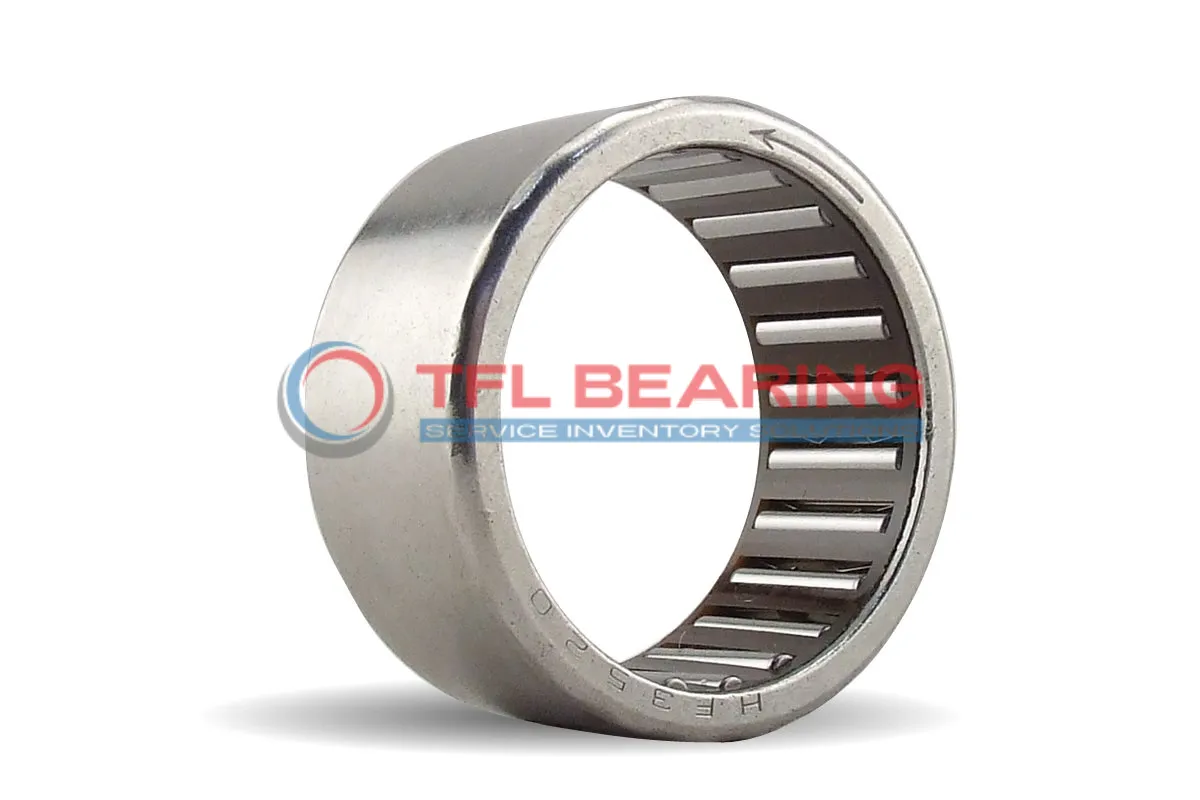

The HF3020 is a one-way needle bearing with a 30mm bore and 37mm outer diameter, crafted from sturdy steel for reliable performance. It supports torque up to 90 Nm and operates smoothly at speeds up to 4500 RPM.
Its open design simplifies lubrication, while the steel cage and needles ensure durability. The press-fit shaft mount provides a secure installation.
This bearing is ideal for applications like conveyor systems or machinery where one-directional rotation is needed. It works in temperatures from -30°C to 110°C.
Weighing just 36g, it’s lightweight yet robust. Compliant with RoHS standards, it’s a practical choice for replacements, interchangeable with INA models.
"*" indicates required fields
How Does HF3020 Bearing Handle High Torque?
HF3020 Bearing is built with a robust steel construction, capable of handling torque up to 90 Nm.
Its needle roller design ensures efficient power transmission in one direction, making it ideal for precise applications.
The press-fit shaft mount type simplifies installation, reducing downtime during assembly.
With a maximum speed of 4,500 rpm, HF3020 Bearing balances performance and durability.
Its open design allows for easy lubrication, ensuring smooth operation over time.
The steel cage and needles enhance longevity, even in demanding conditions.
Common Applications of HF3020 Bearing
HF3020 Bearing is widely used in industrial machinery, especially in conveyor systems where one-way rotation is needed. Its steel construction ensures durability even in demanding environments.
In automotive applications, HF3020 Bearing fits well in gearbox mechanisms, providing smooth one-directional motion. The press-fit design makes installation straightforward for mechanics.
For automation equipment, HF3020 Bearing works reliably in robotic arms, handling repetitive movements with precision. The open seal type allows for easy lubrication maintenance.
In consumer electronics like printers, HF3020 Bearing ensures consistent paper feed mechanisms. Its compact size and metric dimensions make it versatile for various small devices.
Medical devices such as lab equipment benefit from HF3020 Bearing’s precise one-way motion control. The steel needle rollers provide quiet operation, essential for sensitive environments.
