One Way Bearing HF1616
One Way Bearing HF1616

One Way Bearing HF1616

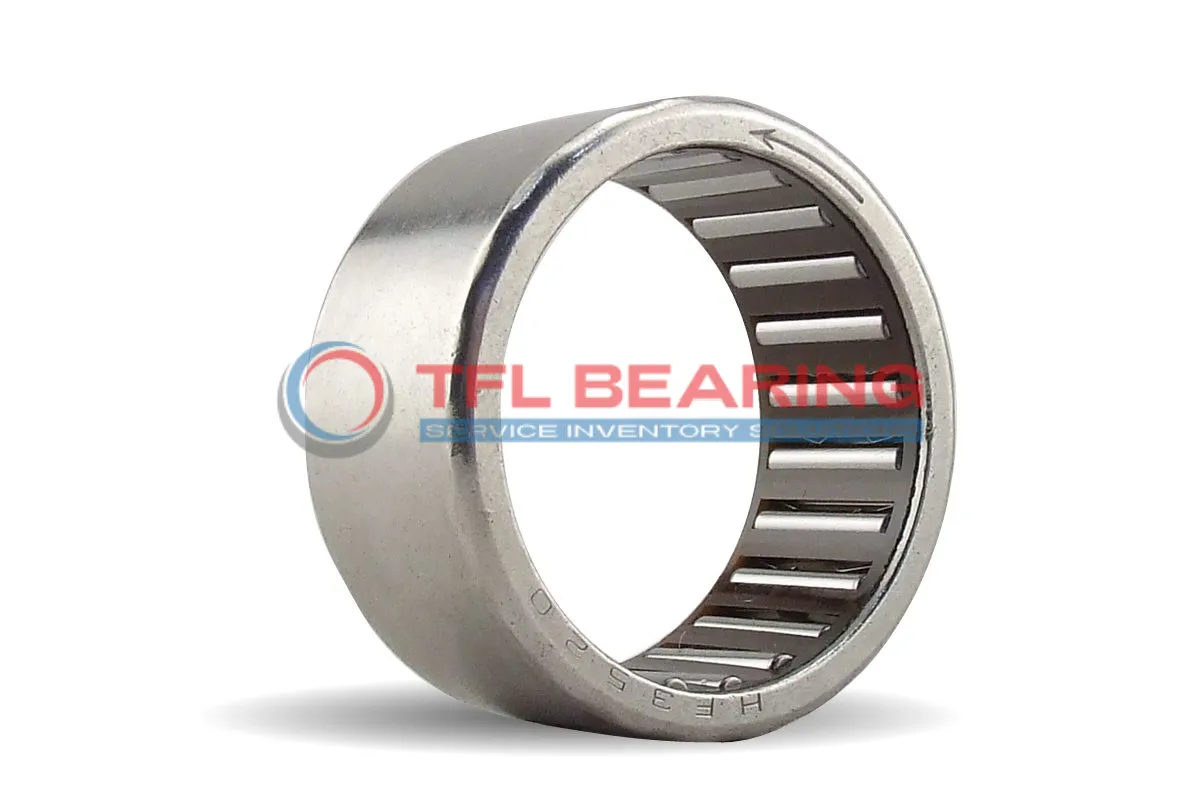

The HF1616 is a one-way needle bearing with a 16mm bore and 22mm outer diameter, crafted from sturdy steel for reliable performance. It supports speeds up to 8500 RPM and handles torque up to 20.5 Nm, making it suitable for demanding applications.
Its open design simplifies lubrication, while the press-fit shaft mount ensures a secure installation. The steel cage and needles enhance durability under continuous use.
This bearing operates smoothly in temperatures ranging from -30°C to 110°C. It’s interchangeable with INA models, offering flexibility for replacements.
Ideal for machinery requiring one-direction rotation, such as conveyor systems or automotive components. Weighing just 14g, it’s lightweight yet robust for its compact size. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

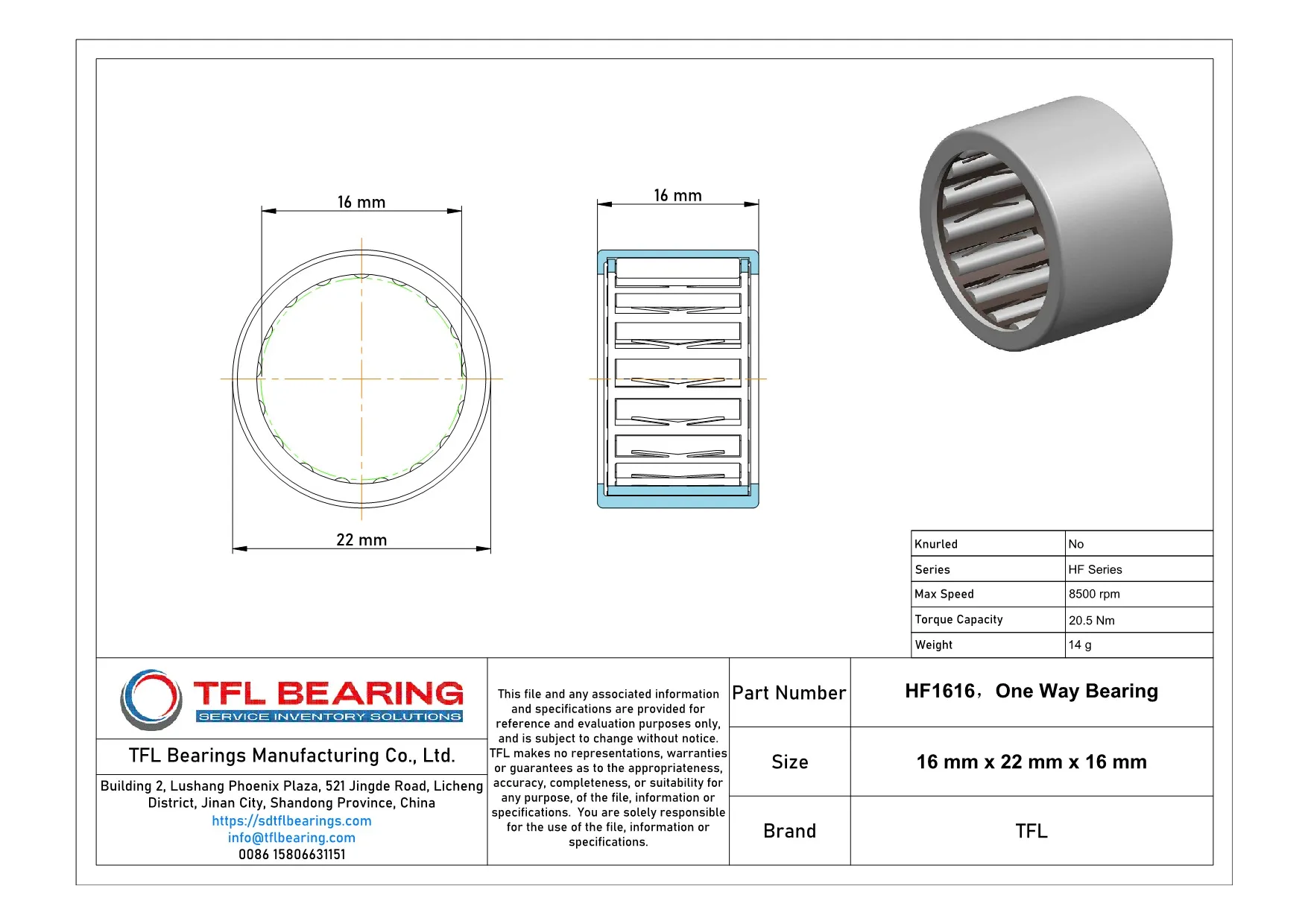

Product Parameters

  • Part Number HF1616
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 16 mm
  • Outer Dia 22 mm
  • Width 16 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Knurled No
  • Seal Type Open
  • Series HF Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 8500 rpm
  • Torque Capacity 20.5 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 14 g

Features

How Does HF1616 Bearing Handle High-Speed Applications?
HF1616 Bearing is crafted with steel rings and needles, ensuring durability in high-speed operations.
Its maximum speed of 8,500 rpm makes it suitable for demanding mechanical systems.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a torque capacity of 20.5 Nm, it delivers reliable performance under load.

Application

Common Applications of HF1616 Bearing
HF1616 Bearing is widely used in industrial machinery, especially in conveyor systems where one-way rotation is needed. Its open design and steel construction make it durable for continuous operation.
In automotive applications, HF1616 Bearing fits well in gearbox mechanisms, ensuring smooth one-directional movement. The press-fit mounting simplifies installation in tight spaces.
For automation equipment, HF1616 Bearing works efficiently in robotic arms, providing reliable torque transmission. Its lubricated design reduces maintenance needs.
In household appliances like printers, HF1616 Bearing supports precise paper feed mechanisms. The compact size and lightweight design make it ideal for small devices.
