One Way Bearing HF1216
One Way Bearing HF1216

One Way Bearing HF1216

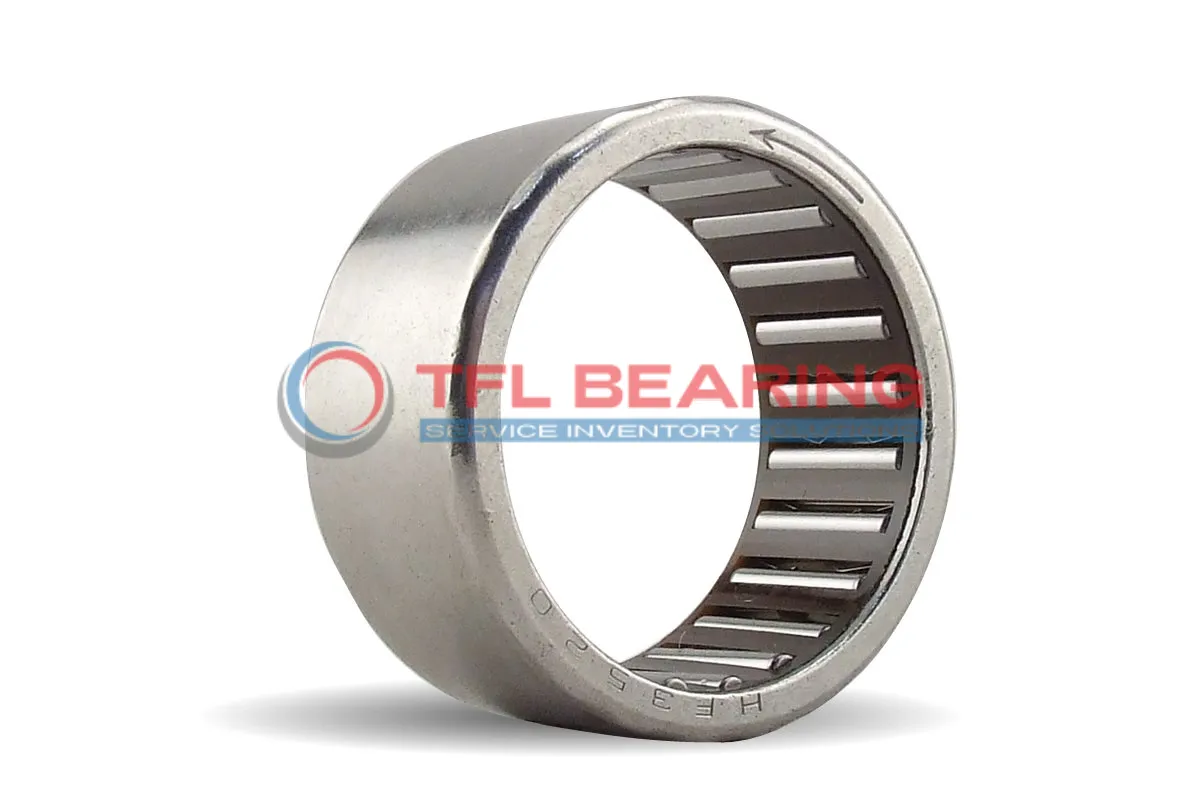

The HF1216 is a one-way needle bearing with a 12mm bore and 18mm outer diameter, crafted from sturdy steel. It spins smoothly at speeds up to 11000 RPM and handles torque up to 12.2 Nm.
Its open design allows easy lubrication, while the steel cage and needles ensure durability. The bearing operates reliably in temperatures from -30°C to 110°C.
This press-fit model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like conveyor systems or machinery where one-directional rotation is needed.
Weighing just 11g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

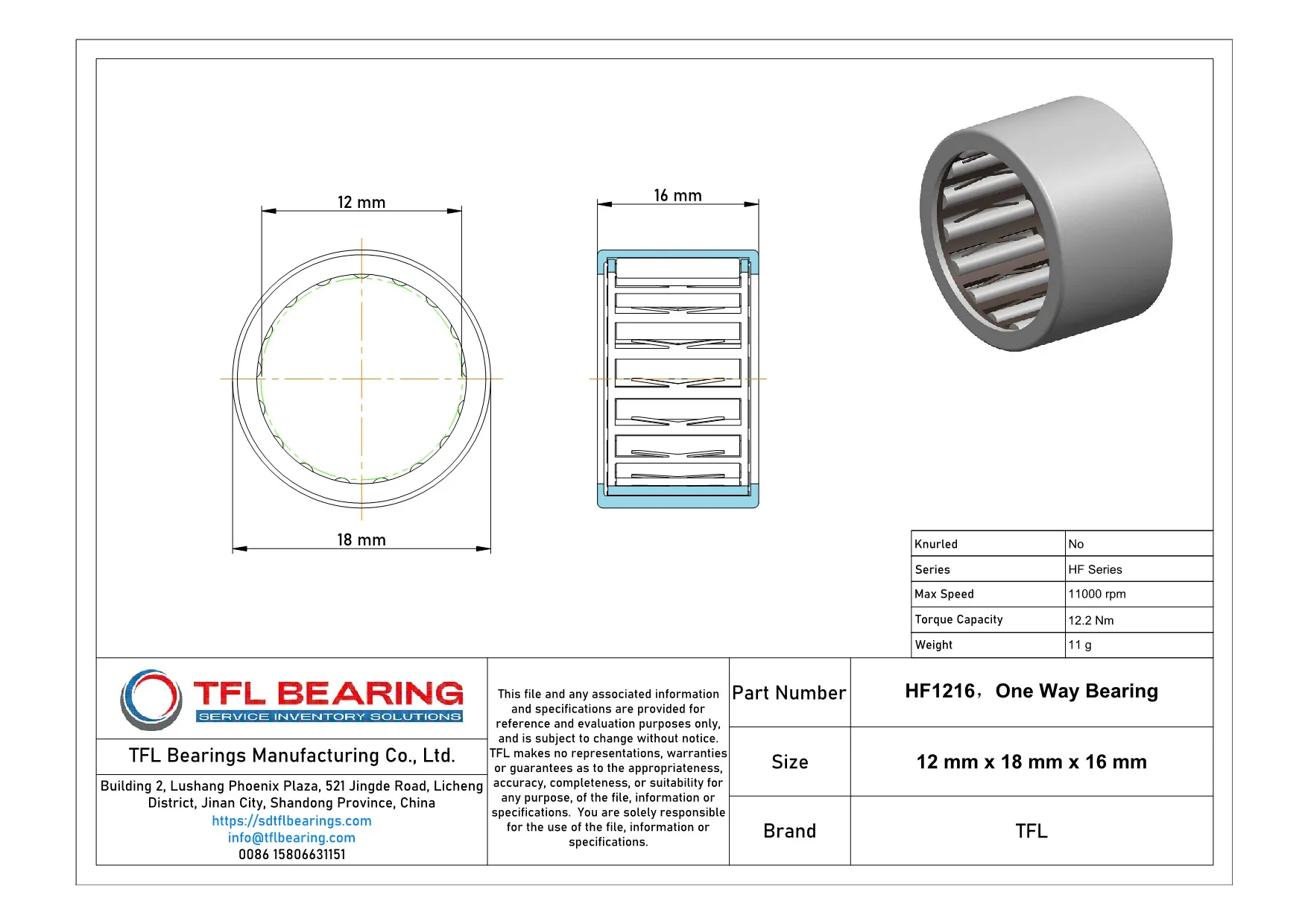

Product Parameters

  • Part Number HF1216
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Outer Dia 18 mm
  • Width 16 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Knurled No
  • Seal Type Open
  • Series HF Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 11000 rpm
  • Torque Capacity 12.2 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 11 g

Features

How Does HF1216 Bearing Achieve High-Speed Performance?
HF1216 Bearing is built with steel rings and needles, ensuring durability and smooth operation at high speeds.
Its maximum speed of 11,000 rpm makes it suitable for demanding applications.
The press-fit shaft mount design provides a secure installation, reducing slippage and wear.
With a torque capacity of 12.2 Nm, it delivers reliable performance in various conditions.
What Makes HF1216 Bearing Suitable for Precision Tasks?
HF1216 Bearing’s single-row needle design offers precise motion control, ideal for intricate mechanisms.
The steel construction ensures strength and longevity, even under continuous use.
Its open seal type allows for easy lubrication, maintaining smooth operation over time.
With a temperature range of -30° to 110°C, it performs well in diverse environments.
Engineered for Reliability: HF1216 Bearing
HF1216 Bearing features a robust steel cage and needles, enhancing its load-bearing capacity.
The lubricated design reduces friction, ensuring efficient performance at high speeds.
Its compact dimensions (12 mm bore, 18 mm outer dia) make it versatile for various applications.
The press-fit mounting ensures stability, minimising the risk of misalignment.
Steel vs Ceramic Bearings: Strengths of HF1216 Bearing
HF1216 Bearing’s all-steel construction provides excellent durability and cost-effectiveness.
The steel needles and cage work together to handle high loads and speeds reliably.
Its open design simplifies maintenance, allowing for easy re-lubrication when needed.
With a wide temperature range, it adapts well to both hot and cold environments.

Application

Common Applications of HF1216 Bearing
HF1216 Bearing is widely used in industrial machinery, especially in conveyor systems where its one-way rotation feature prevents backdriving. The open design and steel construction make it suitable for high-speed operations up to 11000 rpm.
In automotive applications, HF1216 Bearing fits well in gearbox mechanisms, ensuring smooth torque transmission with its 12.2 Nm capacity. Its press-fit mounting simplifies installation in compact spaces.
For automation equipment, HF1216 Bearing’s needle roller design provides reliable performance in robotic arms and assembly lines. The lubricated setup reduces maintenance needs, ideal for continuous operation.
Where Is HF1216 Bearing Used?
You’ll often spot HF1216 Bearing in power tools like drills, where its one-way clutch action enhances safety. The metric dimensions ensure compatibility with various tool designs.
The bearing also works well in fitness equipment, such as exercise bikes, thanks to its smooth rotation and durability. Its lightweight steel construction keeps the equipment easy to handle.
