One Way Bearing HF1012
One Way Bearing HF1012

One Way Bearing HF1012

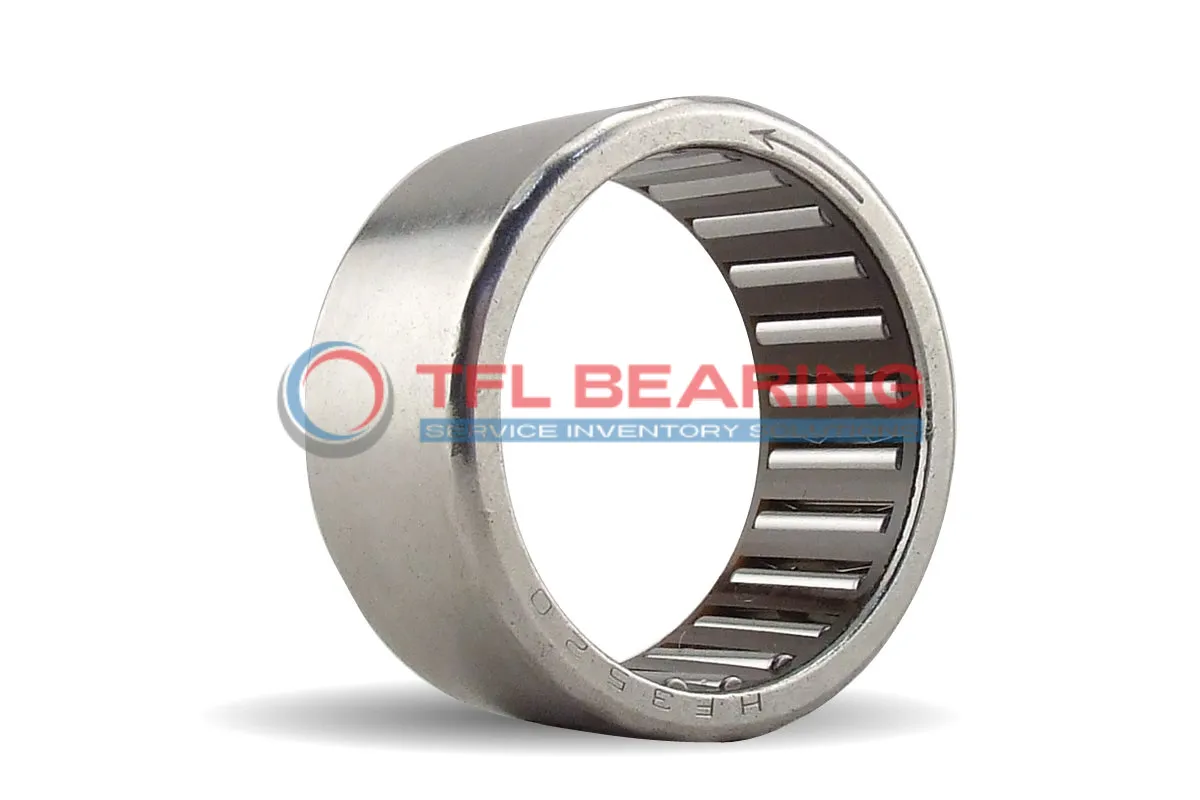

The HF1012 is a one-way needle bearing with a 10mm bore and 14mm outer diameter, crafted from sturdy steel for reliable performance. It supports speeds up to 14000 RPM and handles torque up to 5.3 Nm, making it suitable for high-speed applications.
Its open design allows for easy lubrication, while the press-fit shaft mount ensures a secure installation. The steel cage and needles provide durability under continuous use.
This bearing operates smoothly in temperatures ranging from -30°C to 110°C. It’s interchangeable with INA bearings, offering flexibility for replacements.
Ideal for use in machinery like clutches or conveyor systems where one-directional rotation is needed. Weighing just 4g, it’s lightweight yet robust for its compact size. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

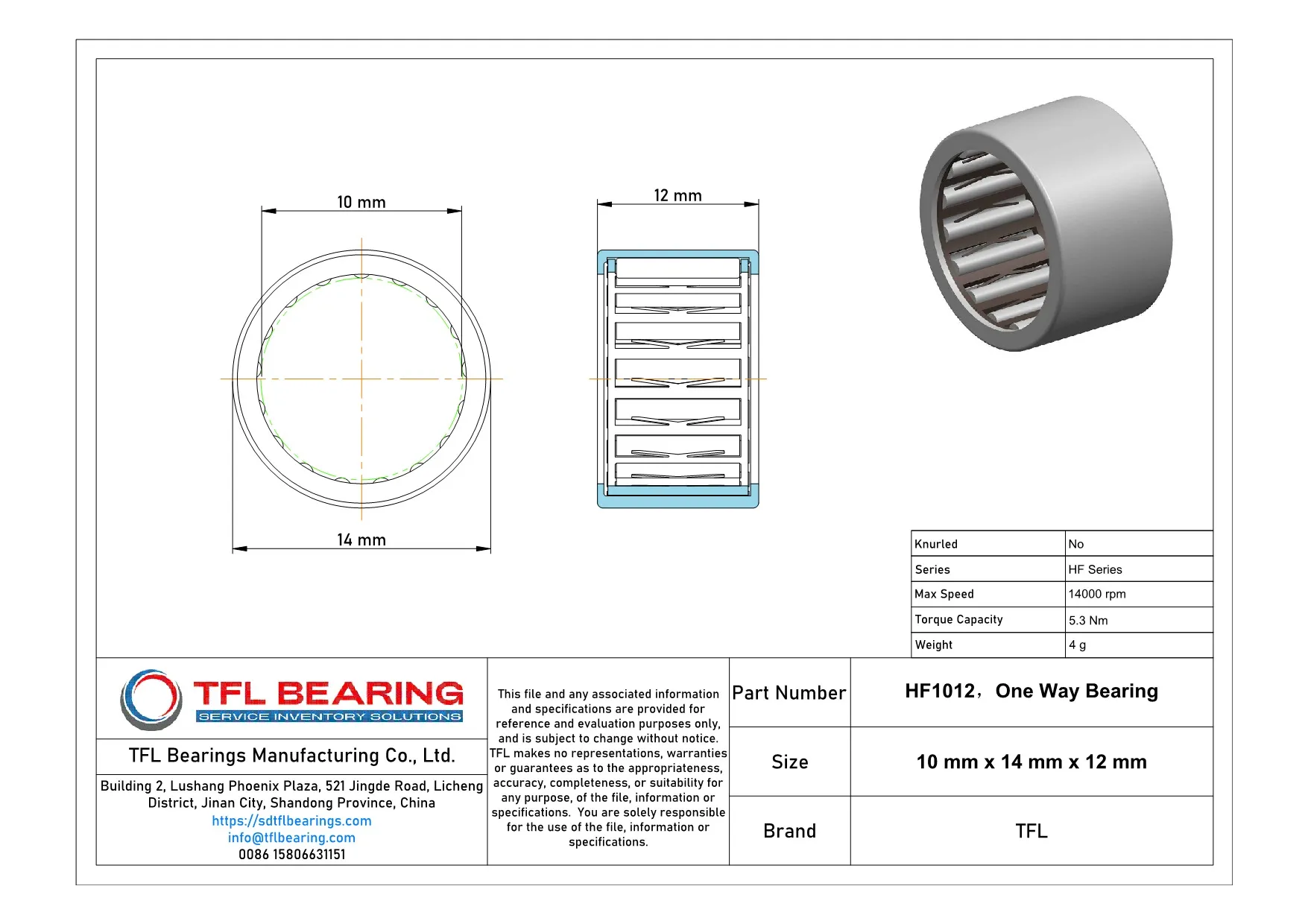

Product Parameters

  • Part Number HF1012
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Outer Dia 14 mm
  • Width 12 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Knurled No
  • Seal Type Open
  • Series HF Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 14000 rpm
  • Torque Capacity 5.3 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 4 g

Features

How Does HF1012 Bearing Achieve High-Speed Performance?
HF1012 Bearing is built with steel rings and needles, ensuring robust performance even at high speeds.
Its maximum speed of 14,000 rpm makes it suitable for demanding applications.
The steel cage maintains needle alignment, reducing friction and wear.
With a torque capacity of 5.3 Nm, it delivers reliable power transmission.

Application

Where Is HF1012 Bearing Used?
HF1012 Bearing is commonly used in industrial machinery, especially in conveyor systems where one-way rotation is needed. Its press-fit design ensures a secure attachment, reducing slippage during operation.

In automotive applications, HF1012 Bearing works well in gearbox mechanisms, providing smooth one-directional movement. The steel construction offers durability, even under high-speed conditions.

For automation equipment, HF1012 Bearing is a reliable choice for robotic arms and indexing tables. Its compact size and high torque capacity make it suitable for precision tasks.

In consumer electronics like printers, HF1012 Bearing ensures consistent paper feed with minimal maintenance. The lubricated design helps maintain performance over long periods.
