One Way Bearing HF0812-R
One Way Bearing HF0812-R

One Way Bearing HF0812-R

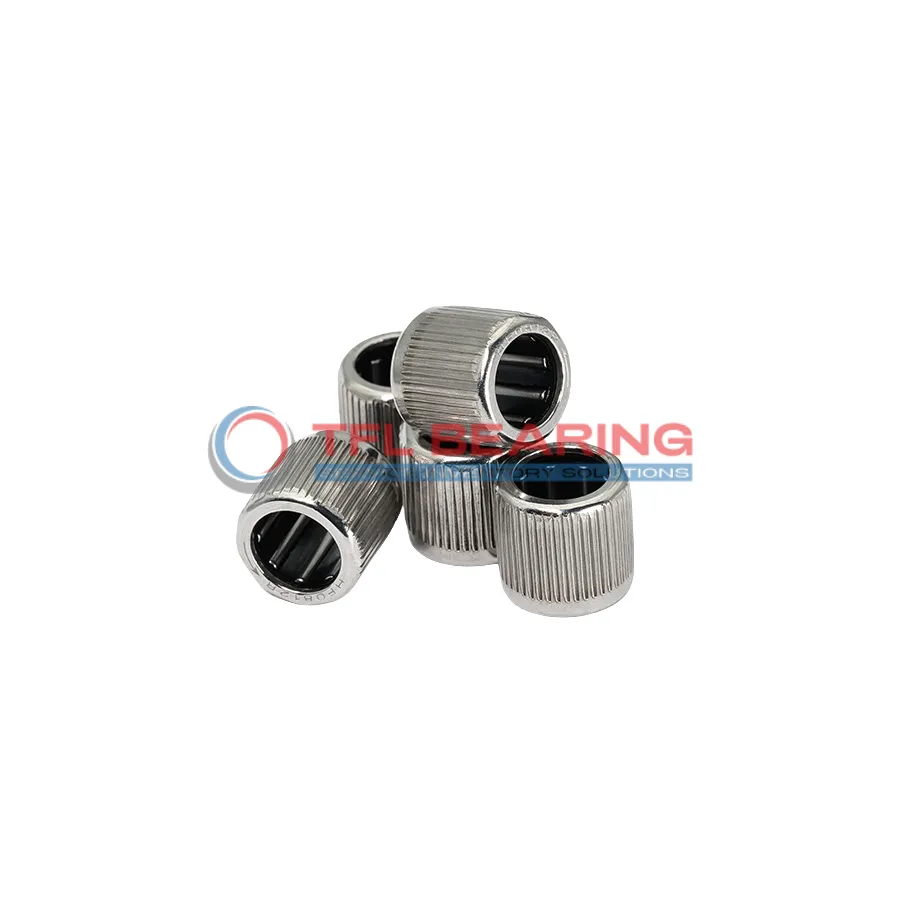

The HF0812-R is a compact one-way needle bearing with an 8mm bore and 12mm outer diameter, crafted from sturdy steel. It spins smoothly at speeds up to 17000 RPM and handles torque up to 1 Nm.
Its knurled design ensures a secure press-fit onto shafts, while the open seal allows for easy lubrication. The steel cage and needles provide reliable performance under frequent use.
This bearing is ideal for applications like small motors or gear mechanisms where one-directional rotation is needed. It works in temperatures from -30°C to 110°C and is interchangeable with INA models.
Weighing just 3.5g, it’s lightweight yet durable for its size. RoHS compliant for safe use in various industries.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number HF0812-R
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 8 mm
  • Outer Dia 12 mm
  • Width 12 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Knurled Yes
  • Seal Type Open
  • Series HF Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Steel
  • Max Speed 17000 rpm
  • Torque Capacity 1 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 3.5 g

Features

How Does HF0812-R Bearing Achieve High-Speed Performance?
HF0812-R Bearing is crafted with steel rings and needles, ensuring durability and smooth operation at high speeds.
Its maximum speed of 17,000 rpm makes it suitable for demanding applications requiring rapid rotation.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a torque capacity of 1 Nm, it handles moderate loads efficiently while maintaining precision.
Why Choose HF0812-R Bearing for Precision Tasks?
HF0812-R Bearing’s needle roller design provides precise movement, ideal for applications needing accuracy.
The knurled construction enhances grip, preventing slippage during operation.
Its open seal type allows for easy lubrication, ensuring consistent performance.
Operating within a temperature range of -30° to 110°C, it adapts to various environmental conditions.
Engineered for Reliability: HF0812-R Bearing
HF0812-R Bearing features a single-row construction, offering stability and reduced friction.
The steel cage and needles work together to minimise wear, extending the bearing’s lifespan.
Lubricated for smooth operation, it requires minimal maintenance over time.
Weighing just 3.5 g, it is lightweight yet robust for its size.

Application

Key Fields for HF0812-R Bearing
HF0812-R Bearing is commonly used in industrial machinery, especially in conveyor systems where its one-way rotation feature prevents backdriving. The press-fit design ensures a secure mount, reducing slippage during operation.
In automotive applications, HF0812-R Bearing fits well in gearbox mechanisms, providing smooth one-directional movement. Its steel construction handles high torque, making it reliable for frequent use.
For automation equipment, HF0812-R Bearing’s needle roller design offers low friction in robotic arms. The knurled surface improves grip, maintaining precision in repetitive tasks.
Around the home, HF0812-R Bearing can be found in electric tools like drills, where its compact size and durability are appreciated. The lubricated design ensures quiet operation, even at high speeds.
