One Way Bearing EWC1012C
One Way Bearing EWC1012C

One Way Bearing EWC1012C

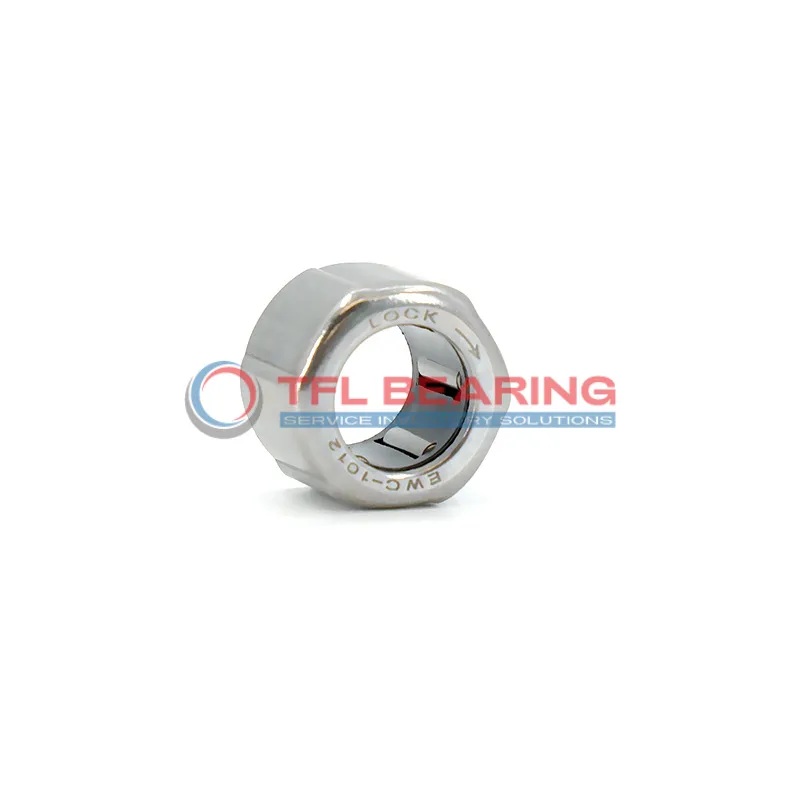

The EWC1012C is a one-way needle bearing with a 10mm bore and 16mm outer diameter, crafted from sturdy steel for reliable performance. It features a press-fit design for secure mounting and handles torque up to 2.35 Nm.
Its open construction allows easy lubrication, while the plastic spring ensures smooth operation. The single-row needle design offers compact efficiency in tight spaces.
This bearing is ideal for applications like conveyor systems or small machinery where one-direction rotation is needed. It works in temperatures from -30°C to 110°C and is interchangeable with INA models.
Weighing just 6.8g, it’s lightweight yet durable. Compliant with RoHS standards, it’s a practical choice for maintenance or replacements.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

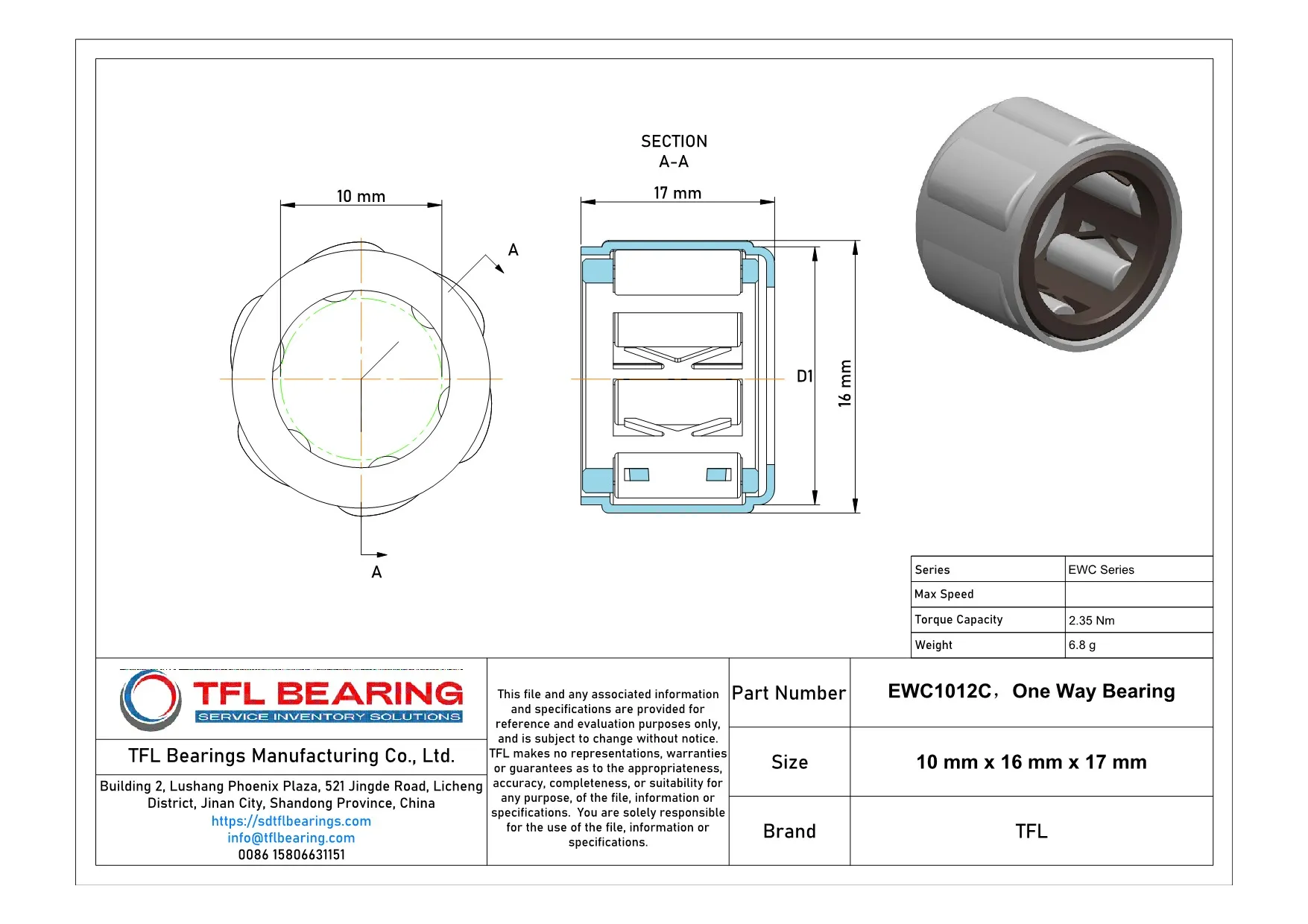

Product Parameters

  • Part Number EWC1012C
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Outer Dia 16 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Seal Type Open
  • Series EWC Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Plastic
  • Torque Capacity 2.35 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 6.8 g

Features

Why Choose EWC1012C Bearing for Precision Tasks?
EWC1012C Bearing features a steel construction, ensuring durability and reliable performance in precision applications.
Its needle roller design provides efficient torque transmission, with a capacity of 2.35 Nm.
The press-fit shaft mount simplifies installation, making it a practical choice for various mechanical setups.
With a temperature range of -30° to 110°C, EWC1012C Bearing performs well in diverse environments.
How Is EWC1012C Bearing Engineered for Reliability?
EWC1012C Bearing’s steel rings and needles enhance its load-bearing capacity and longevity.
The lubricated design reduces friction, ensuring smooth operation over extended periods.
Its open seal type allows for easy maintenance, while the press-fit mounting ensures secure placement.
Weighing just 6.8 g, it offers a lightweight yet robust solution for compact applications.
Designed for Durability: EWC1012C Bearing
EWC1012C Bearing is built with high-quality steel components, providing strength and resistance to wear.
The needle roller configuration ensures efficient power transmission in tight spaces.
Its compliance with RoHS standards makes it an environmentally friendly choice.
The bearing operates reliably within a wide temperature range, suitable for various industrial uses.
Steel vs Ceramic Bearings: Strengths of EWC1012C Bearing
EWC1012C Bearing’s all-steel construction offers excellent durability and cost-effectiveness compared to ceramic alternatives.
The needle rollers and steel cage ensure smooth operation under moderate torque loads.
Its press-fit design allows for quick and secure installation, reducing downtime.
With a compact size and lightweight, it is ideal for applications where space is limited.

Application

Essential Roles of EWC1012C Bearing
EWC1012C Bearing is commonly used in industrial machinery, especially in applications requiring one-way rotation, like conveyor systems and packaging equipment. Its press-fit design ensures a secure mount, reducing slippage during operation.
In automotive applications, EWC1012C Bearing is ideal for components such as starter motors and freewheel assemblies. The steel construction provides durability, while the plastic spring offers smooth engagement.
For automation systems, EWC1012C Bearing works well in robotic arms and indexing tables, where precise one-way motion is needed. The open seal design allows for easy lubrication, maintaining performance over time.
In consumer electronics, EWC1012C Bearing can be found in printers and small appliances, where its compact size and reliable operation are beneficial. The metric dimensions make it compatible with various international designs.
