One Way Bearing EWC1010C
One Way Bearing EWC1010C

One Way Bearing EWC1010C

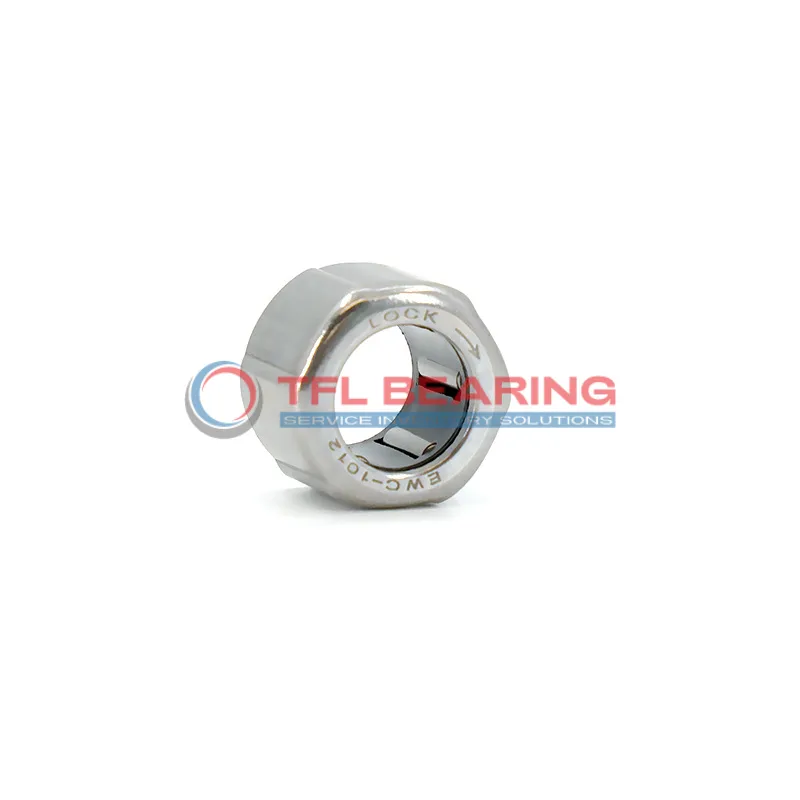

The EWC1010C is a one-way needle bearing with a 10mm bore and 16mm outer diameter, crafted from sturdy steel for reliable performance. It supports torque up to 1.96 Nm and operates smoothly in temperatures from -30°C to 110°C.
Its open design and press-fit mounting make installation straightforward, while the steel cage and plastic spring ensure durability. The bearing comes pre-lubricated for immediate use.
This model is interchangeable with INA bearings, offering a practical replacement option. It’s well-suited for applications like conveyor systems or small machinery where one-directional rotation is needed.
Weighing just 6g, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

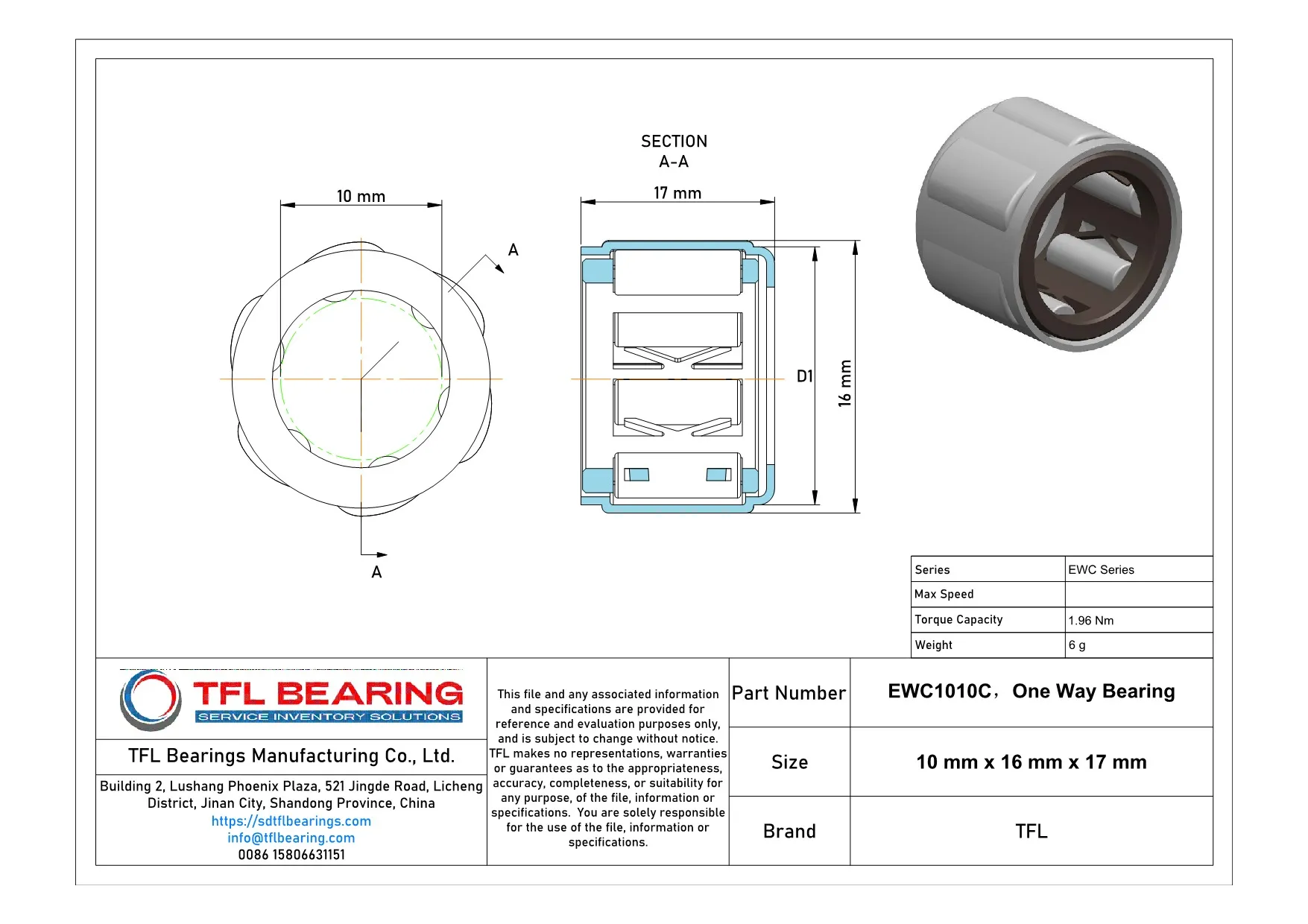

Product Parameters

  • Part Number EWC1010C
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Outer Dia 16 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Seal Type Open
  • Series EWC Series
  • Ring Material Steel
  • Cage Material Steel
  • Needle Material Steel
  • Spring Material Plastic
  • Torque Capacity 1.96 Nm
  • Lubrication Lubricated
  • Shaft Mount Type Press Fit
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 6 g

Features

How Does EWC1010C Bearing Ensure Smooth Operation?
EWC1010C Bearing features a steel construction, providing durability and reliable performance in one-way applications.
Its press-fit shaft mount design ensures easy installation and secure positioning.
The needle roller design of EWC1010C Bearing reduces friction, allowing for smooth rotation under load.
With a torque capacity of 1.96 Nm, it handles moderate loads efficiently.
EWC1010C Bearing operates within a temperature range of -30° to 110°C, making it suitable for various environments.
Its lubricated design minimises wear, ensuring consistent performance over time.

Application

Where Is EWC1010C Bearing Used?
EWC1010C Bearing is commonly used in industrial machinery, especially in conveyor systems where its one-way rotation feature ensures smooth operation. Its press-fit design makes installation straightforward, saving time during assembly.
In automotive applications, EWC1010C Bearing is found in gearboxes and starter motors, providing reliable performance under frequent start-stop conditions. The steel construction offers durability, even in high-stress environments.
For automation equipment, EWC1010C Bearing is ideal for robotic arms and indexing tables, where precise movement control is essential. The lubricated design helps maintain performance over long periods of use.
In consumer electronics, EWC1010C Bearing can be used in printers and small appliances, where its compact size and efficiency are beneficial. The lightweight design also contributes to energy savings in portable devices.
