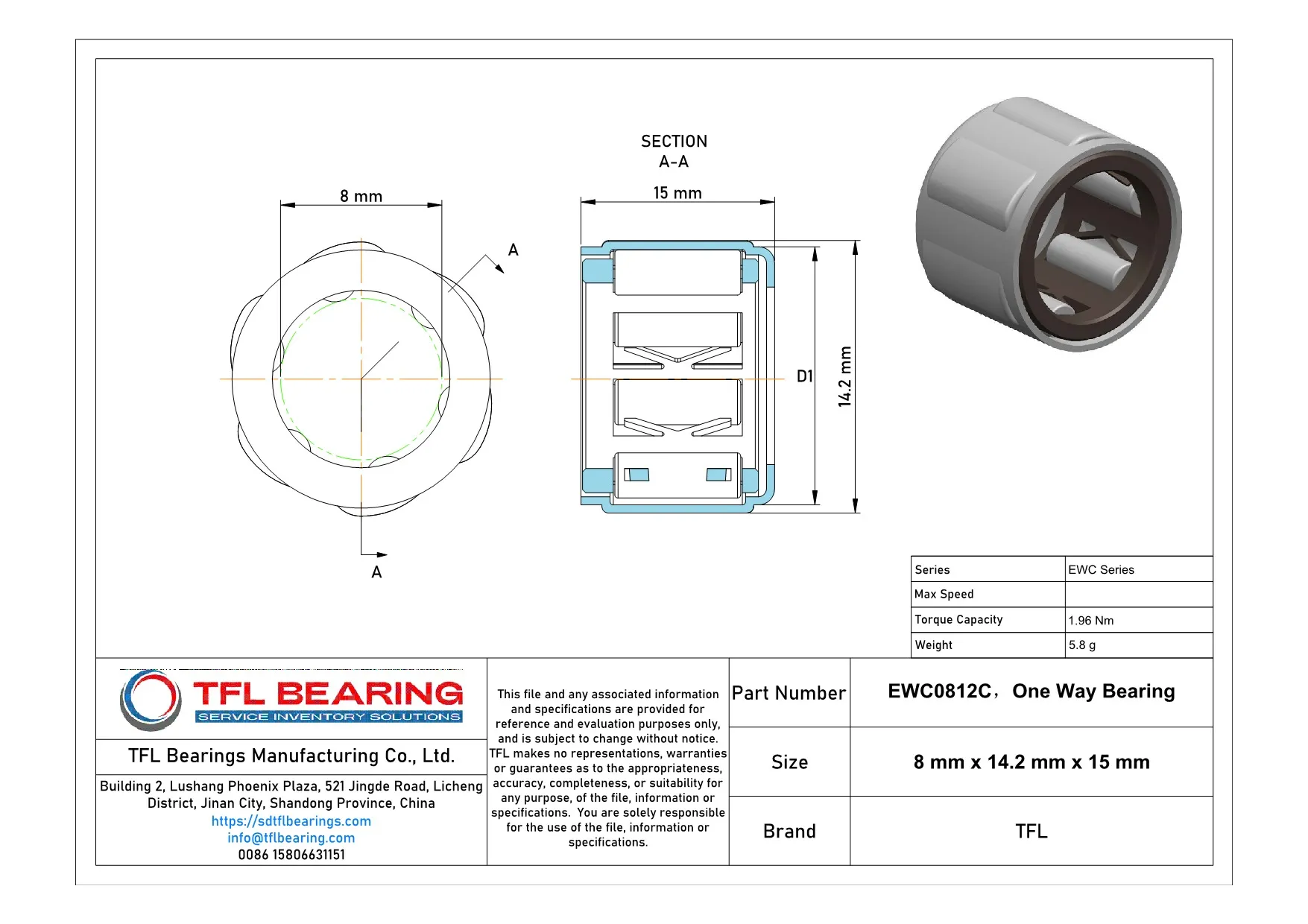

The EWC0812C is a one-way needle bearing with an 8mm bore and 14.2mm outer diameter, crafted from sturdy steel. Its compact 15mm width makes it suitable for tight spaces, while the press-fit design ensures a secure shaft mount.
This bearing handles torque up to 1.96 Nm and operates smoothly in temperatures from -30°C to 110°C. The open seal allows for easy lubrication, and the plastic spring ensures quiet operation.
Ideal for applications like conveyor systems or small machinery where one-directional movement is needed. Its lightweight 5.8g design doesn’t compromise on durability.
Compliant with RoHS standards, it’s a reliable choice for replacements, interchangeable with INA bearings. Perfect for engineers needing a simple, efficient solution.
"*" indicates required fields
How Does EWC0812C Bearing Ensure Smooth Operation?
EWC0812C Bearing features a steel construction, providing durability and reliable performance in various applications.
Its needle roller design enhances load distribution, reducing friction for smoother operation.
The press-fit shaft mount ensures secure installation, minimising movement during use.
With a torque capacity of 1.96 Nm, EWC0812C Bearing handles moderate loads efficiently.
Lubrication is pre-applied, reducing maintenance needs and extending the bearing’s service life.
It operates effectively within a temperature range of -30° to 110°C, suitable for diverse environments.
Essential Roles of EWC0812C Bearing
EWC0812C Bearing is commonly used in industrial machinery, especially in conveyor systems where one-way rotation is needed. Its press-fit design ensures a secure attachment, reducing slippage during operation.
In automotive applications, EWC0812C Bearing fits well in gear mechanisms and starter motors, providing reliable one-directional movement. The steel construction offers durability under frequent use.
For automation equipment, EWC0812C Bearing works efficiently in robotic arms and indexing tables. Its compact size and lightweight design make it suitable for precision movements.
In consumer electronics, EWC0812C Bearing can be found in printers and small appliances. The lubricated needles ensure smooth operation over time.
